3 Replacing Assembly Units
Removing the printhead
Turn lever (10) counterclockwise to lift the printhead.
Remove labels and transfer ribbon from the printer.
Remove Allen key (11) from its retainer.
Lightly keep printhead mounting bracket (9) on the print roller with one nger and screw out screw (8) with the
Allen key and remove it and the washer.
Swivel printhead mounting bracket (9) upward.
Remove printhead from the printhead mounting bracket (9) if necessary.
Loosen both plug connections (2, 3) on the printhead and set printhead down on a clean, soft surface.
Installing the printhead
Attach plug connections (2, 3).
Position printhead in printhead mounting bracket (9) in such a way that the pins (6) are secured in the corre-
sponding holes in the printhead mounting bracket (9).
Lightly keep printhead mounting bracket (9) on the print roller with one nger and check for correct positioning of
the printhead mounting bracket (9).
Screw in screw (8) with washer with the Allen key and tighten it.
Reload labels and transfer ribbon.
3.3.2 Replacing the Printhead A6+, A8+
1 Printhead
2 Plug connection
3 Plug connection
4 Threaded hole
5 Printing line

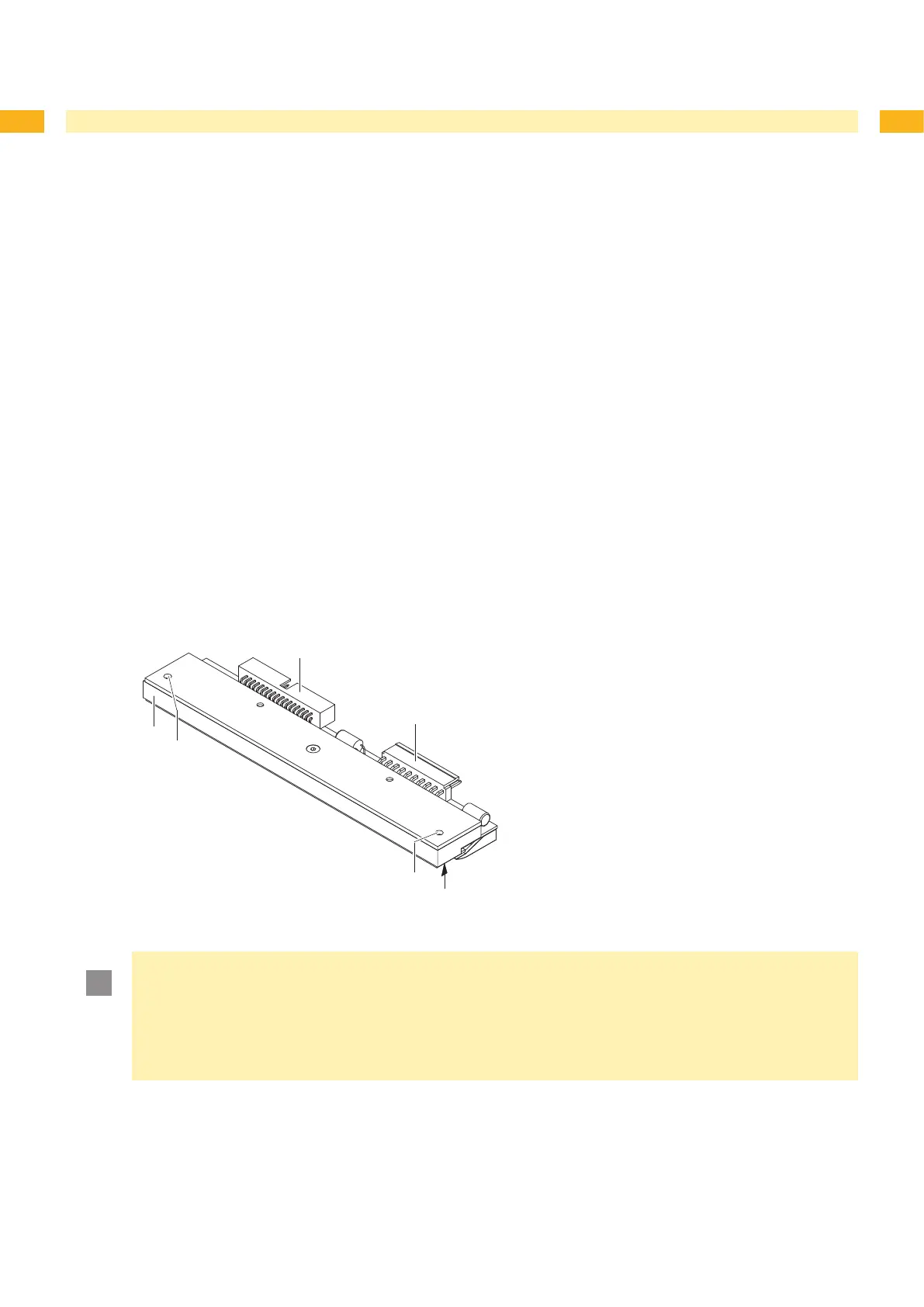

Fig. 6 Structure of the printhead A6+, A8+
Attention!
The printhead can be damaged by static electricity discharges and impacts!
Set up printer on a grounded, conductive surface.
Ground your body, e.g. by wearing a grounded wristband.
Do not touch contacts on the plug connections (2, 3).
Do not touch printing line (5) with hard objects or your hands.
