6 6
2 Cleaning
2.1 Cleaning by the Operator
The following cleaning work is described in the “Operator's Manual“:
cleaning the device
cleaning the printhead
cleaning the print roller
cleaning the label sensor A2+ A4+
2.2 Cleaning the Label Sensor A6+, A8+

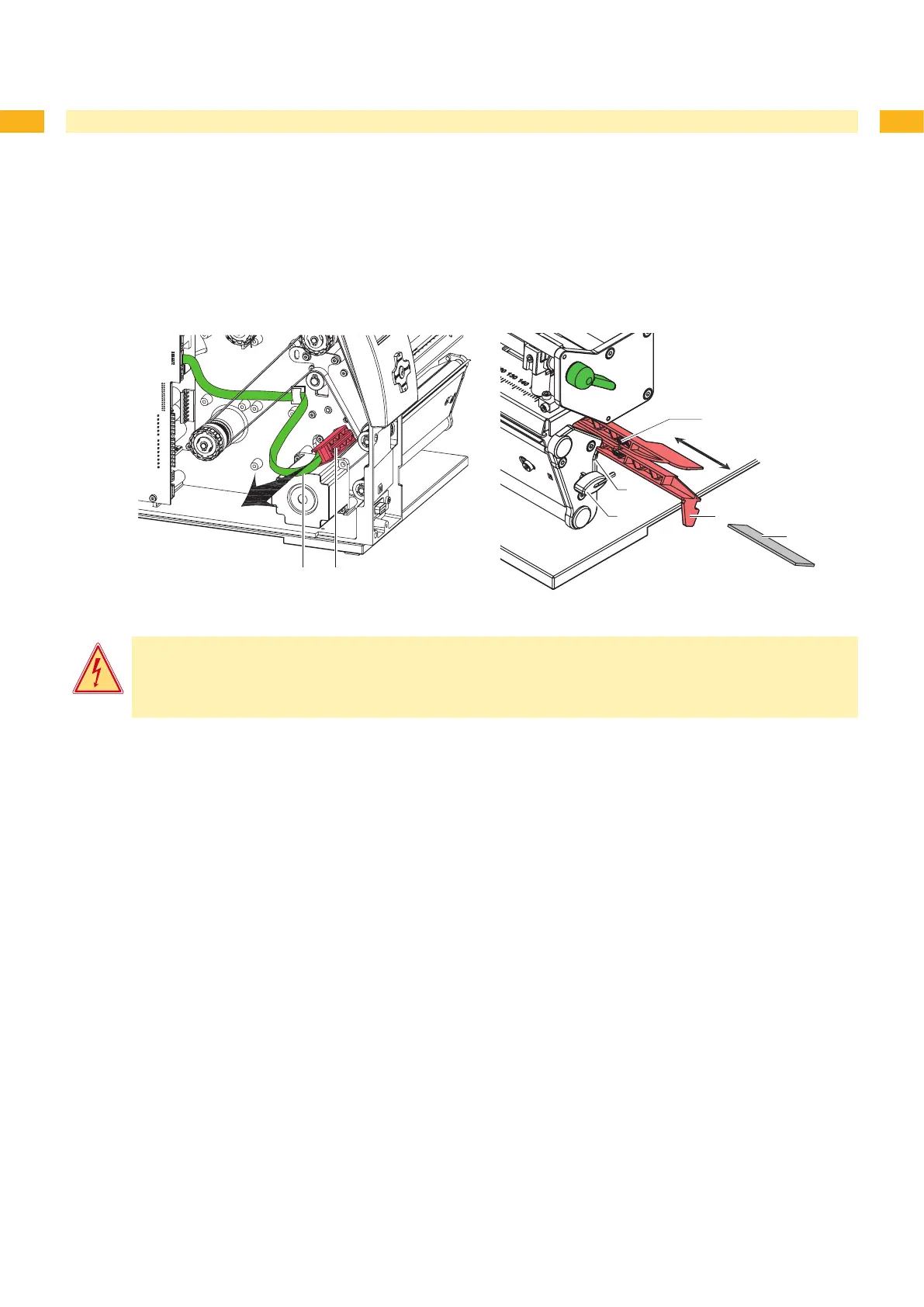

Fig. 1 Cleaning the label sensor A6+, A8+
Danger!
Risk of death via electric shock!
Before opening the housing cover, disconnect the device from the mains supply and wait at lease one
minute until the power supply unit has discharged.
Remove media from the printer.
Remove the Allen key (7) from its retainer.
Remove the rear cover of the printer.
Slide the label sensor assembly onto the tab (5) toward the rear cover until it stops.
Unplug the cable (2) from the plug on the rear end of the label sensor (1).
Press the latch (6) and slowly pull label sensor outward via the tab (5). That way the distance plate (3) is pushed
out of label sensor guide.
Clean label sensor and sensor units (4) with brush or cotton swab soaked in pure alcohol.
Push label sensor back via tab (5) .
Press the latch (6) and push the distance plate (3) into the guide of the label sensor.
Connect the cable (2) to the label sensor (1).
Pull the label sensor (1) via the tab (5) as far as possible toward the cover side.
This prevents the cable (2) from being pinched when installing the rear cover.
Install the rear cover of the printer.
Insert the Allen key (7) into its retainer.
•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
