3.4 Replacing the Print Roller and Rewind Assist Roller
Removing the side plate
Turn lever (1) counterclockwise to lift the
printhead.
Lift the pinch roller (5) off the rewind assist
roller.
Remove labels and transfer ribbon from the
printer.
Loosen screws (4) on plate (6) with Allen key
by several turns and remove plate (6).
Unscrew screws (3abc) of the side plate (2)
with Allen key.
At A8+ a pin with a hexagonal shaft is
mounted instead of the screw (3b). Loosen
the pin with a jaw wrench.
Remove side plate (2).
1.
2.
3.
4.
5.
6.

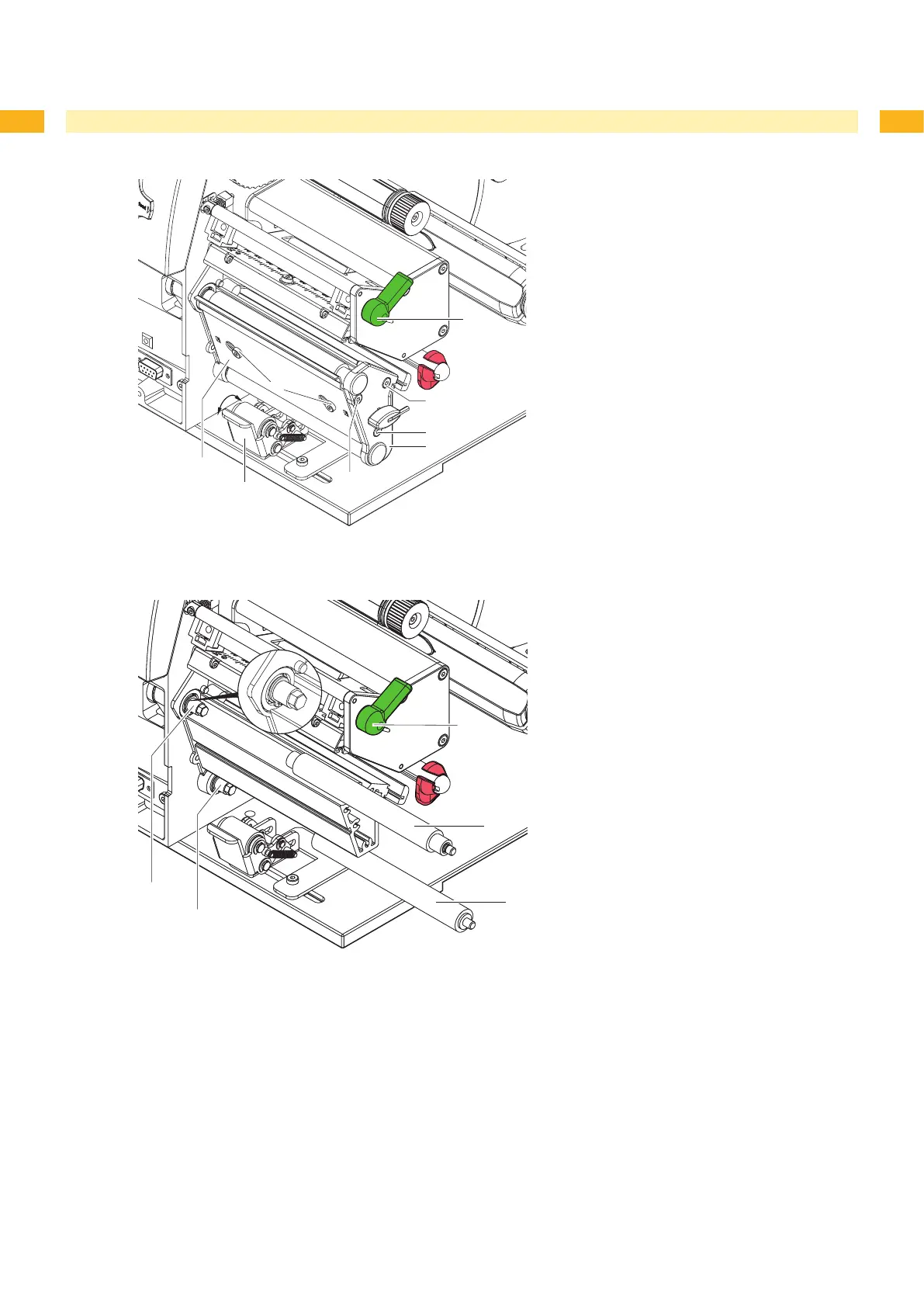

Fig. 9 Removing the side plate
Removing and installing rollers
Pull print roller (7) and rewind assist roller (8)
from the shafts (9, 10) on the housing.
Clean shafts (9, 10) of the rollers (see
expanded view at shaft (10)).
Slide print roller (7) and rewind assist roller (8)
onto their respective shafts and turn slightly
until the hexagon of the shaft engages in the
hexagon socket of the print roller.
Set side plate (2) in place and screw it down
with the screws (3abc) by tightening the
screws in order, i.e. a, b then c.
Set plate (6) in place and tighten screws (4)
with Allen key.
1.
2.
3.
4.
5.
Fig. 10 Removing and installing rollers
3 Replacing Assembly Units
