13
4 Loading Material
4.2 Loading Labels from Roll
4.2.1 Positioning the Label Roll on the Roll Retainer
4
3
7
8
6
1
2
5
9

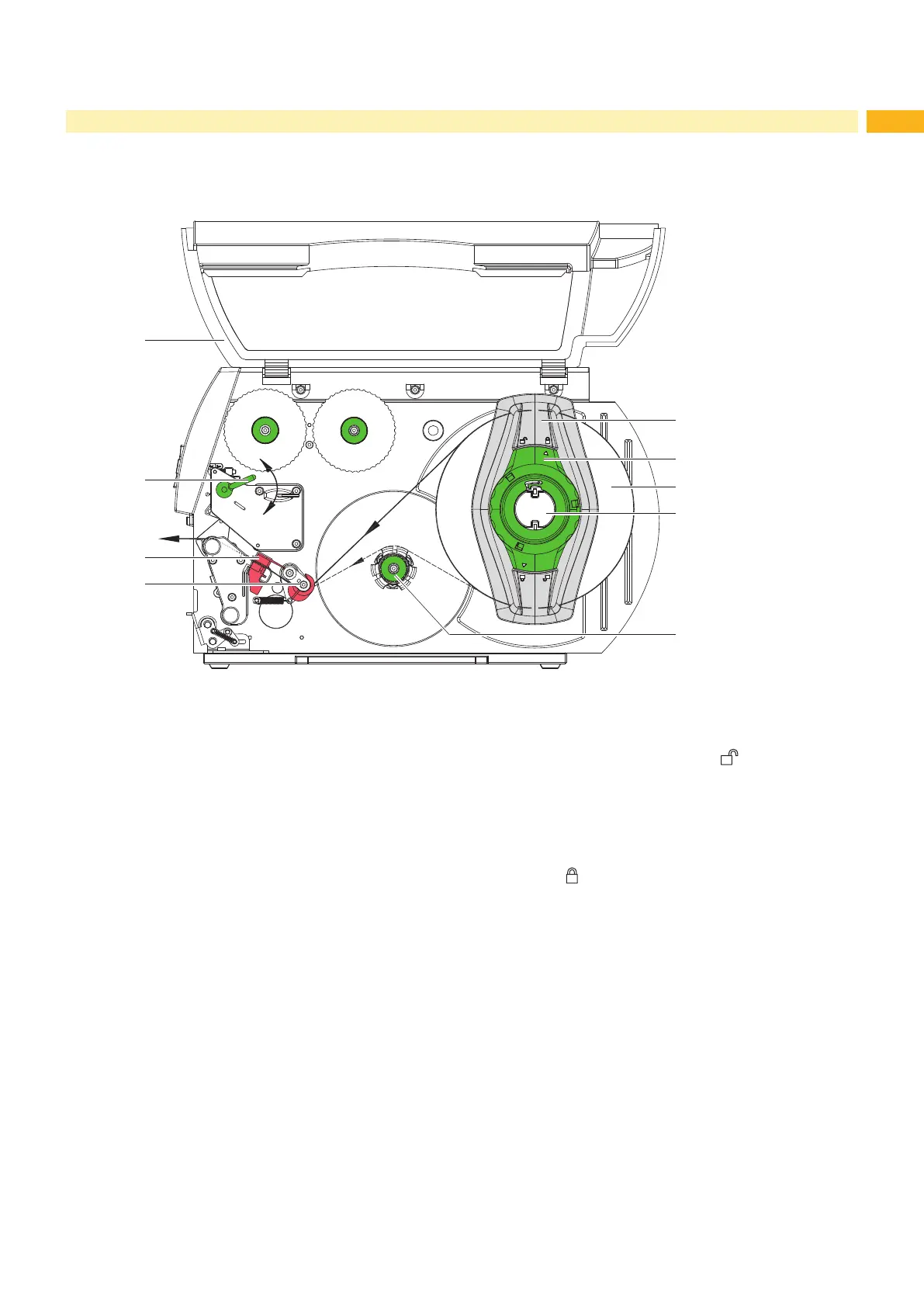

Fig. 7 Loading labels from roll
1. Open cover (9).
2. Turn ring (2) at the margin stop (1) counterclockwise, so that the arrow points to the symbol , and thus release
the margin stop.
3. Remove the margin stop (1) from the roll retainer (4).
4. Load label roll (3) on the roll retainer in such a way that the labels can be inserted into the printhead in the right
position. The printing side of the labels must be visible from above.
5. Re-mount the margin stop (1) onto the roll retainer (4). Push the margin stop (1) to the roll until it stops.
6. Turn ring (2) clockwise, so that the arrow (10) points to the symbol , and thus x the margin stop (1) on the roll
retainer (4).
7. Supplying longer label strips:
For Peel-Off or Rewind mode: approx. 60 cm
For Tear-Off mode: approx. 40 cm
4.2.2 Inserting a Label Strip into the Printhead
1. Turn lever (8) counterclockwise to lift the printhead.
2. Push guide ring on axis (6) all the way out.
3. Guide label strip to the print unit above the internal rewinder (5).
4. Guide label strips below the axis (6) and through the label sensor (7) in such a way that it exits the print unit
between the printhead and the print roller.
5. Push guide ring on axis (6) against the outer edge of the label strip.
To Next Page
