6 6
2.1 Device Overview
2
4
5
6
7
3
1
8
9
10
1 Cover
2 Margin stop
3 Roll retainer
4 Ribbon supply hub
(Transfer printers only)
5 Ribbon take-up hub
(Transfer printers only)
6 Internal rewinder
(Peel-off printer version only)
7 Print mechanics
8 Mounting area for accessories incl.
peripheral connector
9 Navigator pad
10 Display

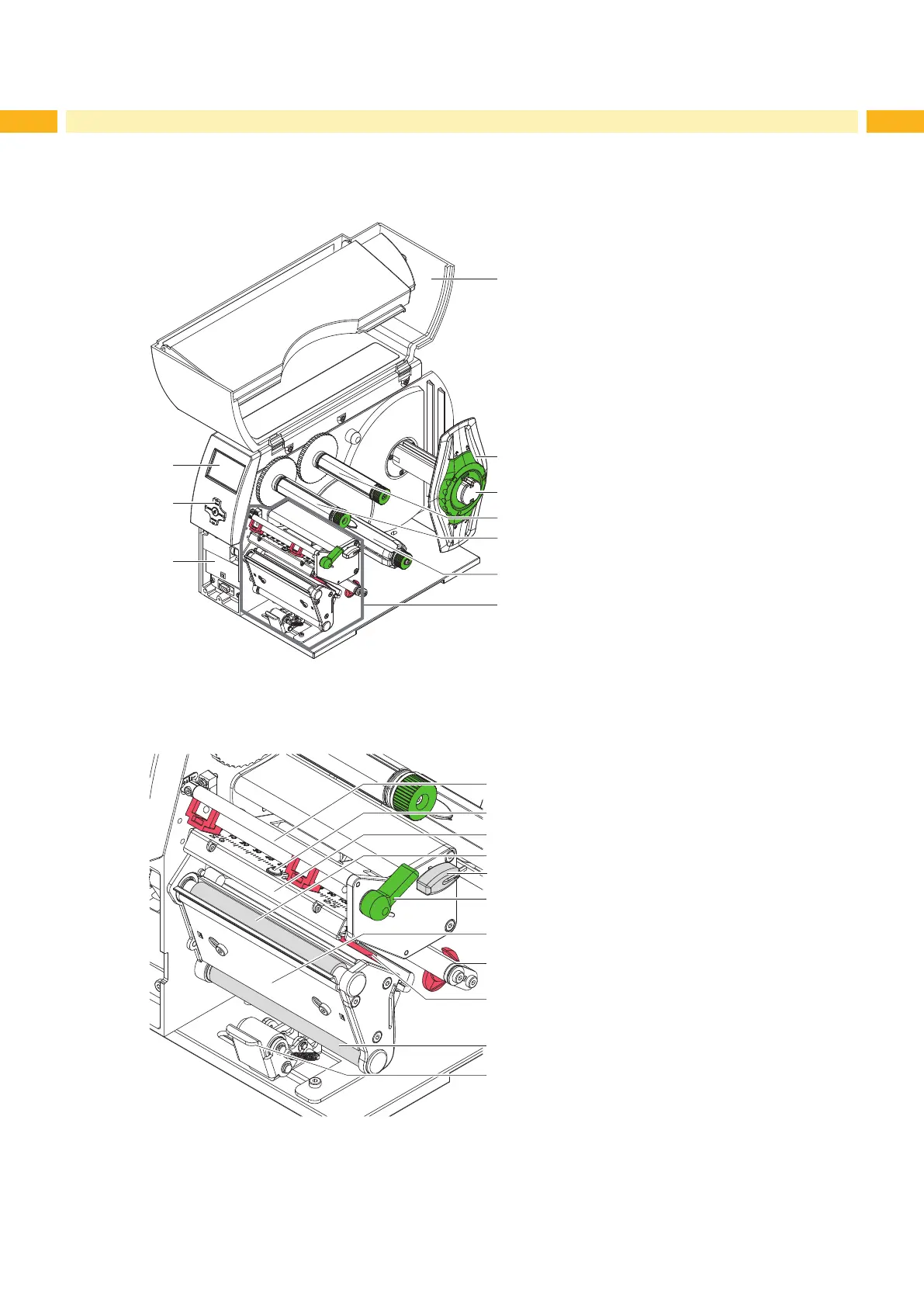

Fig. 1 Overview
12
13
14
18
19
16
11
20
21
15
17
11 Ribbon deection
12 Printhead locking screw
13 Printhead retainer with printhead
14 Print roller
15 Allen key
16 Printhead locking lever
17 Dispense plate
18 Axle with guide ring
19 Label sensor
20 Rewind assist roller
(Peel-off printer version only)
21 Locking system
(Peel-off printer version only)
Fig. 2 Print mechanics
2 Installation
