4 Loading Material
4.7 Removing and Installing the Rewind Guide Plate, Dispense Plate or Tear-off Plate
To convert the printer for use in another operating mode, a rewind guide plate, a dispense plate or a tear-off plate
may need to be installed.
Attention!
For printer versions with a locking system on the rewind assist roller, the locking system must be removed
for operation in rewind mode before installation of the rewind guide plate ( 4.8 on page 23).

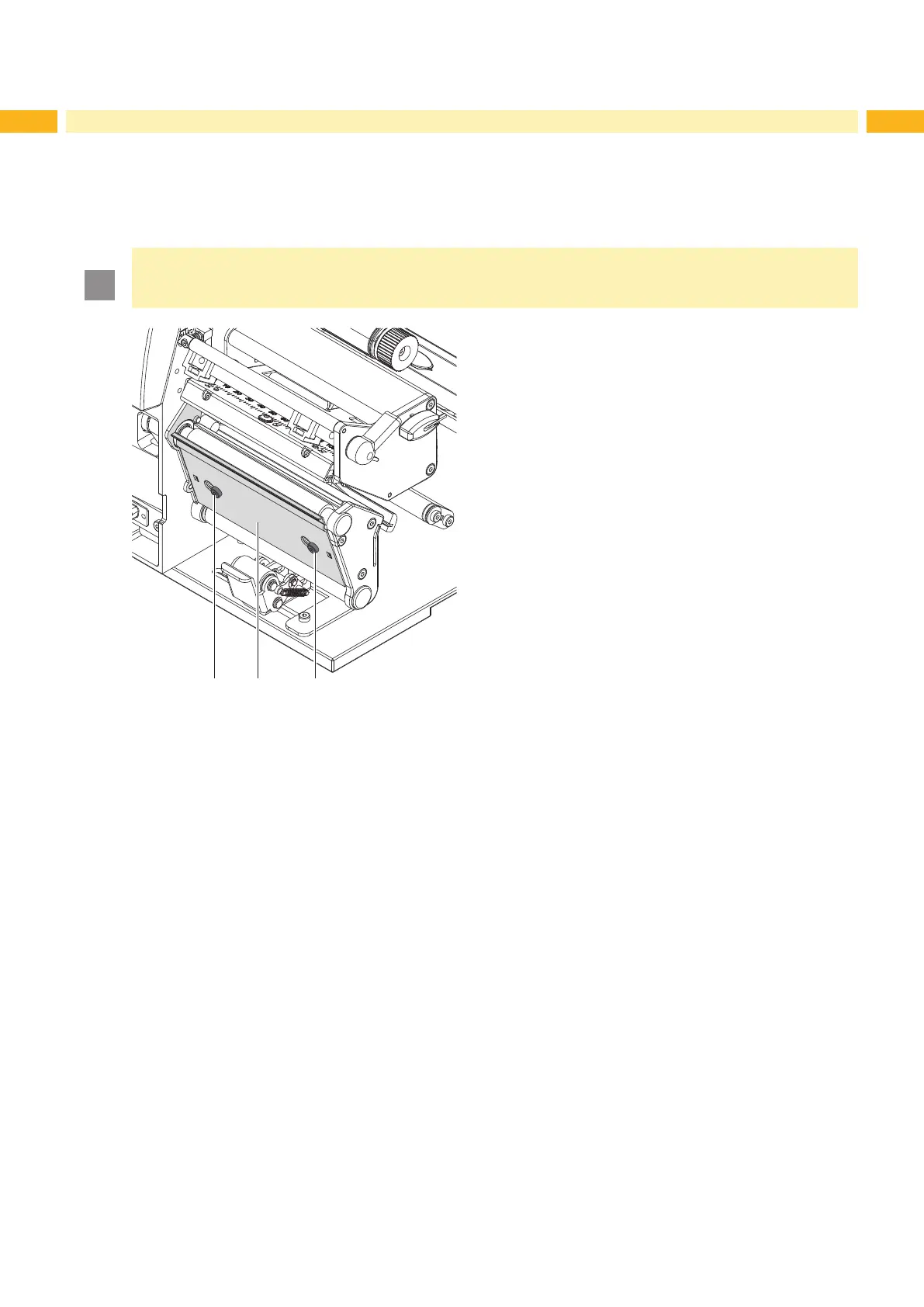

Fig. 16 Removing and installing the rewind guide plate, dispense plate or tear-off plate
Removing a plate
1. Loosen screws (2) several turns.
2. Slide plate (1) to the right and remove it.
Installing a plate
1. Place plate (1) onto the screws (2) and slide to the left completely.
2. Tighten screws (2).
