19
4.4 Loading Fanfold Labels
6
1
2
3
4
5

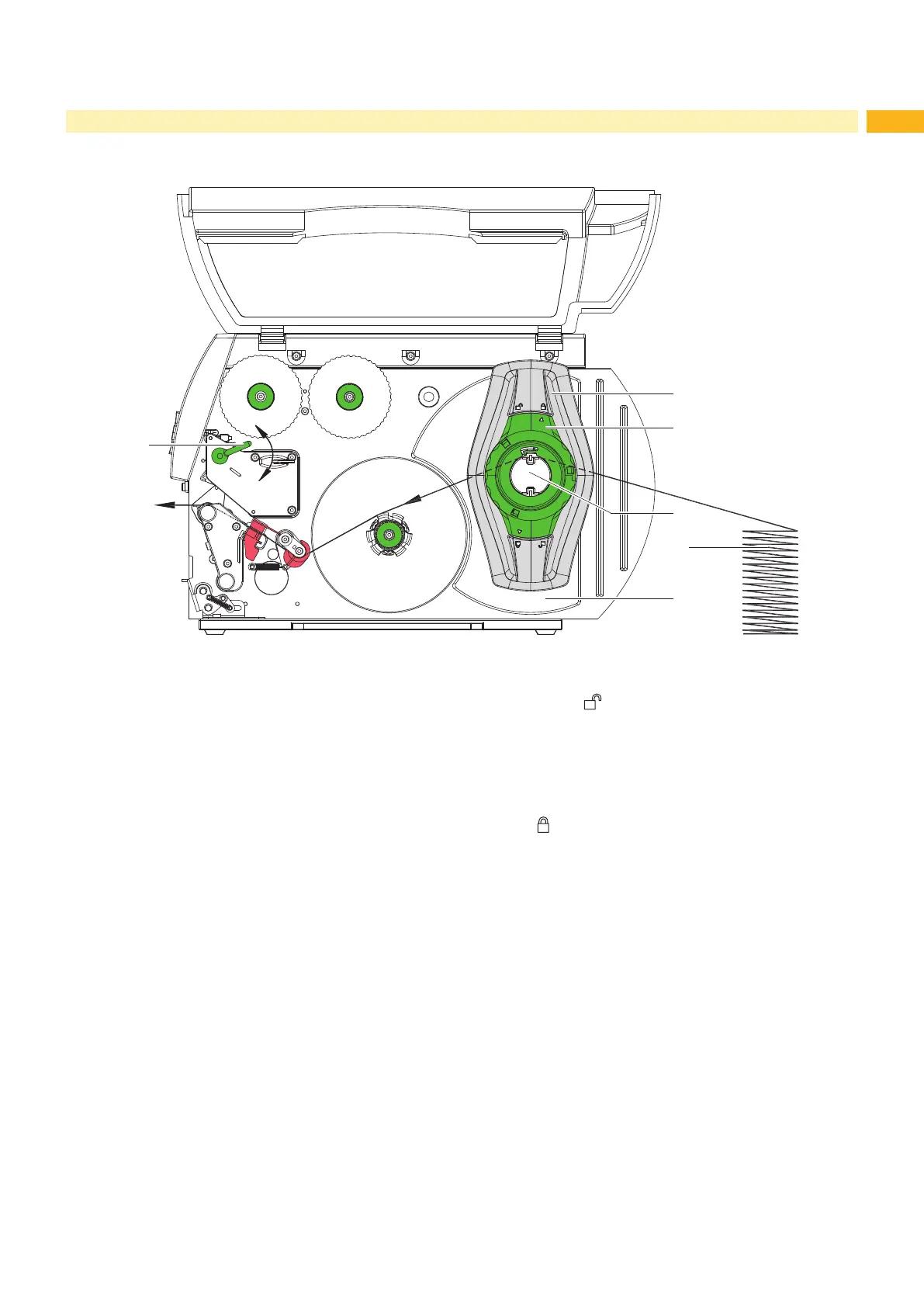

Fig. 13 Feed path of fanfold labels
1. Turn ring (2) counterclockwise, so that the arrow points to the symbol , and thus release the margin stop (1).
2. Move the margin stop (1) outwards as far as possible.
3. Position label stack (4) behind the printer. Ensure that the labels on the strip are visible from above.
4. Guide label strip to print unit via the roll retainer (3).
5. Move the margin stop (1) against the media strip until chassis (5) and margin stop (1) touch the media strip
without clamping or bending it.
6. Turn ring (2) clockwise, so that the arrow points to the symbol , and thus x the margin stop (1) on the roll
retainer (3).
7. Insert label strip into printhead ( 4.2.2 on page 13).
8. Set label sensor ( 4.2.3 on page 14).
9. Set head locking system ( 4.2.6 on page 17).
10. Turn lever (6) clockwise to lock the printhead.
4 Loading Material
