8 Media
8.1 Media Dimensions
Labels Endless material

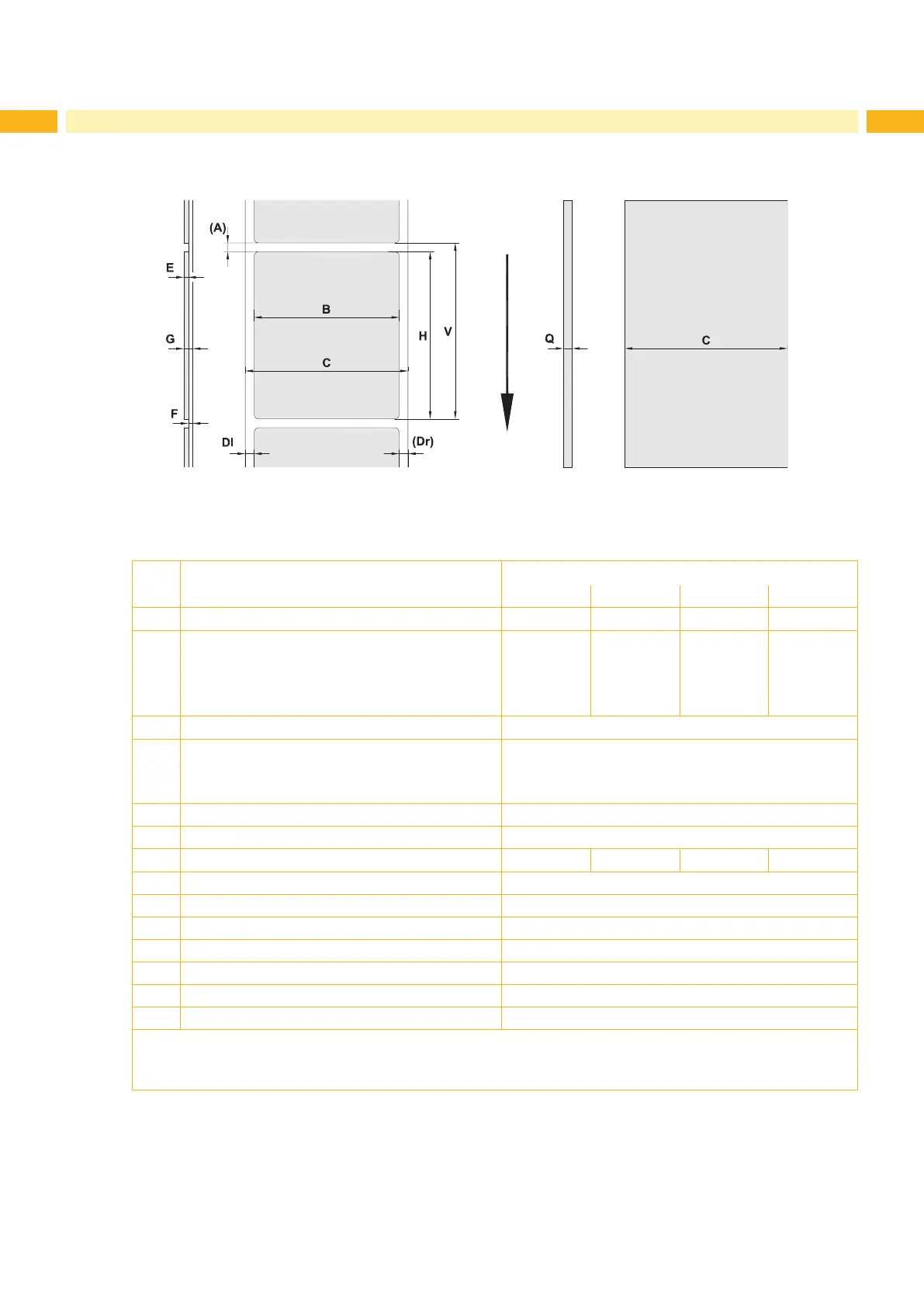

Fig. 19 Label / endless material dimensions
Dim. Designation Dim. in mm
A2
+
A4
+
/ A4.3
+
A6
+
A8
+
B Label width 4 - 63 4 - 116 50 - 176 50 - 220
H
Label height with printhead 203 dpi
with printhead 300 dpi
with printhead 600 dpi
in peel-off mode
-
4 - 5000
4 - 2000
12 - 200
4 - 5000
4 - 4000
4 - 1000
12 - 200
6 - 4000
6 - 3000
-
25 - 200
-
10 - 2000
-
-
- Tear-off length > 30
- Cut length
with cutter
with perforation cutter
> 2
> 12
- Perforation length > 2
A Label distance > 2
C Width of liner or endless material 25 - 67 25 - 120 50 -180 50 - 235
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Label thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,8
Q Thickness endless material 0,03 - 0,8
V Label feed > 6
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Note the bending stiffness ! Material must be exible to follow the radius of the print roller !
Table 8 Label / endless material dimensions
Feed direction
