4 Loading Material
4.1.4 Guiding the Liner to the Internal Rewinder

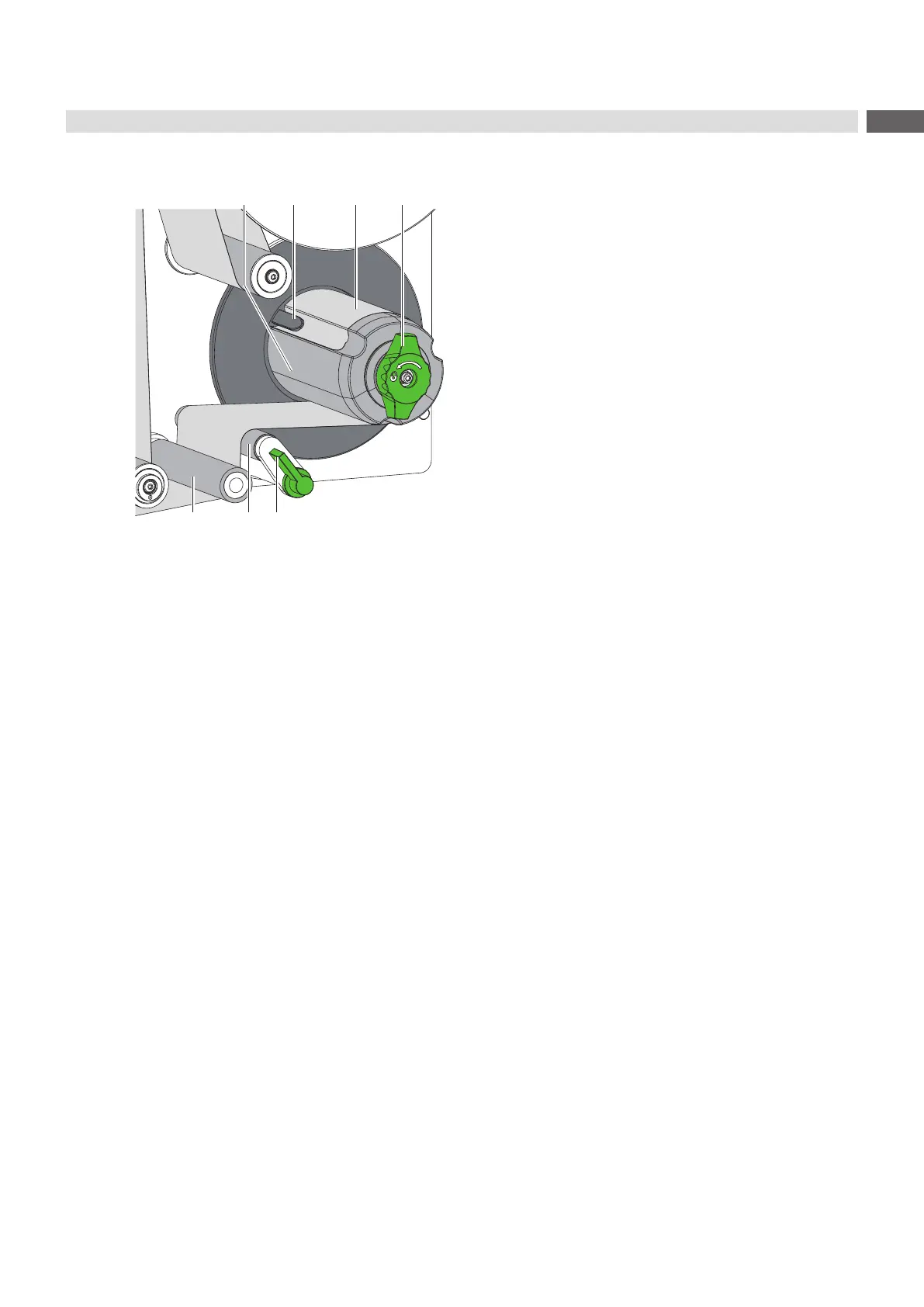

Figure 15 Guiding the liner to the internal rewinder
1. Turn the lever (7) clockwise to lift the locking system (6) from the transport roller (5).
2. Holdtherewinder(1)rmlyandturntheknob(4)clockwiseuntilitstops.
3. Guide the liner coming from the peel-off edge around the transport roller (5) and the locking system (6) to the
internal rewinder (1).
4. Push the liner under a bracket (2) of the rewinder (1) and turn the knob (4) counterclockwise until it stops.
Therewinderisfullyspread,thusgrippingthelinerrmly.
5. Turn the rewinder (1) counterclockwise to tighten the liner.
6. Turn the lever (7) counterclockwise to lock the transport system (5,6).
