CAB HERMES Q2L User Manual

28 28

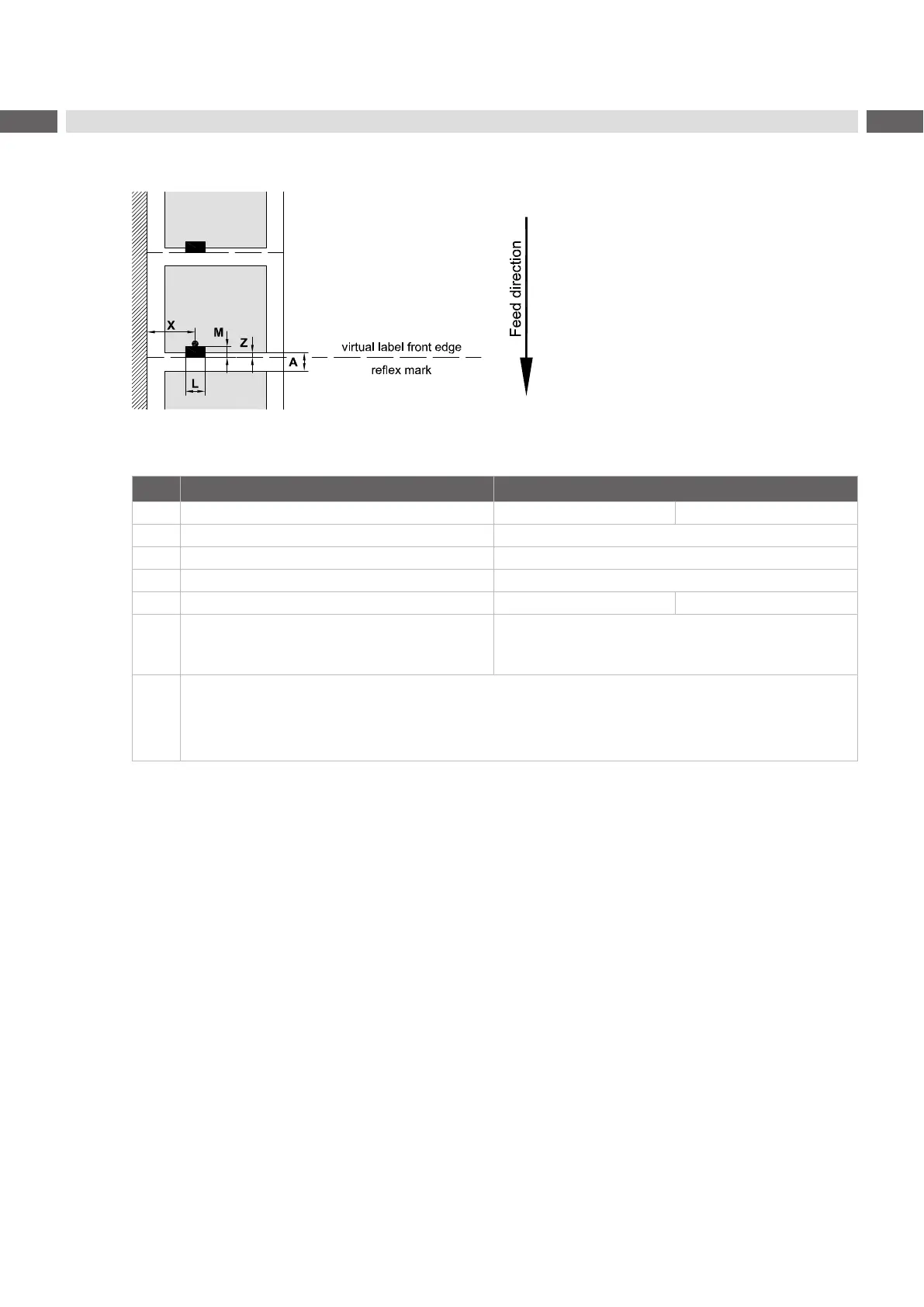

8.3 Reex Mark Dimensions
Figure 24 Reexmarkdimensions
Dim. Designation Dim. in mm
HERMES Q2 HERMES Q4 / Q4.3 / Q6.3
A Label distance > 2
L
Widthofreexmark > 5
M
Heightofreexmark 3 - 10
X Distance mark - material edge 2 - 26 2 - 60
Z Distance virtual label front edge - actual label
front edge
 Adjust software settings
0 up to A / recomm. : 0
• Reexmarksmustbeonthebacksideofthematerial(liner).
• Labelsensorforreexmarksonthetopsideonrequest.
• Specicationisvalidforblackmarks.
• Recognition of colored marks may fail.  Preliminary tests are needed.
Table 10 Reexmarkdimensions
8 Labels
