4 Replacing Assembly Units
4.4 Replacing the Label Sensor
Note!
Soiling of the label sensor can also cause malfunctions.
Before replacing the label sensor, check whether it is soiled and clean it if necessary 3.2 on page 7.
Danger!
Risk of death via electric shock!
Before opening the rear cover, disconnect the device from the mains supply and wait at lease one
minute until the power supply unit has discharged.

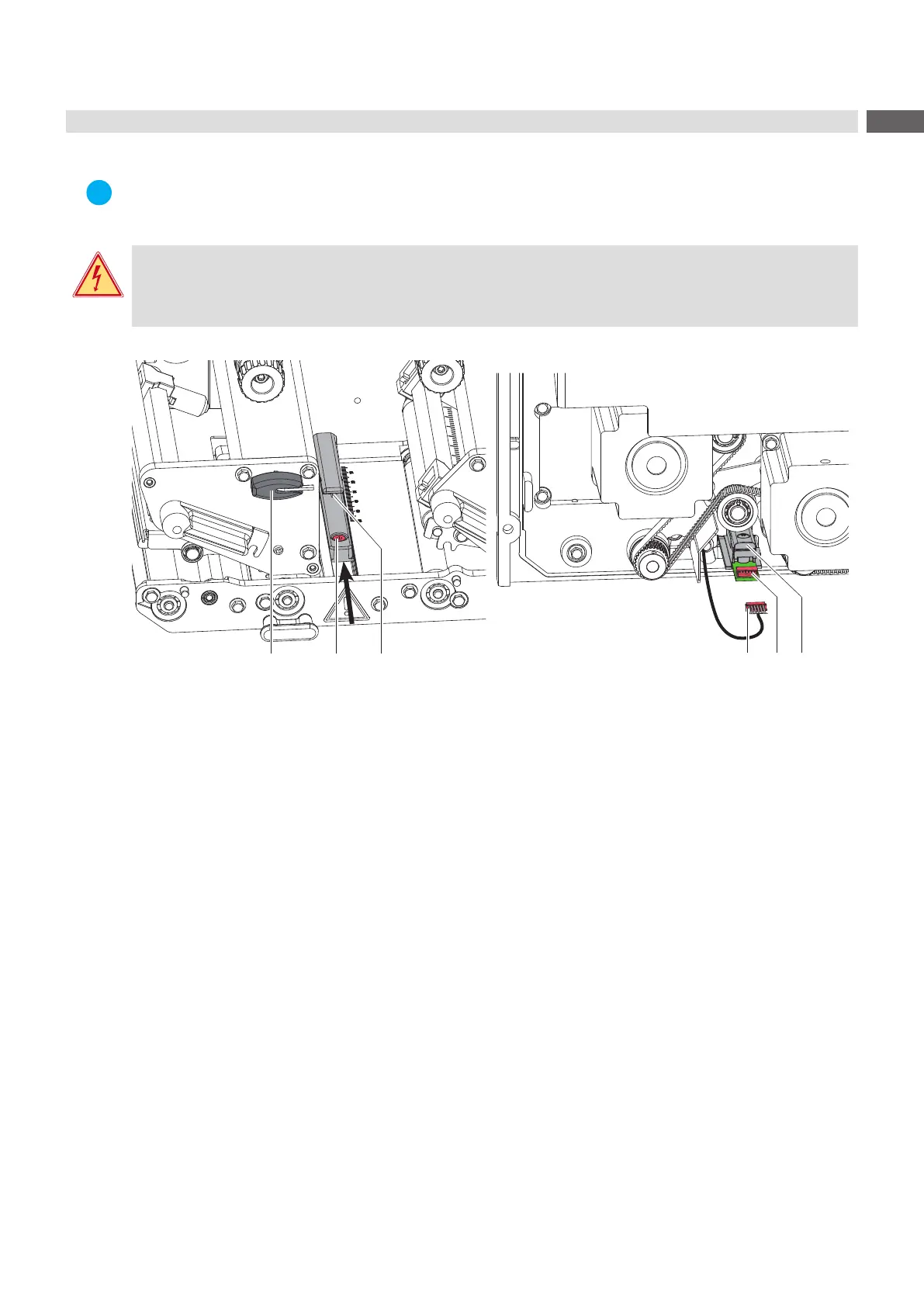

Figure 9 Replacing the label sensor
Removing the label sensor
1. Unplug the device from the electrical outlet and remove the rear cover.
2. Remove the material from the printer.
3. Disconnect the cable (4) from the connector (5) of the label sensor (3) .
4. Loosen the screw (2) with the Allen key (1).
5. Push the label sensor (3) in the arrow direction and remove it to the backside
Installing the label sensor
1. Move the new label sensor (3) against the arrow direction in the former position.
2. Connect the cable (4) to the connector (5) .
3. Mount the rear cover and restore all connections.
4. Adjust the label sensor Mounting Instructions.
5. Tighten the screw (2) .
6. Calibrate the label sensor Conguration Manual.
