4 Replacing Assembly Units
4.1 Replacing the Printhead
The printhead of the label printer can be replaced without the need for ne adjustment. The printhead must be
replaced if worn or when switching to a printhead with higher or lower resolution.
1
2
3
4
4
1 Data connector
2 Power connector
3 Threaded holes
4 Catching holes
5 Heating line

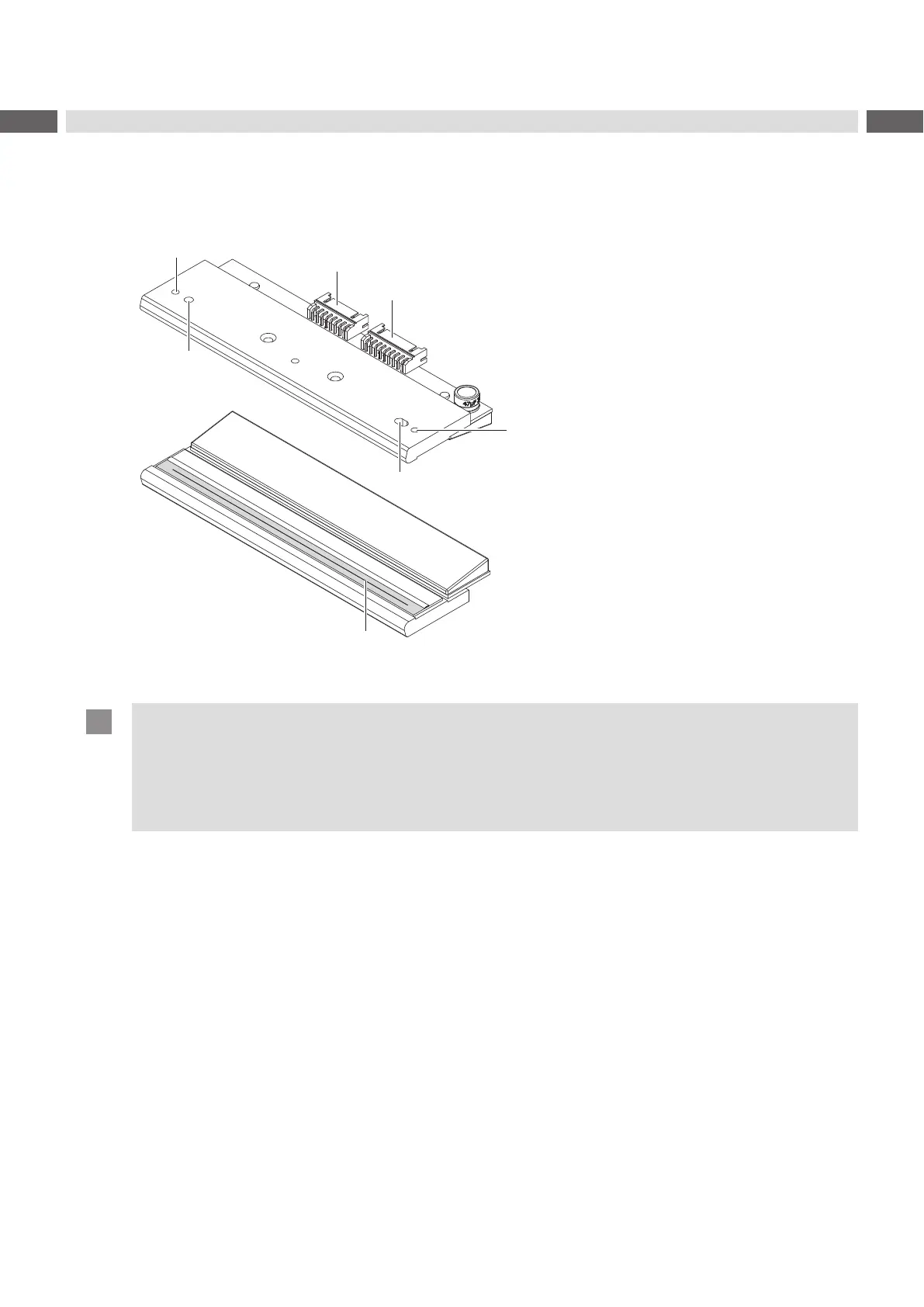

Figure 3 Structure of the printhead
Attention!
The printhead can be damaged by static electricity discharges and impacts!
Set up printer on a grounded, conductive surface.
Ground your body, e.g. by wearing a grounded wristband.
Do not touch contacts on the plug connections (1, 2).
Do not touch heating line (5) with hard objects or your hands.
