8 Media
8.2 Device Dimensions

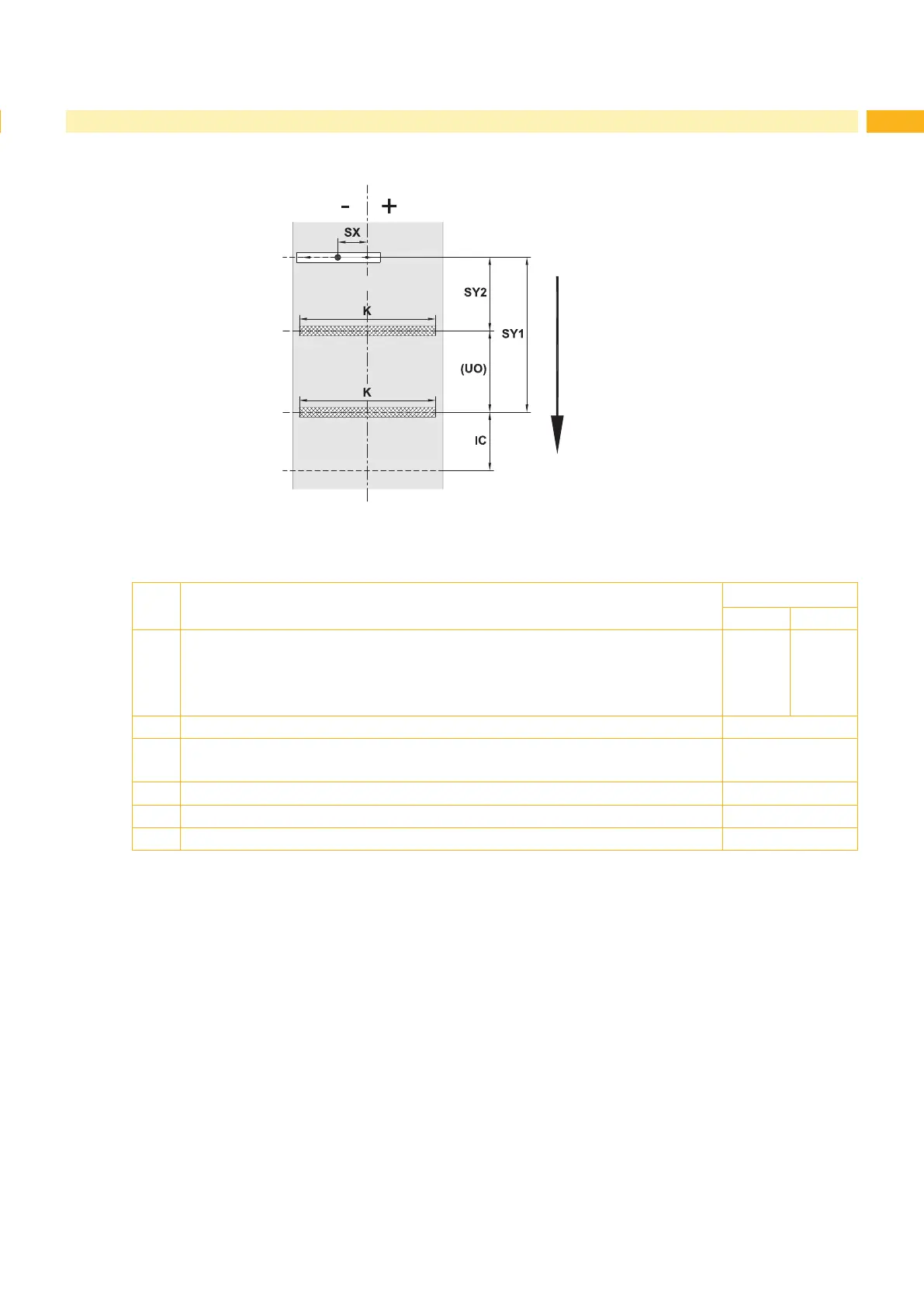

Fig. 19 Device dimensions
Dim. Designation Dim. in mm
XD4M XD4T
IC Distance printhead - cut edge
with cutter CU4
with perforation cutter PCU4
with stacker ST4
18,8
19,5
35,3
45,6
46,3
62,1
K Print width 105,6
SX
Distancegap/reectivesensor-middleofmediatrack
i.e.permissibledistanceofreexorcut-outmarksfromthemiddleofthematerial
-53 - ±0
SY1
Distancegap/reectivesensor-printhead1(upper) 132,4
SY2
Distancegap/reectivesensor-printhead2(lower) 69,8
UO Distance printhead 2 (lower) - printhead 1 (upper) 62,6
Table 9 Device dimensions
Feed direction
Gap Sensor
& Reective Sensor
Printhead 2 (lower)
Printhead 1 (upper)
Cut edge
