CAB XD4M - Cut-Out Mark Dimensions

26 27
8 Media
8.4 Cut-out Mark Dimensions

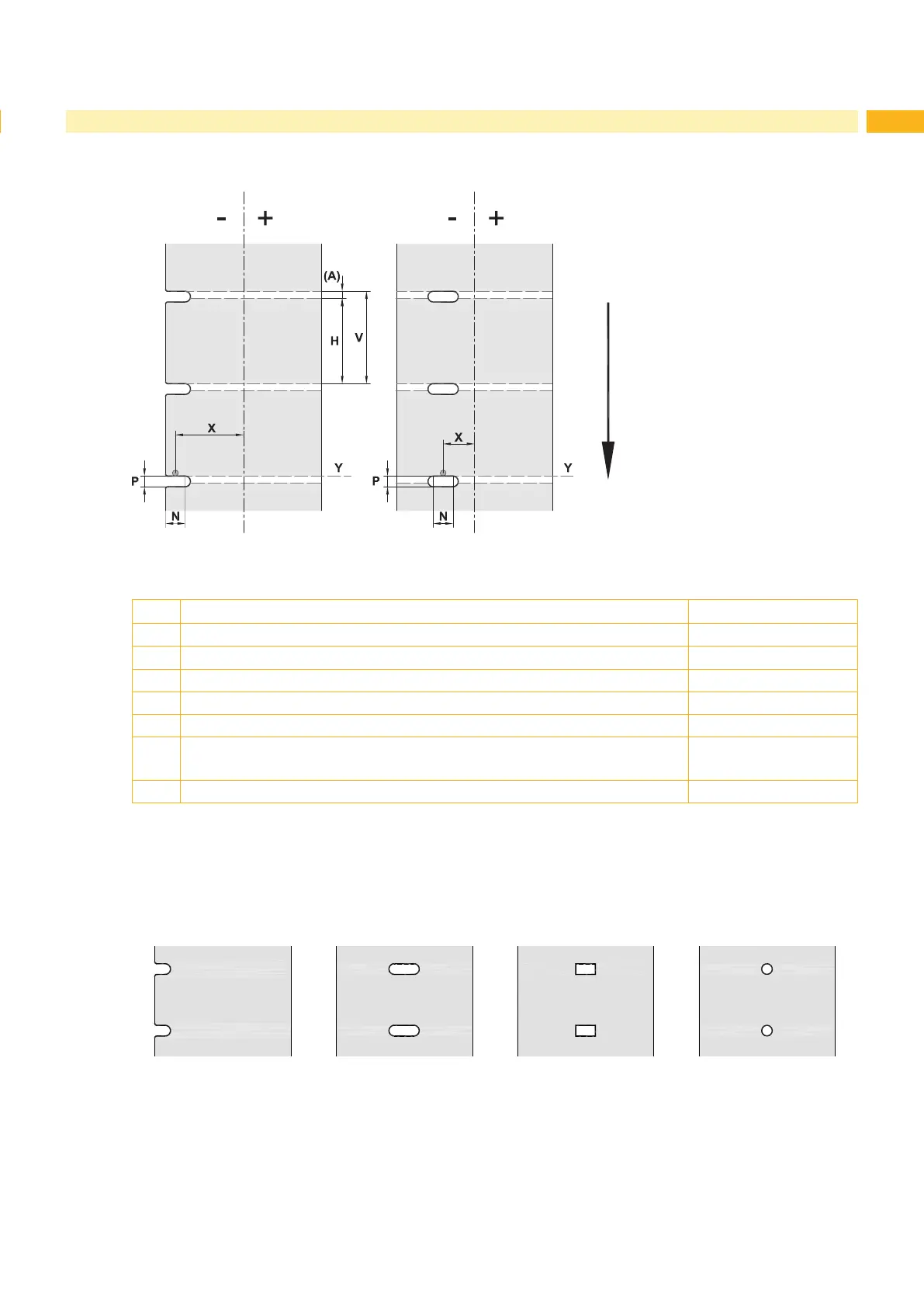

Fig. 21 Cut-out mark dimensions
Dim. Designation Dim. in mm
H Print zone height 5 - 1000
A Print zone distance > 2
V Feed length > 7
N Width of cut-out > 5
P Height of cut-out 2 - 10
X Distance cut-out - middle of media track
=Distancegap/reectivesensor-middleofmediatrack
-53 - ±0
Y Sensor recognized virtual print zone front edge with gap sensor recognition Rear edge cut-out
Table 11 Cut-out mark dimensions
Marginal cut-out Long hole cut-out Rectangular cut-out Circular cut-out
Not recommended !
Fig. 22 Samples for cut-out marks
Feed direction
