CAB XD4M User Manual

24 24
8 Media
8.1 Media Dimensions
Labels Endless material

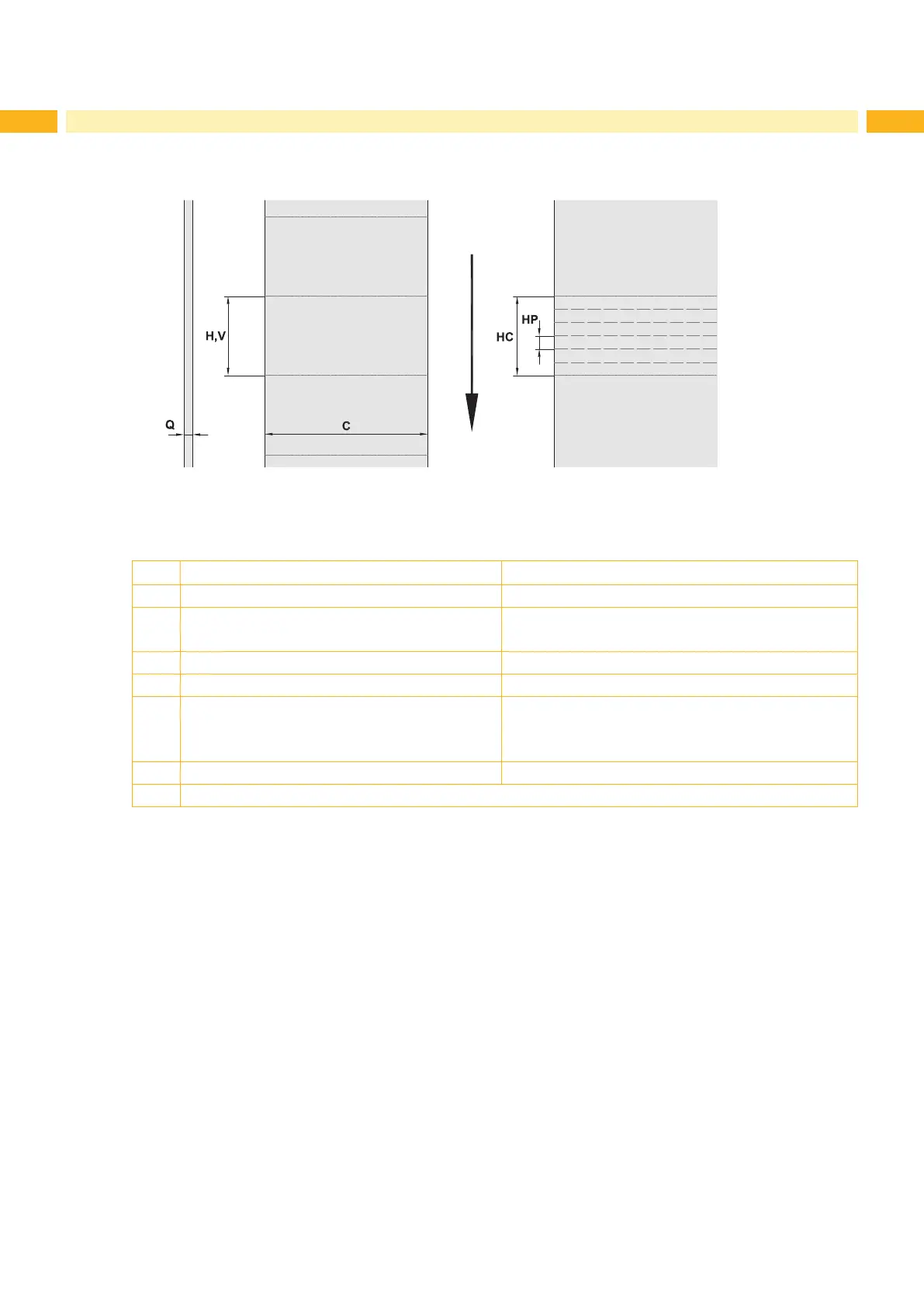

Fig. 18 Media dimensions
Dim. Designation Dim. in mm
C Media width 4 - 110
Q Media thickness
Height of material passage
0,055 - 0,8
4,5
H Print zone height 20 - 2000
V Feed length > 20
HC Cut length
with cutter CU4
with perforation cutter PCU4
> 20
> 20
HP Perforation length > 20
• Notethebendingstiffness!Materialmustbeexibletofollowtheradiusoftheprintroller!
Table 8 Media dimensions
Feed direction
