CAB XD4M User Manual

6 7
22
20
19
23
21
16
17
15
14
18
24
25
26
14 Upperribbondeection
15 Printhead retainer with upper
printhead
16 Upper guides
17 Upper print roller
18 Guide roller
19 Guide roller
20 Allen key
21 Material sensor
22 Upper printhead locking lever
23 Knob for guide adjustment
24 Pressing roller system
25 Pinch roller
26 Detent pin

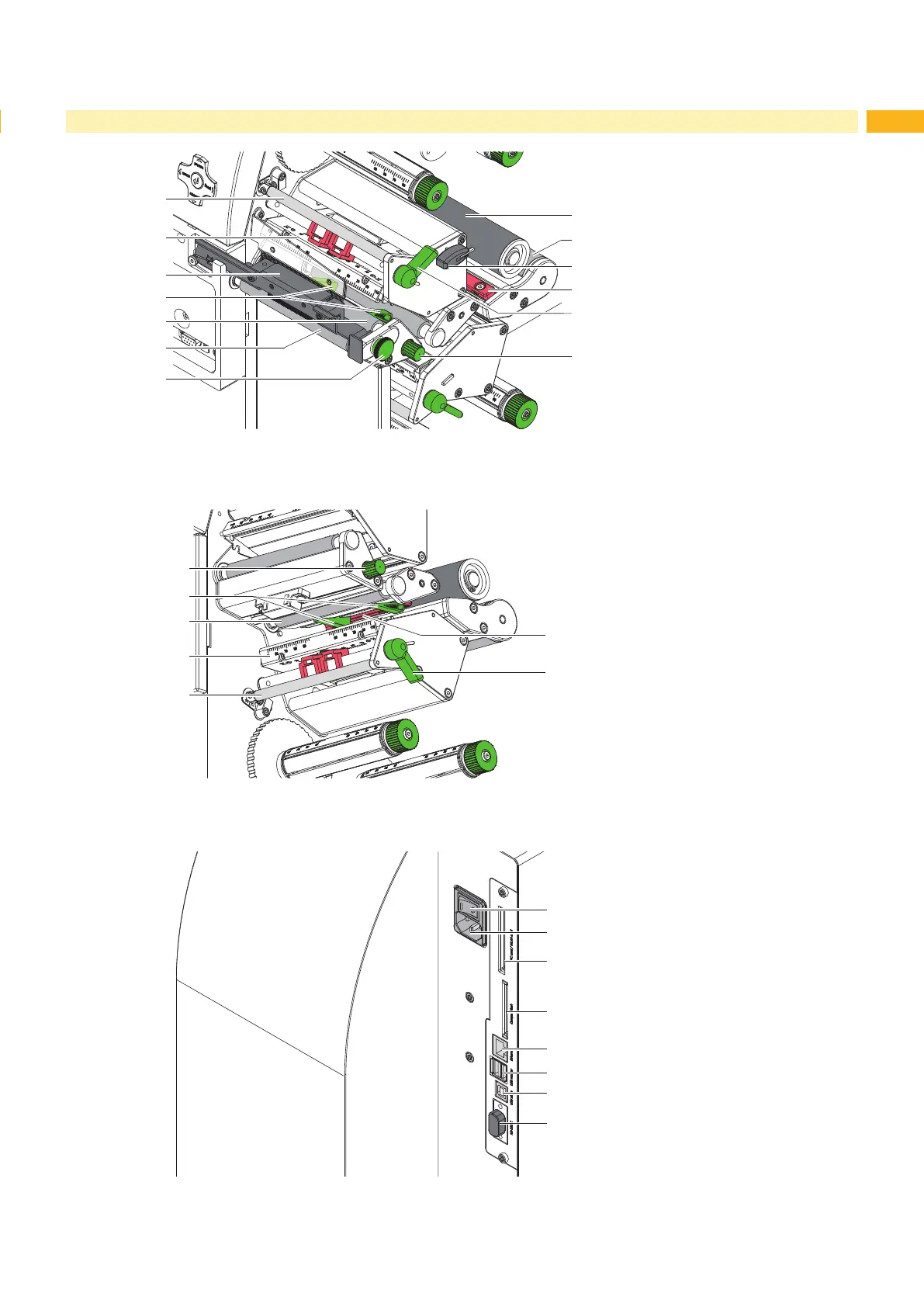

Fig. 3 Print mechanics - upper print unit XD4T
21
31
29
28
27
23
30
21 Material sensor
23 Knob for guide adjustment
27 Lower guides
28 Lower print roller
29 Printhead retainer with lower
printhead
30 Lowerribbondeection
31 Lower printhead locking lever
Fig. 4 Print mechanics - lower print unit
32
33
34
35
36
37
38
39
32 Power switch
33 Power connection jack
34 Slot for PC Card Type II
35 Slot for CompactFlash memory
card
36 Ethernet 10/100 Base-T
37 2 USB master ports for keyboard,
scanner or service key
38 USB high-speed slave port
39 Serial RS-232 C port
(not to be used  5.6 on page 18)
Fig. 5 Connections
2 Installation

CAB XD4M Specifications

General

Brand	CAB
Model	XD4M
Category	Label Maker
Language	English
