7548 Programmable Routing - Slave Mod. Mk II 4-19
Revision J2005-2 J-Type
71615 ,QSXW#/HYHO#0HWHUV

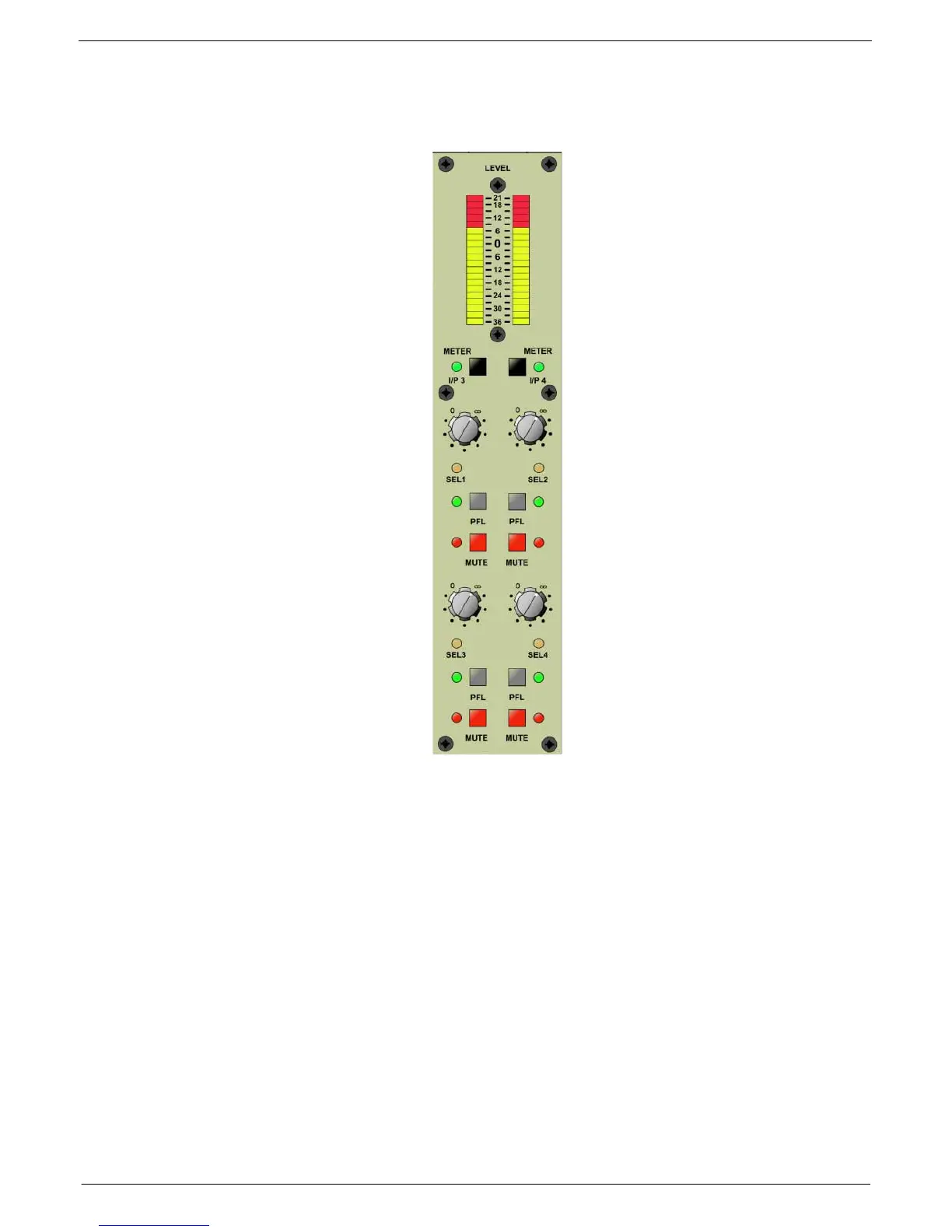

Two separate 20 segment LED meters that can be set to monitor any of the four
inputs. For details on how to do this see below.
71616 6HOHFW#,QSXW#WR#0HWHUV
The two switches located below the meter, select which input you view. The switch
on the left of the module meters inputs 1 (off position) and 3 (depressed), while the
other selects inputs 2(off position) and 4(depressed).
71617 ,QSXW#/HYHO#FRQWUROV
A continuously variable level control potentiometer for each
line level
audio input to
the module, having a range of
∞
to 0dB.
4.3.2 Input Level Meters
4.3.3 Select Input to Meters
4.3.4 Input Level Controls
4.3.5 SEL(ected Inputs
4.3.6 PFL Switches
4.3.7 MUTE Switches
4.3.4 Input Level Controls
4.3.5 SEL(ected) Inputs
4.3.6 PFL Switches
4.3.7 MUTE Switches
3URJUDPPDEOH#5RXWLQJ#0#6ODY H#PRGXOH#0N#,,
