These two switches allow global switching of ISOLATE for programmable modules
such as routers and groups.
Note that these switches have no effect upon faders. Separate switches for global
fader isolate are included on the 7303 Interface module, (see 2.4 Fader Interface
Module 7303).
M 0RW RU#)DGHUV
This group of eight push-buttons may be used to control two dynamic sequences A
and B. Dynamic B is used only when an additional dynamic is being played. Both
dynamics can run simultaneously. The motor faders can be set to safe and ready
mode respectively. In safe mode, touching the fader knob will have no impact on the
recorded sequence. In ready mode, touching the fader knob will cause the motor
fader to toggle between ready and write mode. Thus, editing of the recorded
sequence (dynamic A only) goes on for as long as the fader knob is actually touched
and the fader remains in ready mode.
############
PLAY/PAUSE (1)
Plays, pauses or continues a recorded sequence of motor fader
movements associated with dynamic A. If recording is enabled with the push-button
(8), then this button starts either a new recording, or starts an update of an existing
dynamic.
PLAY/PAUSE (2)
Plays, pauses or continues a recorded sequence of motor fader
movements associated with dynamic B.
STOP (3, 4)
Stops the recorded sequence of motor fader movements.
SET READY (5)
This mode allows individual faders to be “toggled” between safe and
ready mode by touching the fader knob.
ALL READY (6)
Sets all motor faders to ready mode.
ALL SAFE (7)
Sets all motor faders to safe mode.
RECORDING ENABLED (8)
Prepares the computer for recording of a dynamic
sequence. Pressing button (1) starts the actual recording.

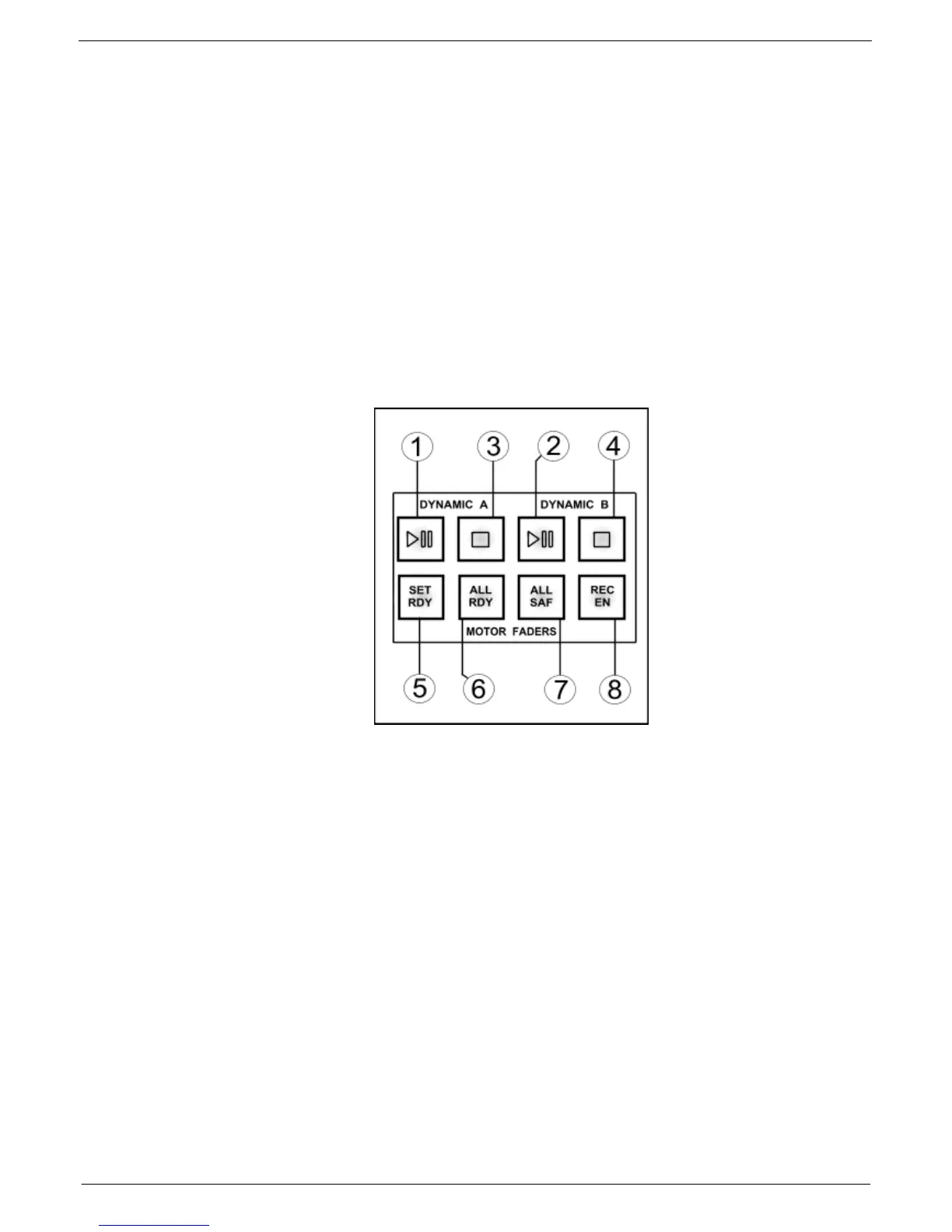

FIG 2-2. Keypad for controlling dynamics.
