The original concept of the J-type console was to provide the Theatre and Live
Sound industries with a high quality, high reliability manual system with fader, MIDI
and Events automation. Consequently, a number of modules for the J-type are not
programmable. The range of modules available are described in the following sec-
tions.
814 ;38<#'XDO#,QSXW#&KDQQHO

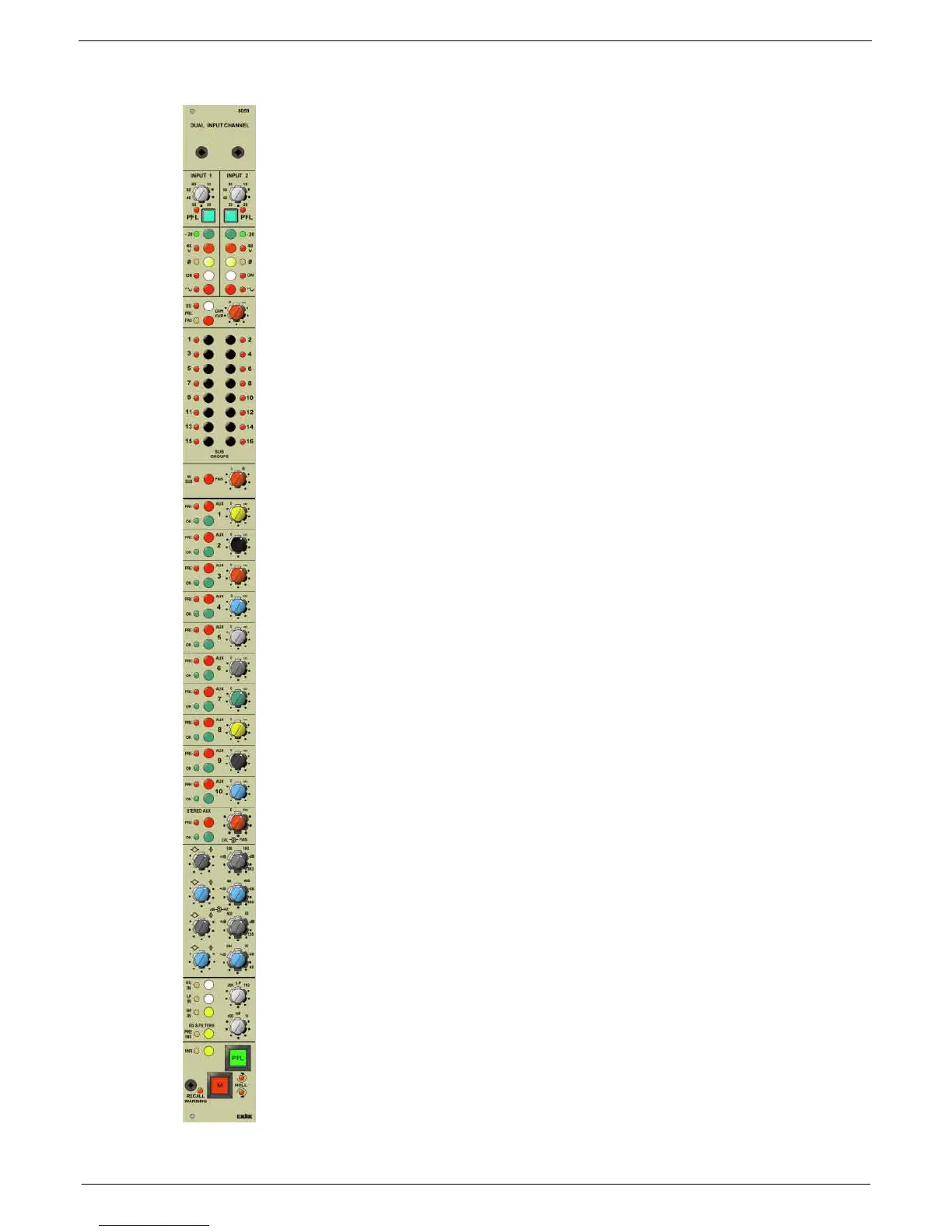

The 8059 Dual Input Channel has a dual input capable of accepting a wide range of
devices. The input signal may be routed to any or all of the 16 Sub Groups available
on the system. A PAN control can be inserted, allowing you to pan between odd and
even Sub Group. A separate direct output is also provided.
There are ten mono and one stereo Aux Send sections, each with on/off and pre/
post switches.
The equalizer has an overall in/out switch and individual in/out switches are provided
for the High pass and Low pass filters. Each EQ section has controls for ±18dB
boost/cut, variable frequency and Q.
The normal PFL and Mute switches are situated at the bottom of the module. There
are also two PFL buttons at the top of the module to monitor the MIC I/Ps.
