5-2 8059 Dual Input Channel
J-Type Revision J2005-2
81414 ,QSXW#*DLQ
The input gain is continuously variable from +10dB (minimum) to +60dB. In combina-
tion with the 20 dB pad, this allows the use of a wide range of input devices including
ribbon, dynamic, electret and capacitor microphones: CD-players, professional reel-
to-reel tape machines; etc.
81415 3)/
A PFL switch is provided on each MIC I/P to allow the operator to instantaneously
“monitor” the audio signal coming into the channel.

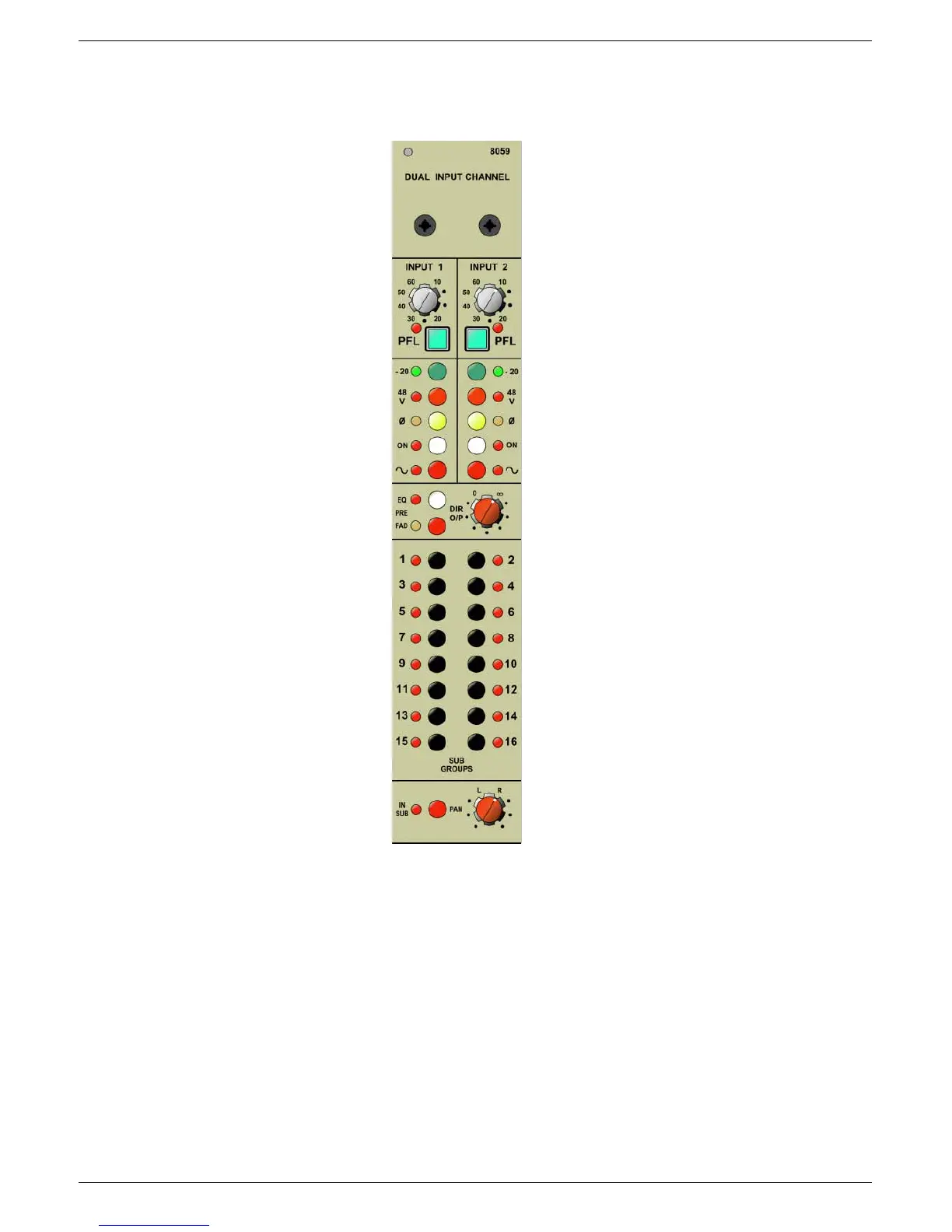

;38<#'XDO#,QSXW#&KDQQHO
5.1.1 Input Gain
5.1.2 PFL
5.1.3 20dB Pad
5.1.4 48V Phantom power
5.1.5 Phase change
5.1.6 Input ON
5.1.7 OSC/PNG Bus Select
5.1.10 Direct Output Level
5.1.11 Routing to Sub Groups
5.1.13 Pan Pot
5.1.8 Pre EQ
5.1.9 Pre FAD
5.1.12 Sub Groups IN
