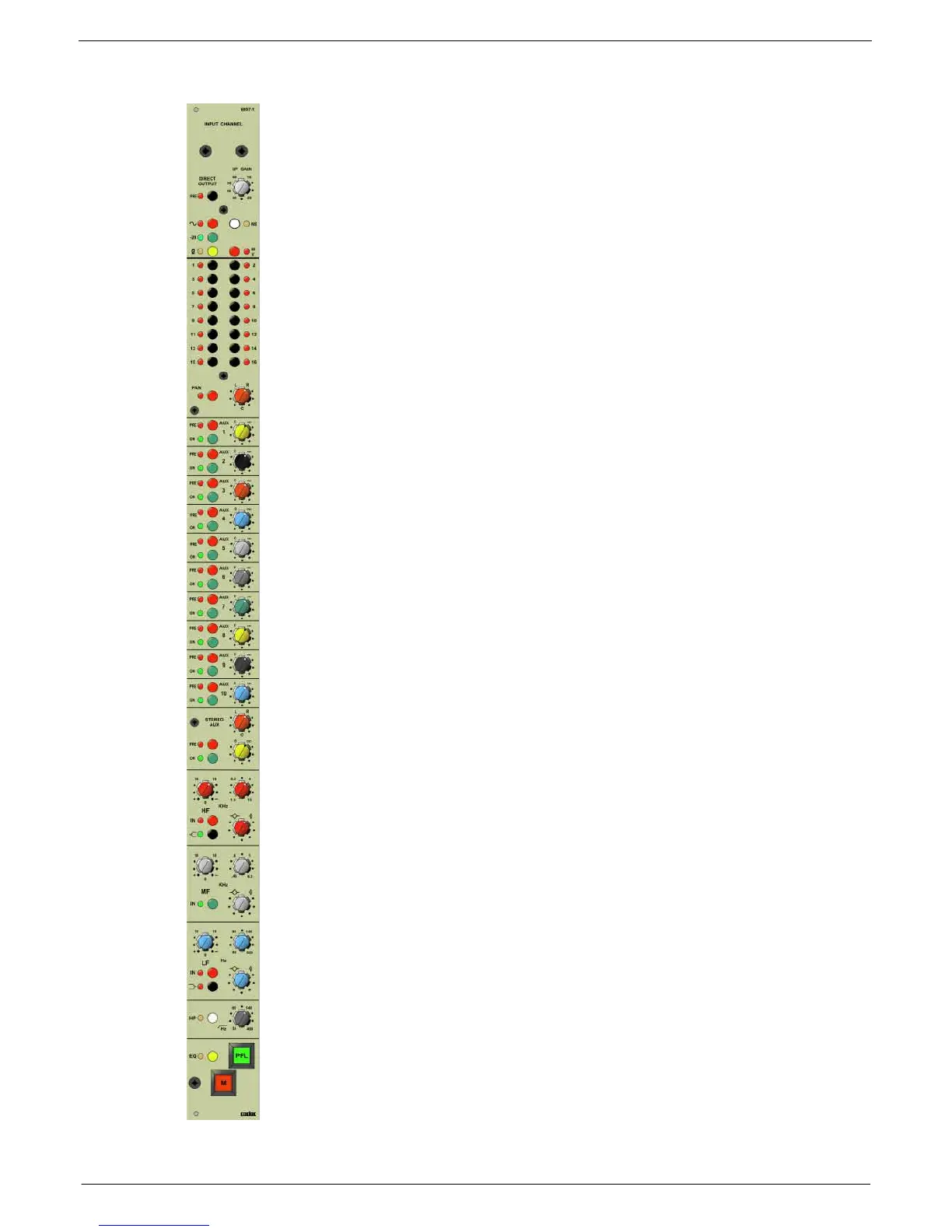

The 6907 Input Channel has a single input capable of handling a wide range of input
devices. The input signal may be routed to any or all of the 16 sub groups available
on the system. A PAN control can be inserted, allowing panning between odd and
even sub groups.
There are ten mono and one stereo Aux Send sections, each having on/off and pre/
post switches.
The three band equalizer and high pass filter have individual in/out switches. each
EQ section has controls for ±18dB boost/cut, variable frequency and Q. The high
and low frequency sections are switchable from
bell
to
shelf
. An overall EQ in/out
switch is also provided.
The normal PFL and Mute switches are situated near the bottom of the module.
