6912 Stereo return module 6-5
Revision J2005-2 J-Type
91514 26&231*#%XV#6HOHFW
Press the ‘~’ switch to select the OSC/PNG bus for line-up and signal check pur-
poses.
91515 3KDVH#&KDQJH
Press the Ø switch to reverse the phase of the input signal.
91516 5RXWLQJ#WR#6XE#*URXSV
Sixteen routing switches to enable the input signal to be routed to one or more Sub
Groups.
91517 ,QSXW#*DLQ
This is essentially a ‘trim’ control that allows a range of input signal levels to be
accepted. With a gain range of ±15dB, it can be readily seen that equipment having
the two most popular output signal levels, -10dBm and +4dBm, can be easily acco-
modated.

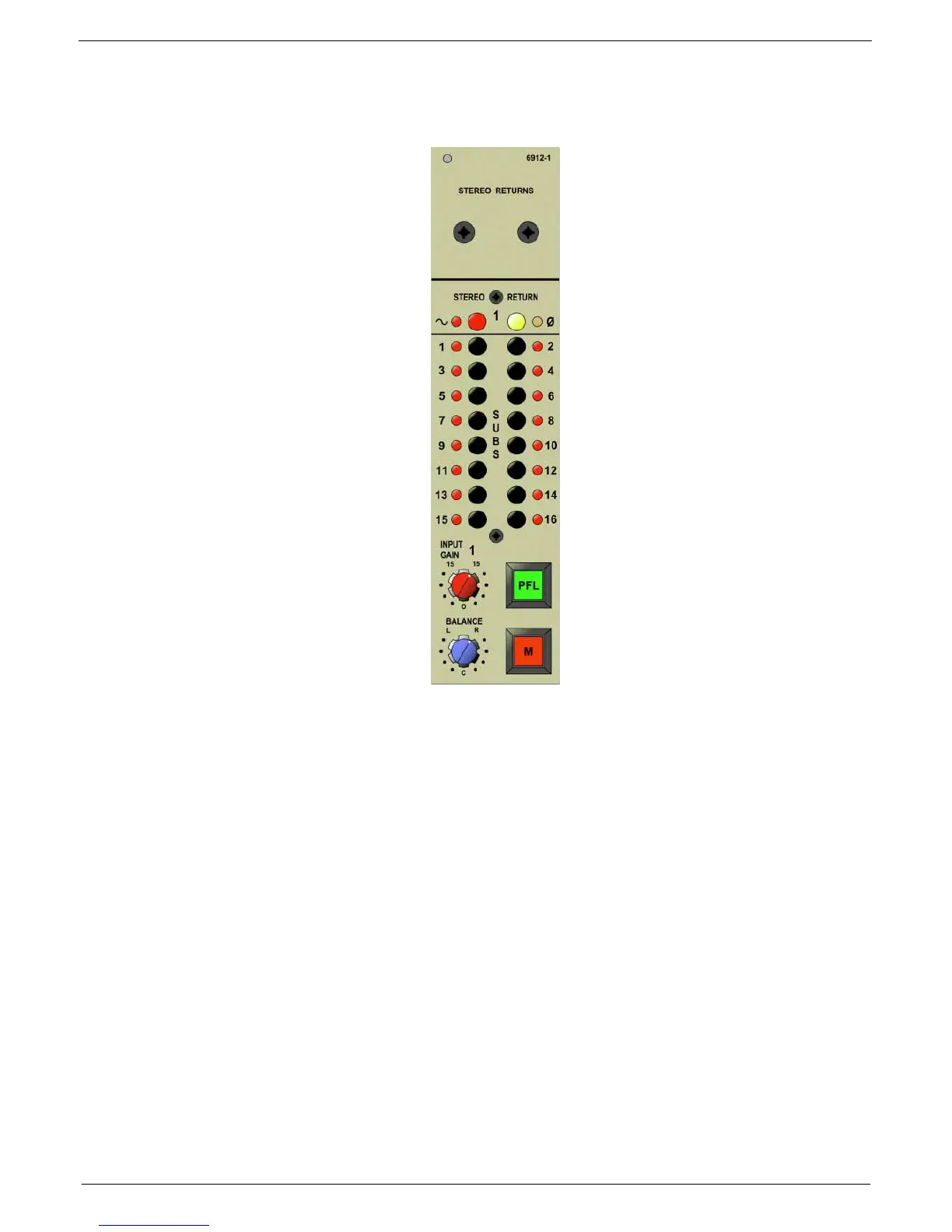

9<45#6WHUHR#5HWXUQ#0RGXOH
6.2.2 Phase Change
6.2.3 Routing to Sub Groups
6.2.6 PFL
6.2.7 MUTE
6.2.1 OSC/PNG Bus Select
6.2.4 Input Gain
6.2.5 Balance
