6-6 6912 Stereo return module
J-Type Revision J2005-2
91518 %DODQFH
The balance control or pan-pot can be used to make final ‘image’ adjustments to an
incoming stereo signal, or to produce a two channel output from a mono source.
91519 3)/
A PFL switch is included in each section to allow instantaneous monitoring of the
input signal.
9151: 087(
The MUTE switch is provided so that the Stereo Return section can be turned ‘off’
when not required.

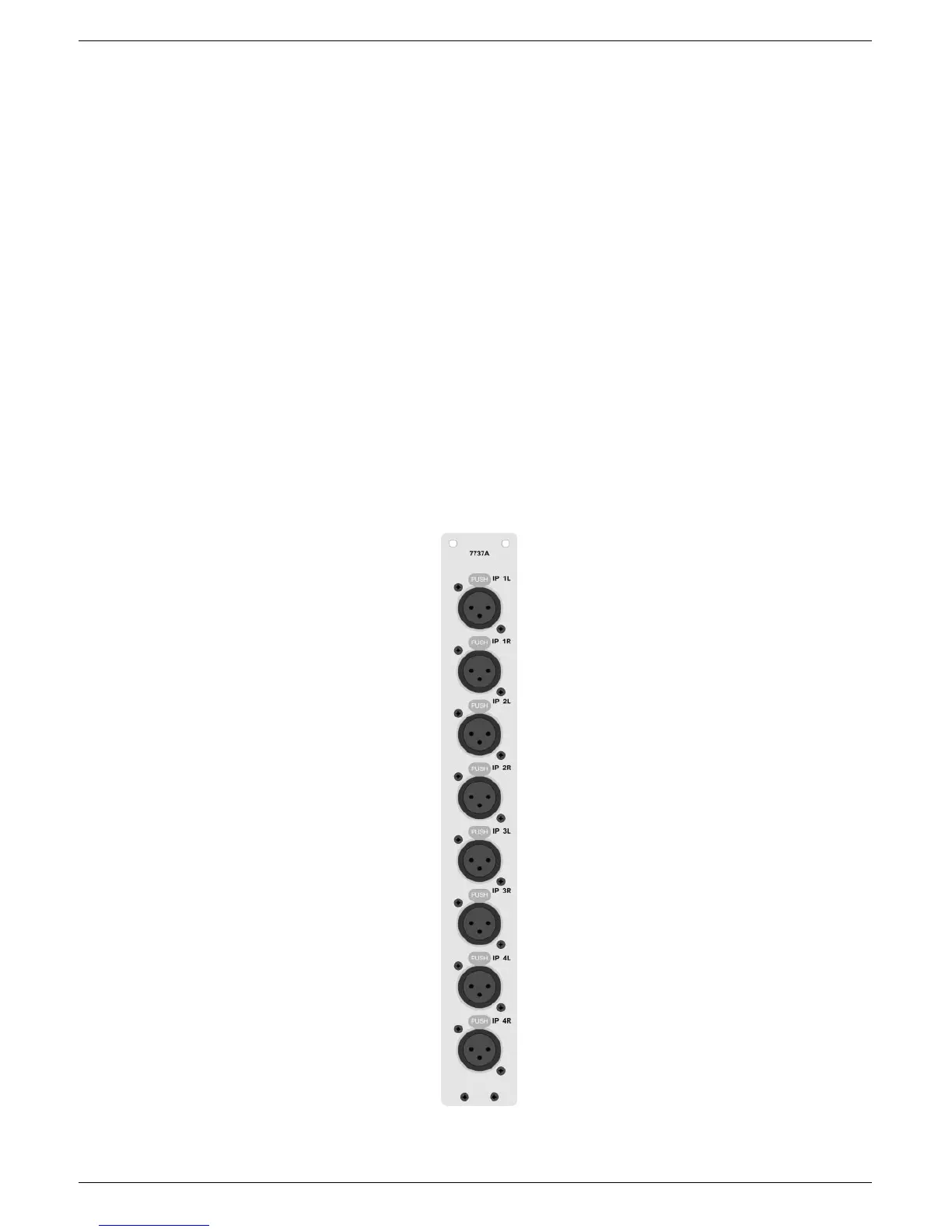

9151; 0RGXOH#5 HDU#3DQHO#&RQQHFWRUV#
Inputs 1 to 4, Left and Right
Balanced stereo inputs for line level signals
Important note:
Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
INPUT 1 RIGHT
INPUT 2 RIGHT
INPUT 3 RIGHT
INPUT 4 RIGHT
INPUT 1 LEFT
INPUT 2 LEFT
INPUT 3 LEFT
INPUT 4 LEFT
