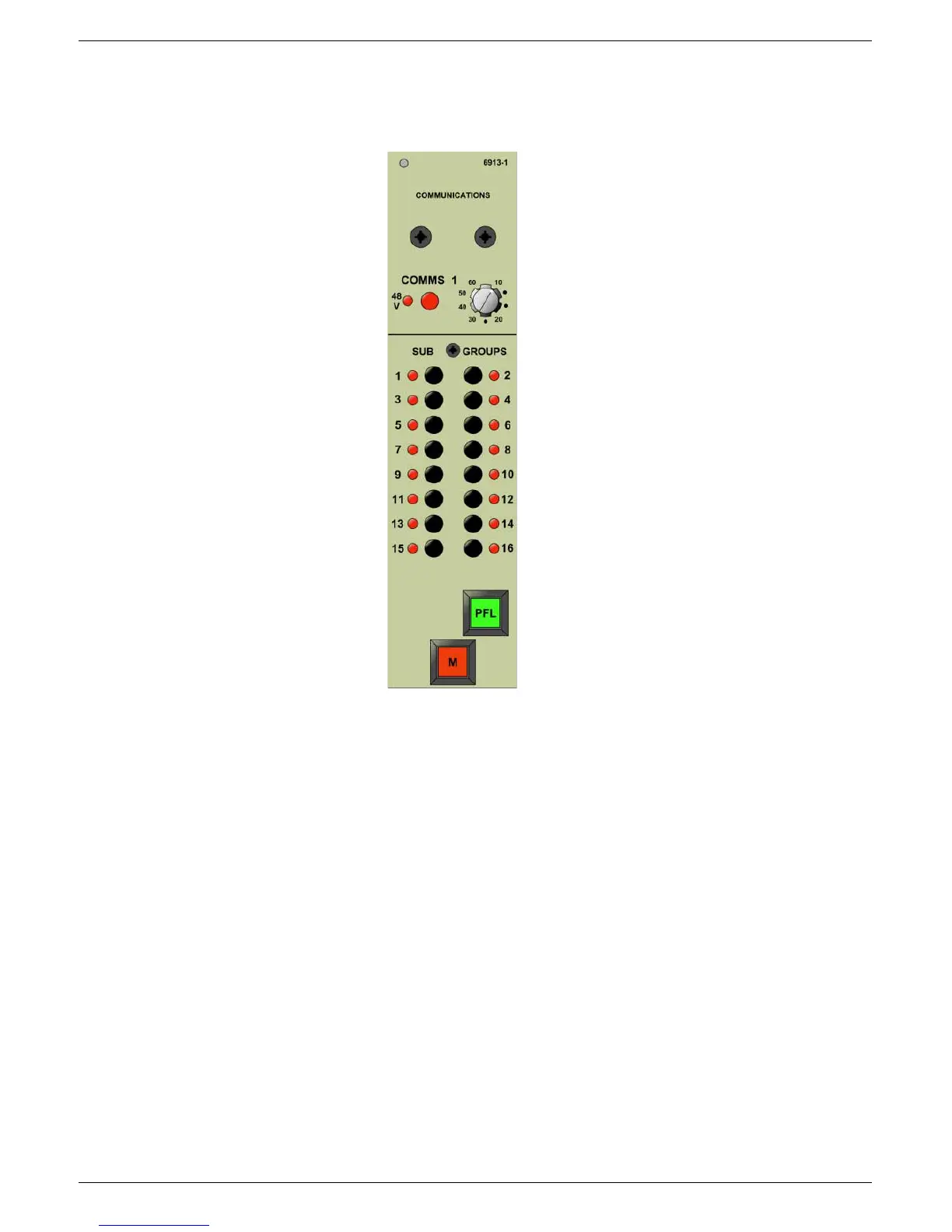

7-18 6913 Communications module
J-Type Revision J2005-2
:1614 &RPPV#4#3KDQWRP#SRZHU#2122) )
Press this button to put phantom power on the input connector.
:1615 &RPPV#4#,QSXW#JDLQ
This potentiometer is used to set gain of the Comms 1 Input amplifier. The gain is
continuously variable from 10dB to 60dB.
:1616 &RPPV#4#5RXWLQJ#WR#6XE#*URXSV
Sixteen switches that allow you to route the Comms 1 input signal to any or all of the
Sub Groups.
:1617 &RPPV#4#3)/
A PFL switch is included in each communications channel to allow instantaneous
monitoring of the input signal.
9<46#&RPPXQLFDWLRQV#PRGXOH
7.3.1 Comms 1 Phantom power ON/OFF
7.3.2 Comms 1 Input gain
7.3.3 Comms 1 Routing to Sub Groups
7.3.4 Comms 1 PFL
7.3.5 Comms 1 MUTE
