5-18 6908 Sub and Matrix module

J-Type Revision J2005-2

81614 ,QMHFW#VLJQDO#OH YHO#SRWV

Sets the level of an inject signal. The signal is directly injected into the mixing ampli-

fiers of the A or B matrix groups via XLRs on the rear panel.

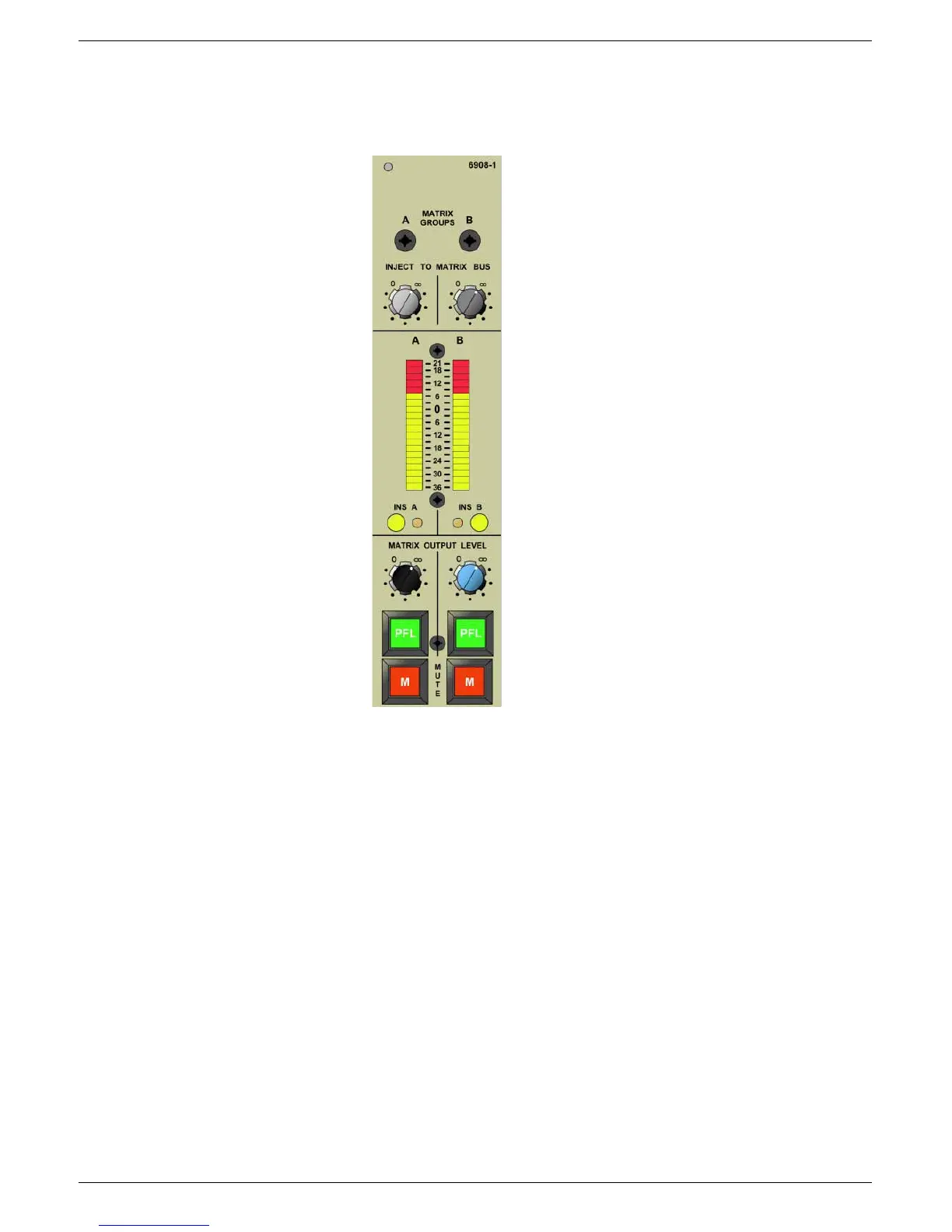

81615 0DWUL[#RXWSXW#/('#PHWHUV

Peak reading 20 segment LED meters read the outputs of the A & B matrix groups.

81616 ,QVHUW#VZLWFKHV

Insert Return introduces the external processing unit into the signal path.

81617 0DWUL[#RXWSXW#OHYHO#SRWV

Controls the output level of the A & B matrix groups.

9<3;#6X E#)#0DWUL[#PRGXOH

5.3.1 Inject signal level pots

5.3.2 Matrix output LED meters

5.3.3 Insert switches

5.3.4 Matrix groups output level pots

5.3.5 PFL-switches for matrix groups

5.3.6 MUTE-switches for matrix groups
