Cadac J-Type - 6908 Sub and Matrix module

6908 Sub and Matrix module 5-17
Revision J2005-2 J-Type
816 9<3;#6XE#DQG#0D WUL[ #PRGXOH

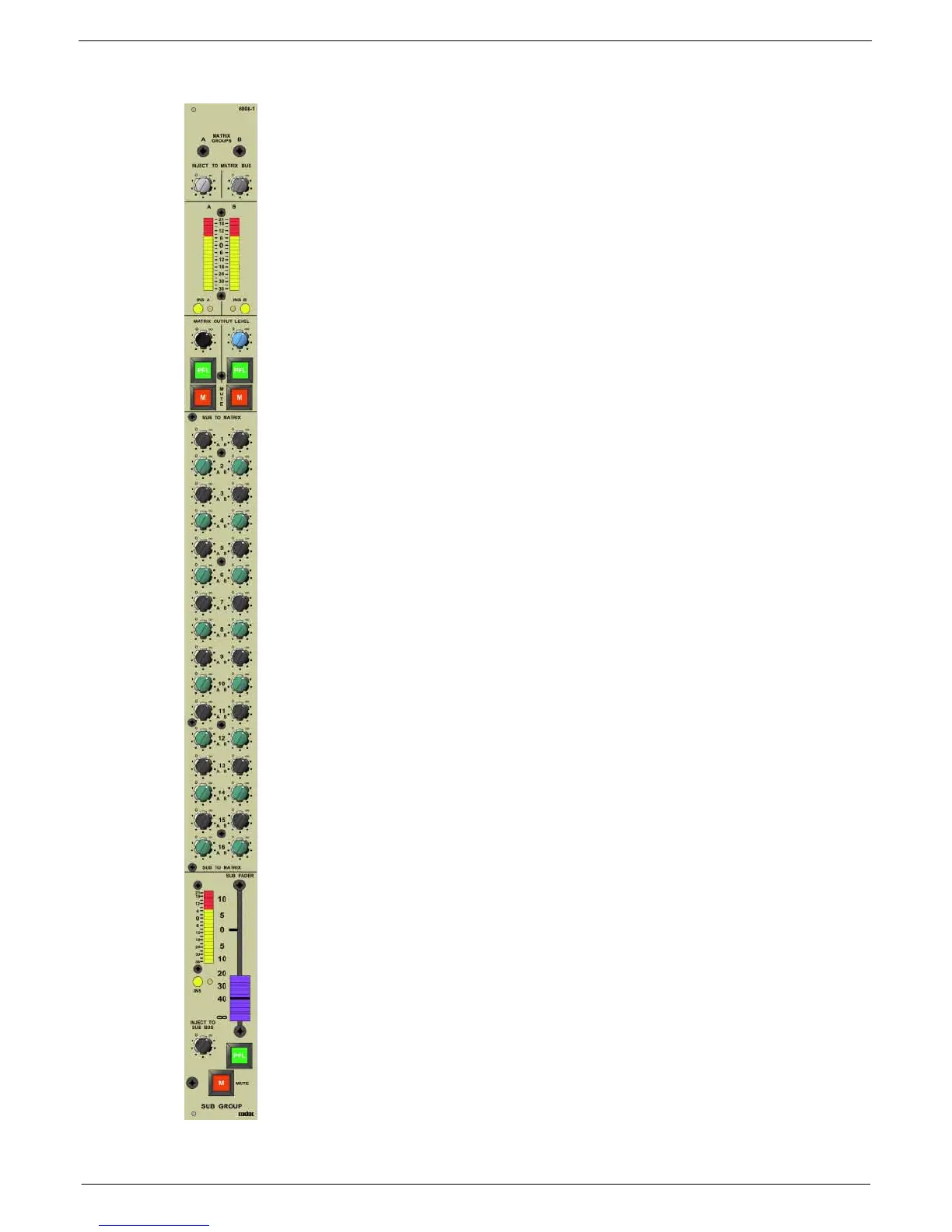

Each mixer can have a maximum of 16 modules. Each module provide one Sub
Group and two Matrix Groups. The sub group fader controls the signal level to the
Matrix send pots. The module has pots to set the level of an inject signal. The signal
is directly injected into the mixing amplifiers of the A or B matrix groups via XLRs on
the rear panel. The module is also equipped with output level pots for A & B matrix
groups.
