3-2 7865 Stereo Input Channel
J-Type Revision J2005-2
61414 ,QSXW#/HIW#*DLQ
Gain control for the stereo left input, giving continuously variable gain from the mini-
mum of 10dB to 60dB.
61415 ,QSXW#/HIW#3)/
Press this button to ‘listen’ to the signal on the stereo left hand only (pre routing and
EQ).
3.1.10 Input Right Gain
3.1.11 Input Right PFL
3.1.12 Input Right -20dB Pad
3.1.13 Input Right Phantom Power
3.1.14 Input Right Phase Change
3.1.15 Input Right On/Off
3.1.16 Input Amplifier/Isolate
3.1.17 Direct O/P Post Channel Fader
3.1.18 Sub Group Routing Switches
3.1.19 Pan Pot

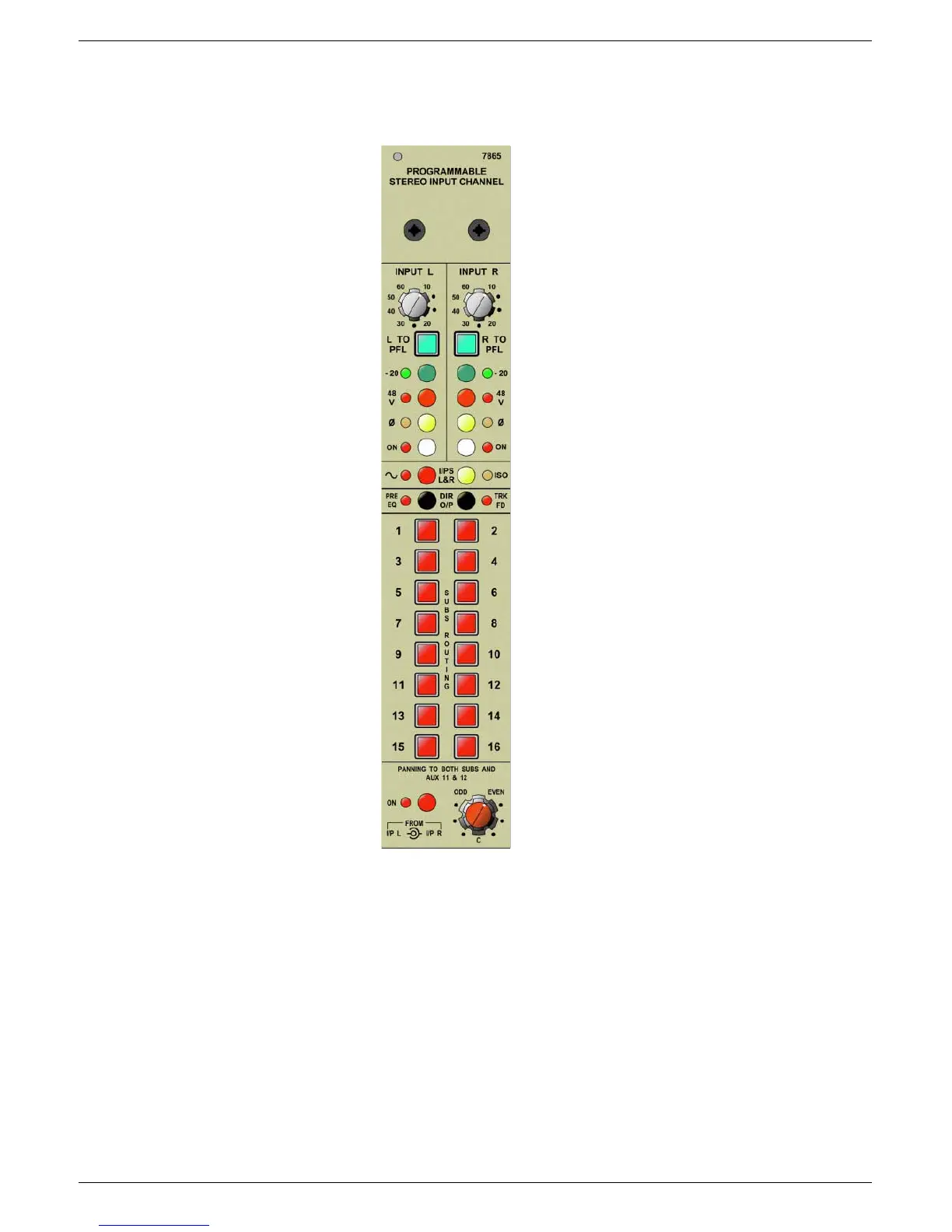

:;98#6WHUHR#,QSXW#&KDQQHO
3.1.1 Input Left Gain
3.1.2 Input Left PFL
3.1.3 Input Left -20dB Pad
3.1.4 Input Left Phantom Power
3.1.5 Input Left Phase Change
3.1.6 Input Left On/Of
3.1.7 Oscillator Bus Select
3.1.8 Direct O/P Pre EQ
3.1.9 Pan Pot Inset
