6913 Communications module 7-19
Revision J2005-2 J-Type
:1618 &RPPV#4#087(
The MUTE switch is provided so that the Comms 1 section can be turned ‘off’ when
not required.

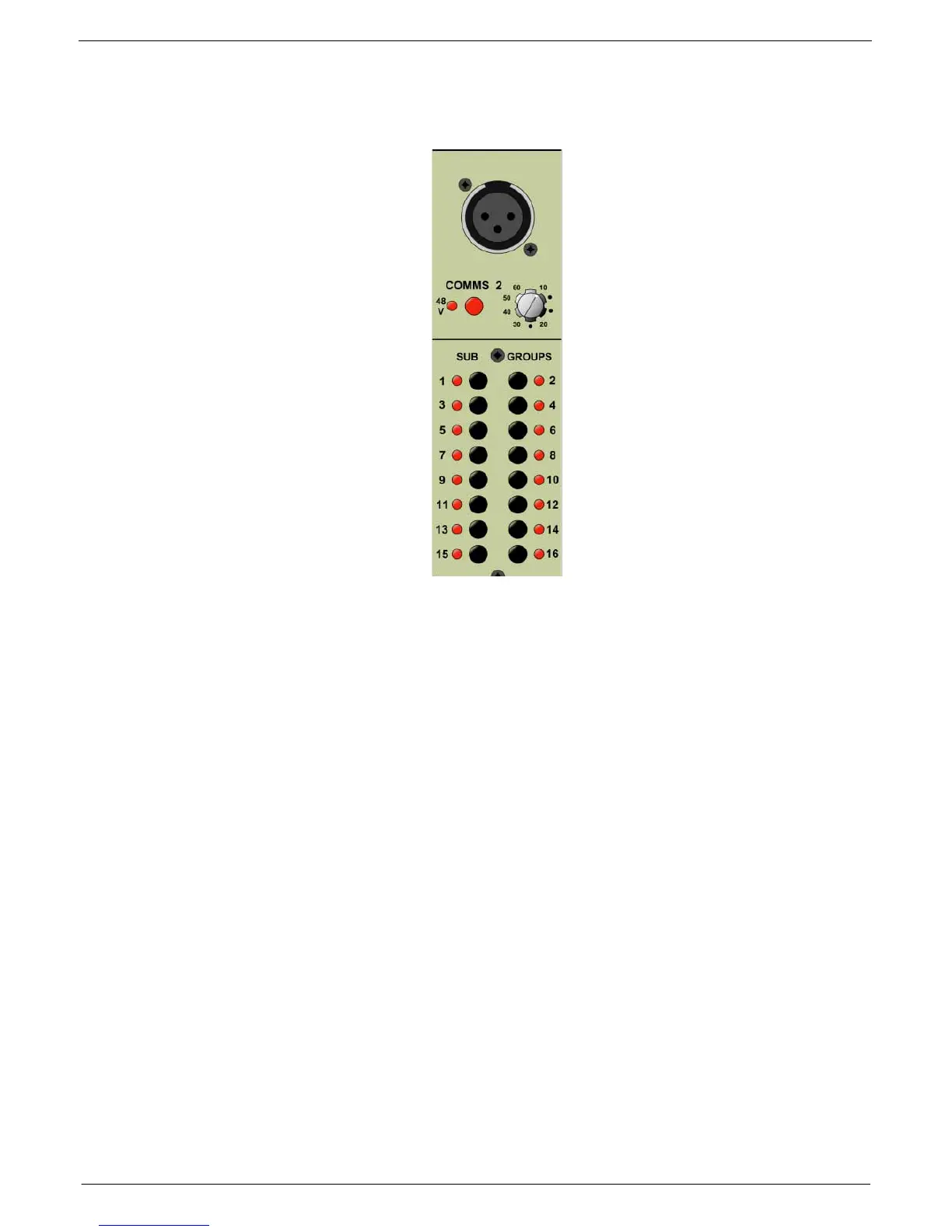

:1619 &RPPV#5#0LF#,QSXW#FRQQHFWRU
Front panel mounted XLR connector for Talkback microphone. This connector is
duplicated on the rear panel.
:161: &RPPV#5#3KDQWRP#SRZHU#2122))
Press this button to put phantom power on the input connector.
:161; &RPPV#5#,QSXW#JDLQ
This potentiometer is used to set the gain of the Comms 2 input amplifier. the gain is
continuously variable from 10dB to 60dB.
:161< &RPPV#5#5RXWLQJ#WR#6XE#JURXSV
Sixteen switches that allow you to route the Comms 2 Input signal to any or all of the
sub groups.
9<46#& RPPXQ L FDW LRQV#PRGXOH
7.3.6 Comms 2 Mic Input connector
7.3.8 Comms 2 Input gain
7.3.9 Comms 2 Routing to Sub groups
7.3.7 Comms 2 Phantom power ON/OFF
