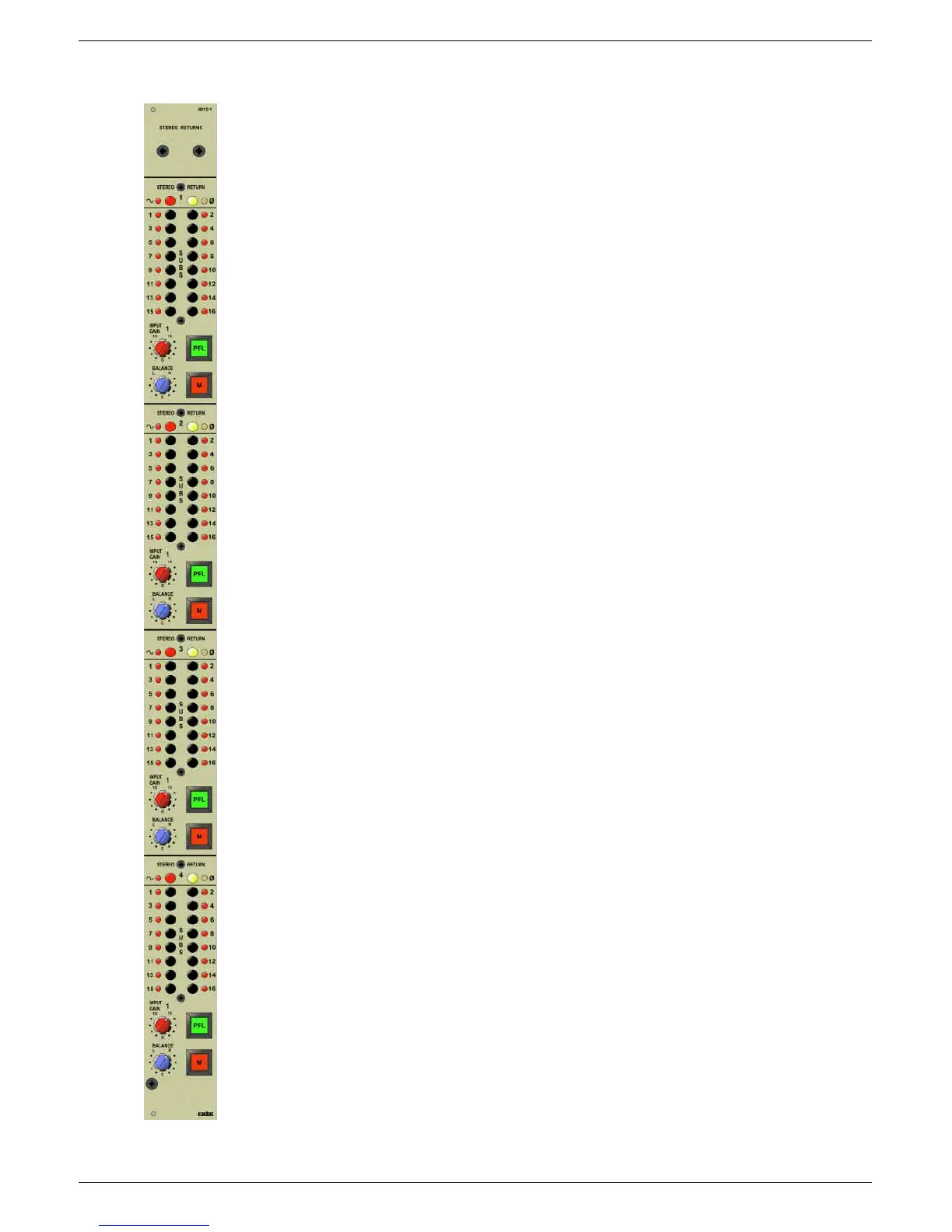

6-4 6912 Stereo return module
J-Type Revision J2005-2
915 9<45#6WHUHR#UHWXUQ#PRGXOH
The Stereo returns module is intended for use with line level signals. Four identical
sections are included on each module, each with switches for OSC/PNG bus selec-
tion, phase change, routing to Sub Groups and the usual PFL and Mutes. There are
additional controls for input gain trim and panning.
Only one section is described in detail below.
