5-6 8059 Dual Input Channel
J-Type Revision J2005-2
814153 ¶+ )#%RRVW 2&XW#FRQWURO
A dual concentric potentiometer where the ‘inner’ knob is the ‘Boost/Cut’ control for
the EQ section and the outer knob is the ‘Frequency’ potentiometer.
Boost/Cut±18dB
FrequencyVariable from 1.5kHz to 15kHz
814154 +0)#%RRVW2&XW#FRQWURO
A dual concentric potentiometer where the ‘inner’ knob is the ‘Boost/Cut’ control for
the EQ section and the outer knob is the ‘Frequency’ potentiometer.
Boost/Cut±18dB
FrequencyVariable from 400Hz to 4kHz
814155 /0)#%RRVW2&XW#FRQWURO
A dual concentric potentiometer where the ‘inner’ knob is the ‘Boost/Cut’ control for
the EQ section and the outer knob is the ‘Frequency’ potentiometer.
Boost/Cut±18dB
FrequencyVariable from 60Hz to 600Hz

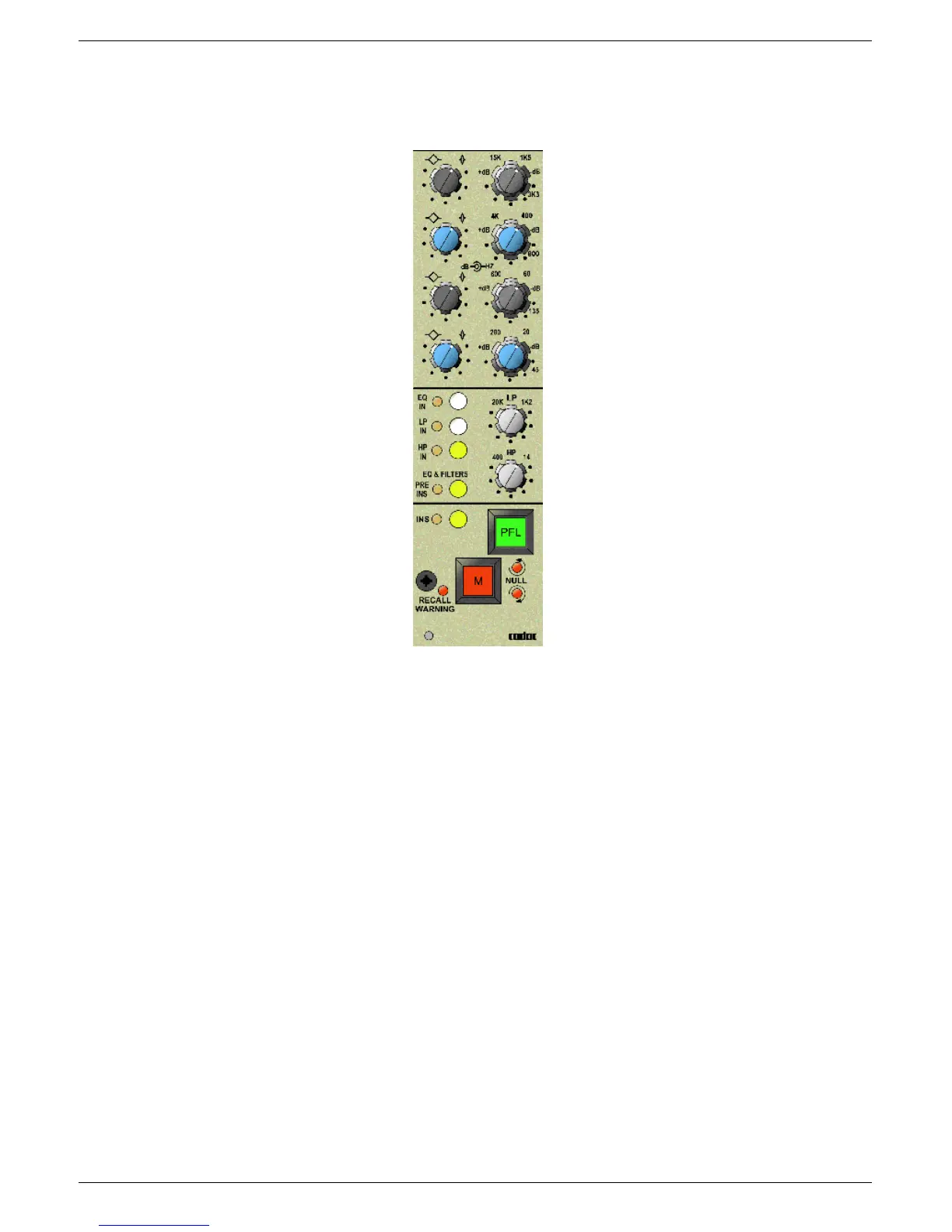

;38<#'XDO#,QSXW#&KDQQHO
5.1.20 HF boost/cut control, vari-
able ±18dB and frequency control.
5.1.21 HMF boost/cut control, vari-
able ±18dB and frequency control.
5.1.22 LMF boost/cut control, vari-
able ±18dB and frequency control.
5.1.23 LF boost/cut control, vari-
able ±18dB and frequency control.
5.1.24 Low Pass filter control.
5.1.25 High Pass filter control.
5.1.32 PFL switch
5.1.33 MUTE switch
5.1.26 Q-control for each equalizer
band.
5.1.27 EQ In/Out
5.1.28 Low Pass filter In/Out
5.1.29 High Pass filter In/Out
5.1.30 EQ and Filters PRE Insert
Send/Return.
5.1.31 Insert
.
