6-2 6909 Auxiliary Group module
J-Type Revision J2005-2
91414 *URXS#RXWSXW#OHYHO#/('#PHWHUV

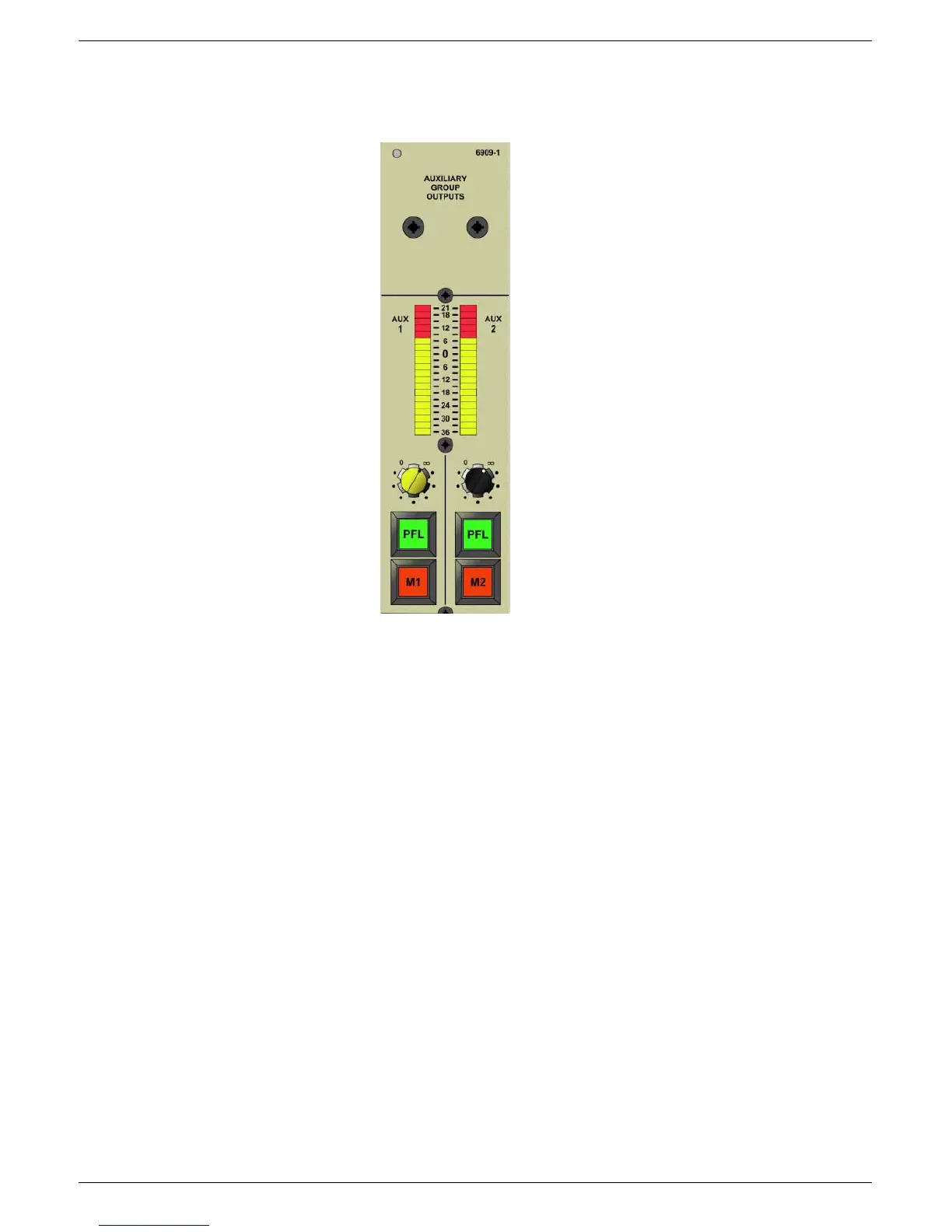

Peak reading 20 segment LED meters reading the outputs of the Auxiliary Groups.
91415 *URXS#RXWSXW#OHYHO#SRWV
Pots adjusting the output level of the auxiliary groups.
91416 3)/
Illuminated PFL-switches for the auxiliary groups. Selection is additive and is not
controlled by the PFL interlock facility.
91417 087(
Illuminated MUTE-switch for the Auxiliary groups. All mute switches are identified
with their respective group number.
9<3<#$X[LOLDU\#*URXS#PRGXOH
6.1.1 Group output level LED meters
6.1.2 Group output level pots
6.1.3 PFL-switches
6.1.4 MUTE-switches
