7106 Quad Panning module 6-13
Revision J2005-2 J-Type

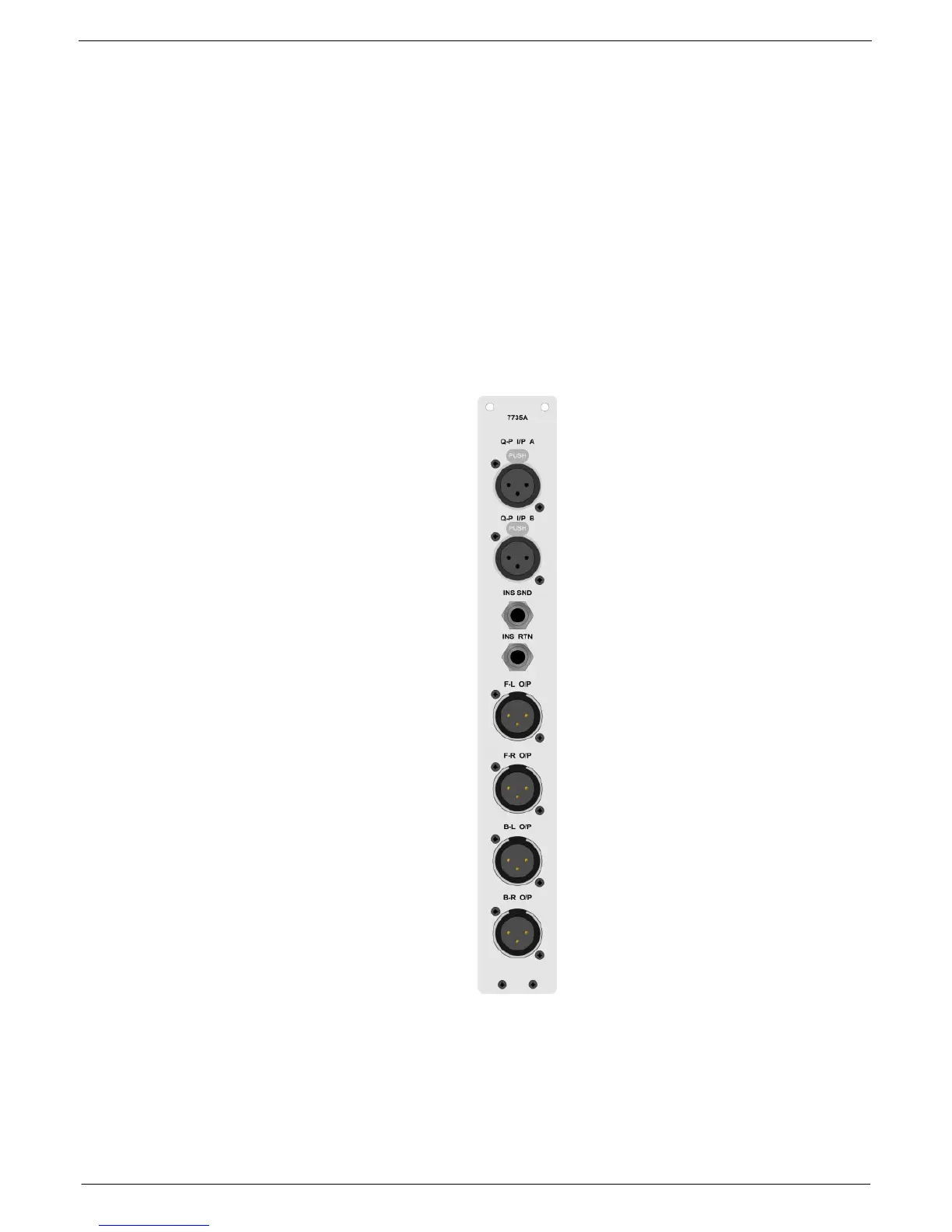

916153 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#
Inputs A and B
Electronically balanced inputs on XLR 3-31 connectors for micro-
phone or line level sources.
Insert Send
Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec-
tronically balanced outputs.
Insert Return
Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack
sockets that are switched into use when the “INS” switch is selected.
Outputs
Balanced direct outputs from the module, delivered to XLR 3-32 connec-
tors.
Important note:
Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
INPUT A
INPUT B
INSERT SEND
INSERT RETURN
OUTPUT FRONT LEFT
OUTPUT FRONT RIGHT
OUTPUT BACK LEFT
OUTPUT BACK RIGHT
