The CHECK switch is used in conjunction with the Input Channel Mute switches.
The Input Channel MUTE switch has a secondary function when used in combina-
tion with the CHECK switch. If a channel is muted (MUTE switch ‘on’) and the
CHECK switch is pressed, the muted channel is unmuted, but all the other channels
are forced into mute. This allows the originally muted channel to have a ‘solo’ func-
tion. Note that this is not a true ‘solo’ function, because if more than one channel is
muted, then the operation of the check switch will turn all the muted channels ‘on’
again, as it forces all of the unmuted channels ‘off’.
9<43#2VFLOODWRU/#3)/#)#6WHUHR#$X[#PRGXOH

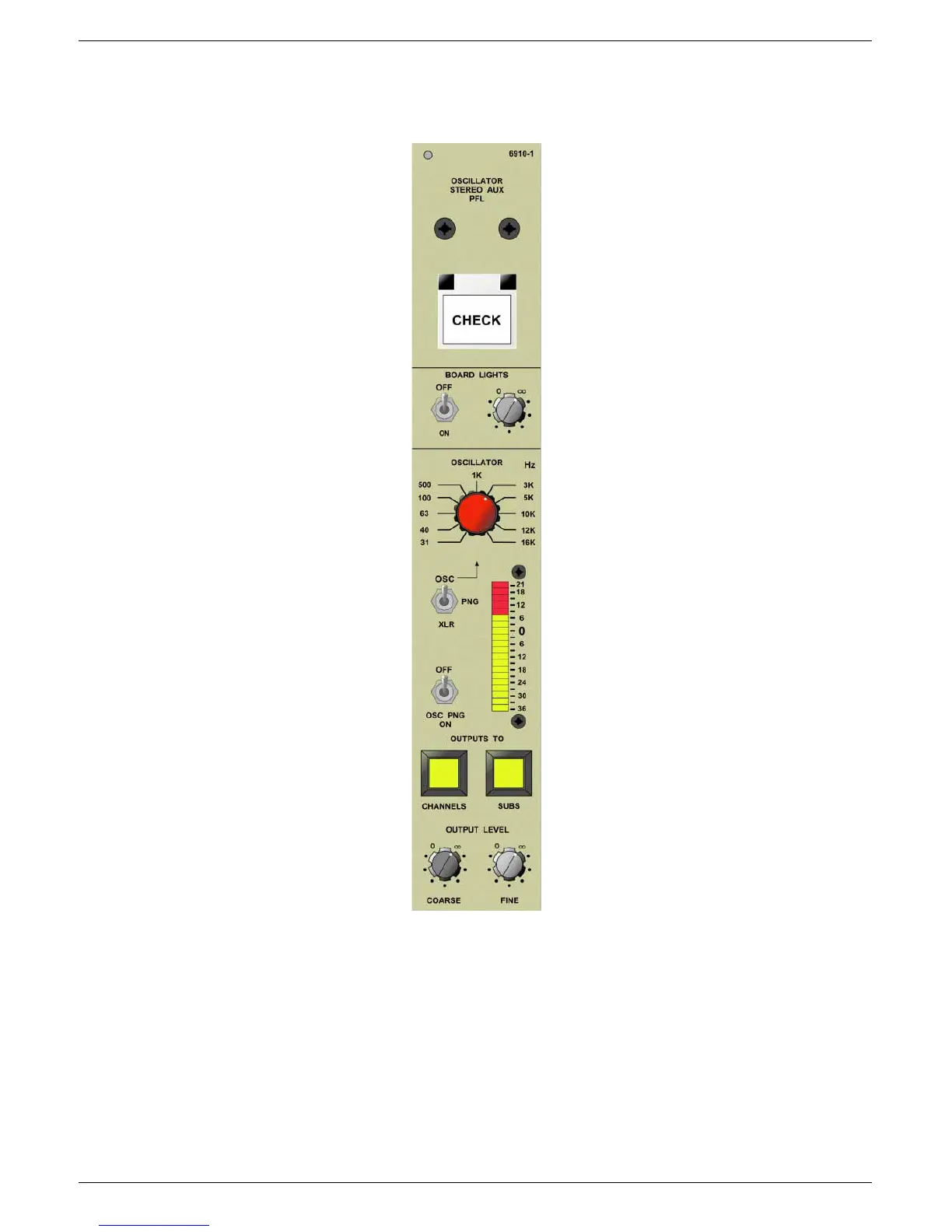

7.1.1 Check-switch
7.1.3 Board light dimmer
7.1.4 Sine Wave Oscillator Fre-
quency select
7.1.6 Oscillator O/P level meter
7.1.9 Output to Subs
7.1.10 Output level Fine
7.1.2 Board lights On/Off
7.1.5 Oscillator Source select
7.1.7 OSC/PNG on/off
7.1.8 Output to channels
7.1.10 Output level Coarse
To Next Page
