6910 Oscillator, PFL & Stereo Aux module 7-7
Revision J2005-2 J-Type

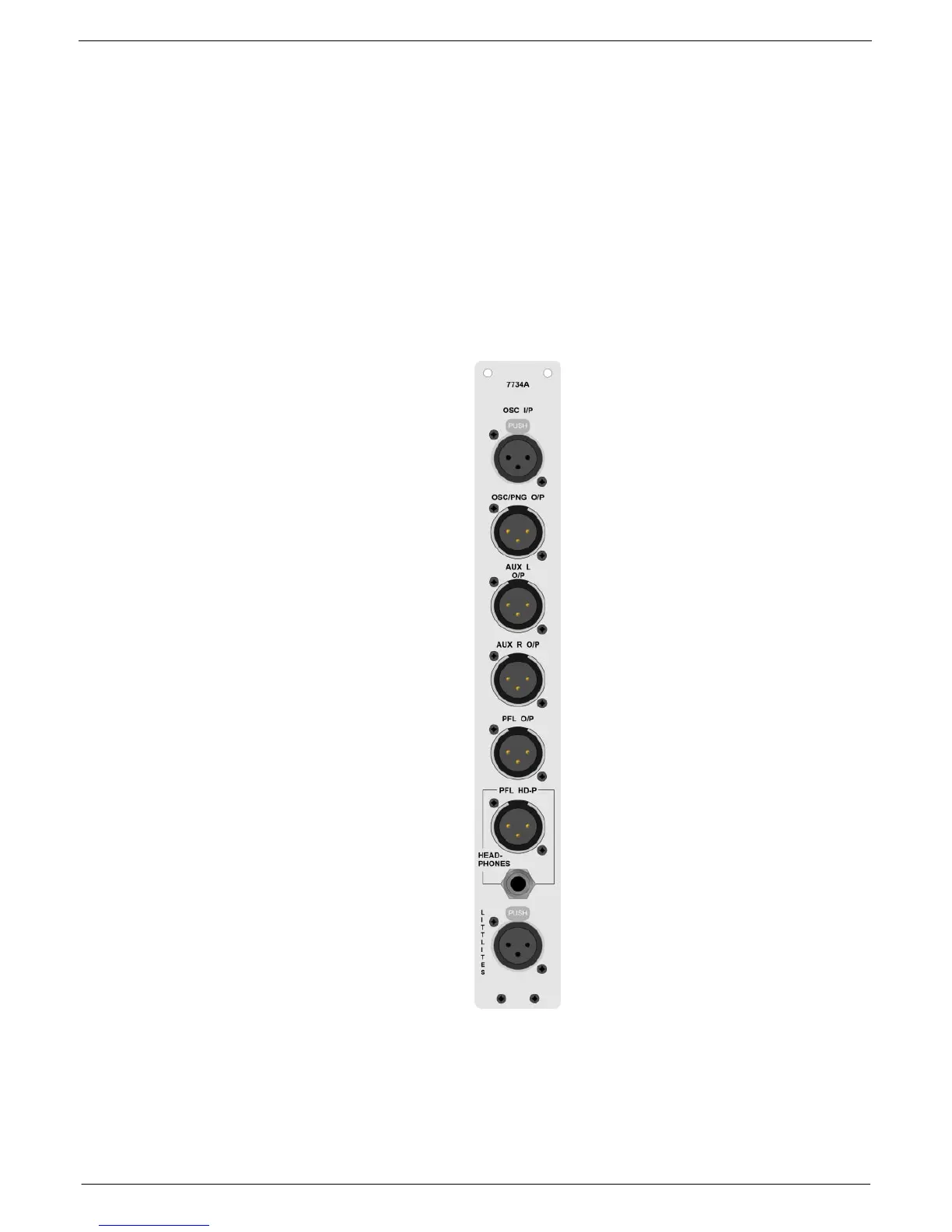

:14154 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#
Osc Input
Input on XLR 3-31 connector for line level sources (unbalanced).
Aux Outputs
Balanced output from the module, delivered to XLR 3-32 connectors.
PFL Direct Output
Balanced PFL output.
PFL HD-P
Stereo output for headphones.
Littlites
Supply voltage for console littlites.
Important note:
Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
OSC INPUT
OSC/PNG OUTPUT
AUX LEFT OUTPUT
AUX RIGHT OUTPUT
PFL DIRECT OUTPUT
PFL HEADPHONES
LITTLITES
