7-12 7974 Oscillator, Comms & PFL module
J-Type Revision J2005-2
:15144 31*
Press this button to select the Pink Noise Generator ‘on’ and the OSC or XLR OFF.
This button has priority over the XLR button.
:15145 ;/5
Press this button to switch the XLR input on the rear of the module ‘on’ and the OSC
OFF.
:15146 2XWSXW#WR#6XEV
Press the SUBS switch to route the oscillator or the Pink Noise generator to all Sub
Groups.
:15147 2VFLOODWRU#OHYHO#&RDUVH#DQG#)LQH
Fine and coarse oscillator level controls for accurate test signal calibration.

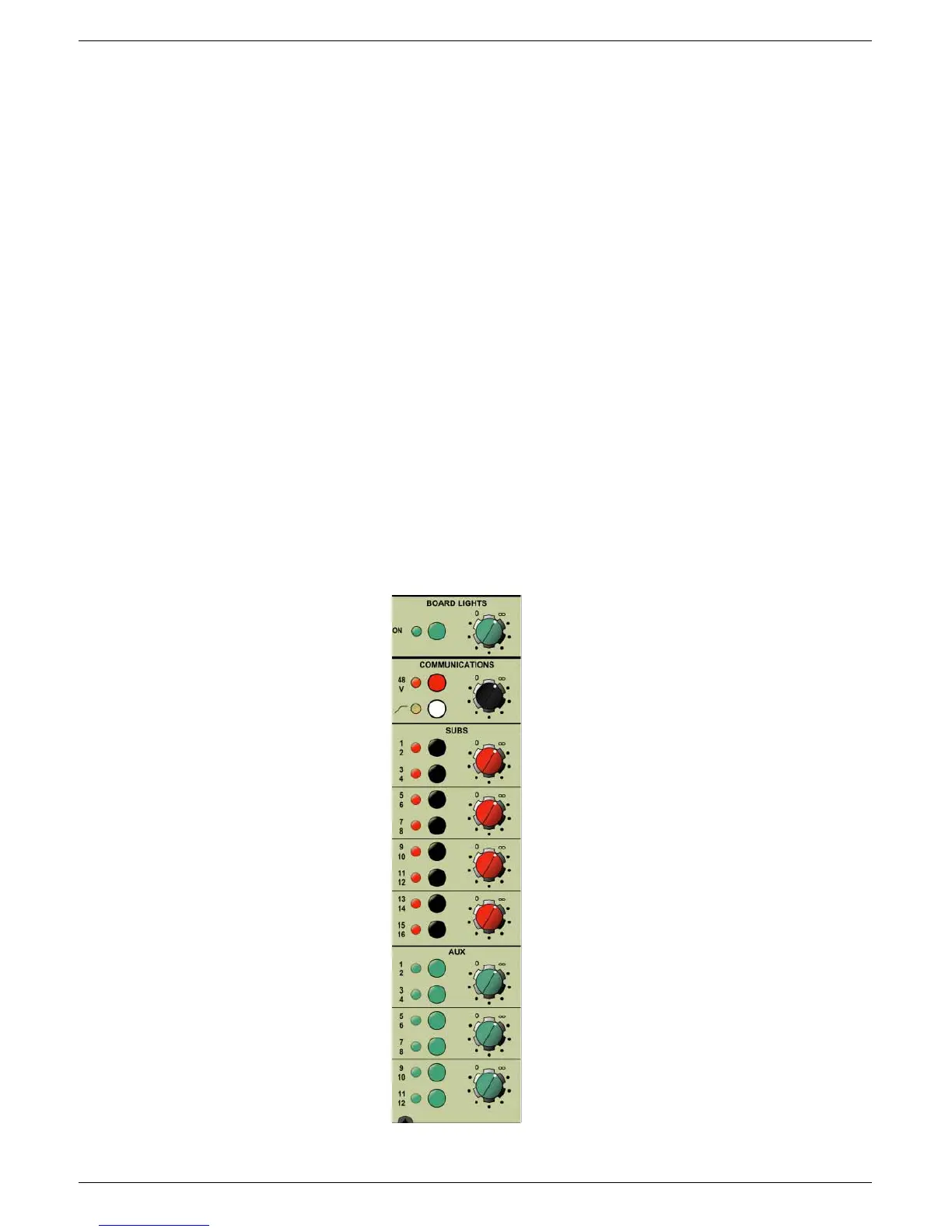

:<:7#2VFLOODWRU/#&RPPV#)#3)/#PRGXOH
7.2.15 Board lights ON
7.2.17 Phantom power ON
7.2.18 High Pass filter ON
7.2.20 Routing to Subs ON/OFF
7.2.22 Routing to Aux ON/OFF
7.2.16 Board light dimmer
7.2.19 COMMS microphone Gain
7.2.21 Send level to Sub Groups
7.2.23 Send level to Aux Groups
To Next Page
