Cadac J-Type - Page 16

1-8 Connecting the mixer systems
J-Type Revision J2005-2
300R
300R
18V
“START” MOMENTARY PUSH BUTTON
VIEW FROM SOLDER
CUP/TAG SIDE
OVER
TEMPERATURE
POWER FAILURE
5
9
4
8
3
2
6
1
7

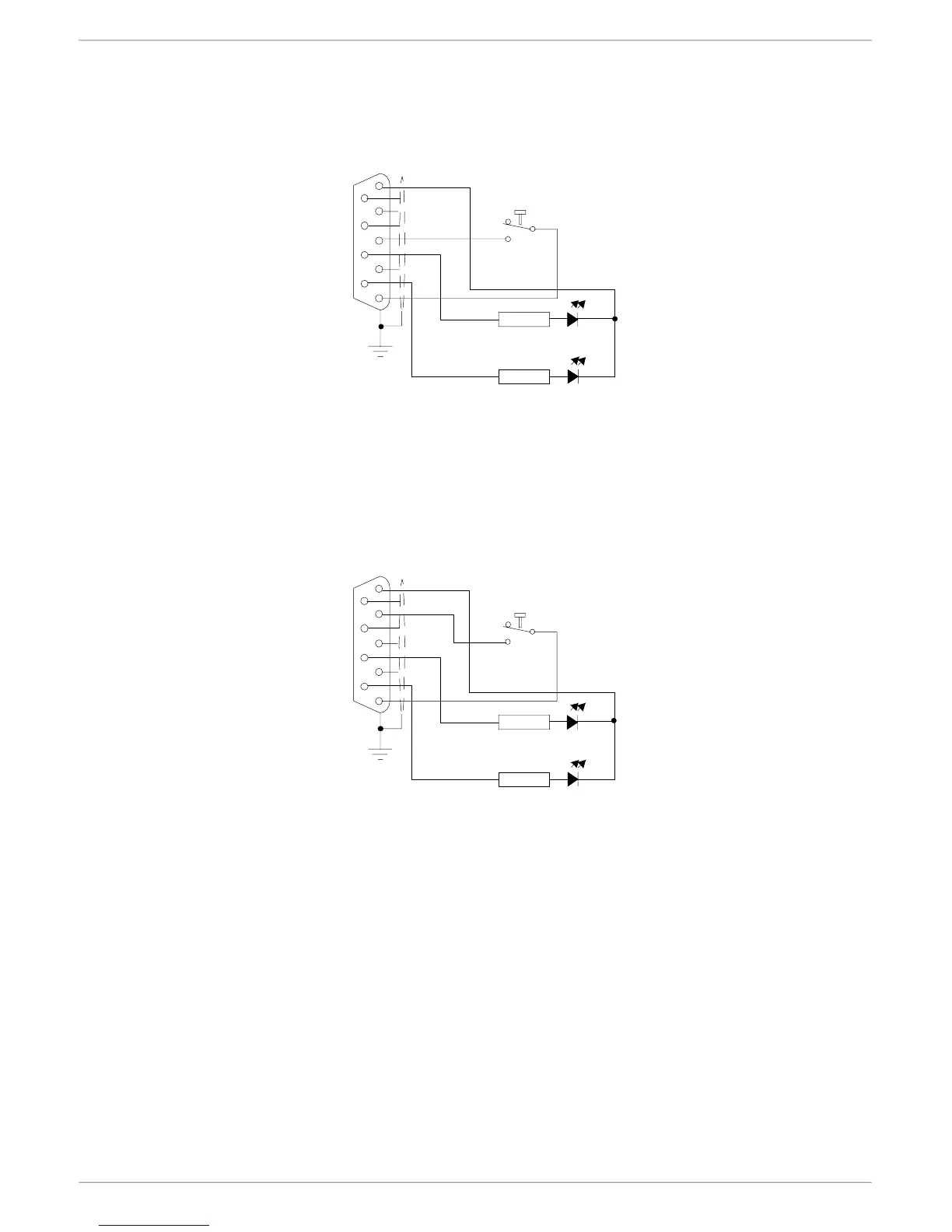

FIG 1-8. Remote start of 8019 PSU
(from serial number 34950)
300R
300R
13V
“START” MOMENTARY PUSH BUTTON
VIEW FROM SOLDER
CUP/TAG SIDE
OVER
TEMPERATURE
POWER FAILURE
5
9
4
8
3
2
6
1
7
FIG 1-9. Remote start of 8020 PSU
(from serial number 34950)
