8-2 7934 Stereo VCA Fader
J-Type Revision J2005-2
;14 :<67#6WHUHR#9&$#)DGHU
;1414 087(
Programmable MUTE button mutes all the pre and post fader sends and routing.
Only AUX is muted if AUX VCA is ON.
;1415 +H[DGHFLPDO#GLVSOD\
Display indicating DC Group assignment.
;1416 $X[#9&$
Aux from VCA can be set to ‘on’ or ‘off’ with this push-button or by programming as
part of a cue. When Aux VCA is ‘on’, the associated LED will light up.

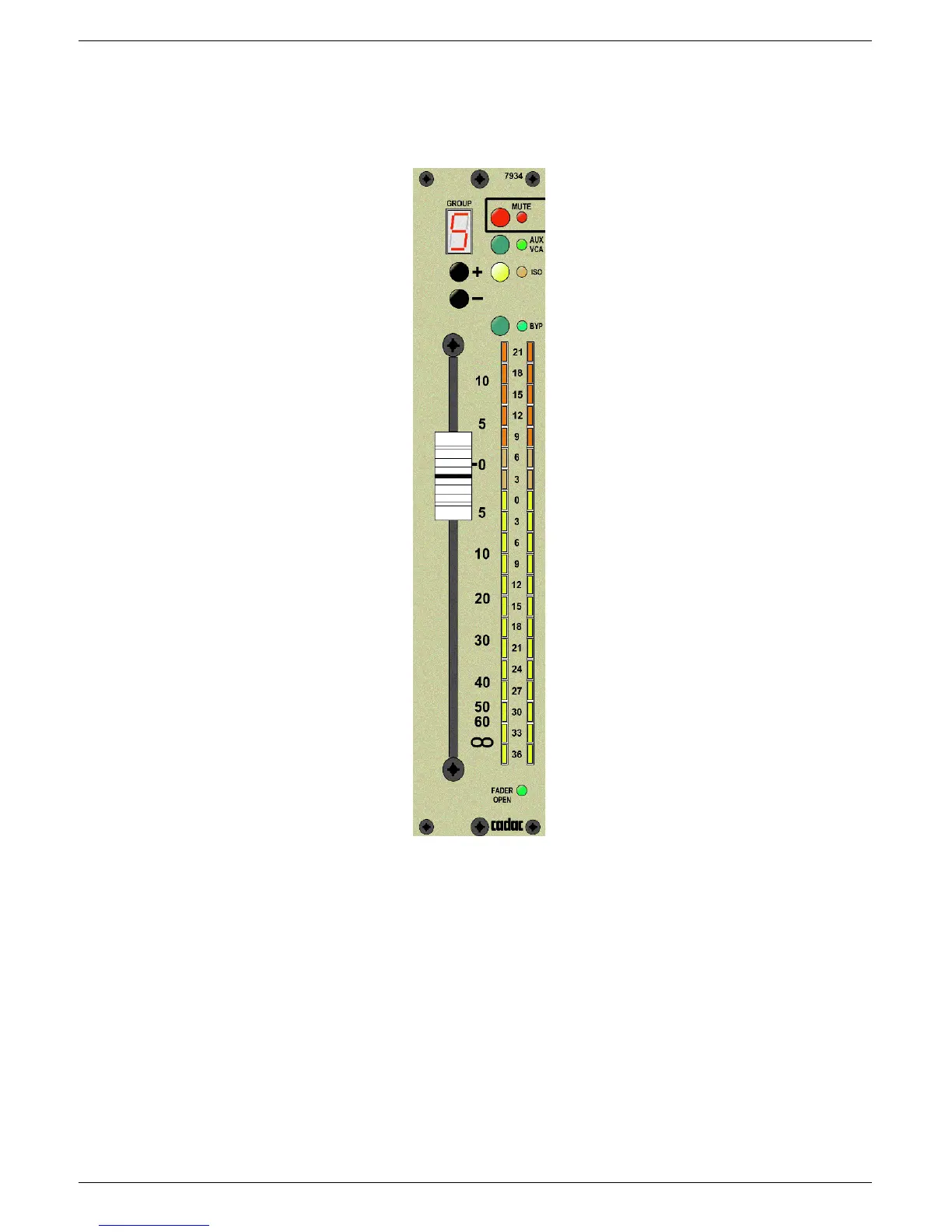

8.1.1 MUTE
8.1.3 Aux VCA
8.1.5 Isolate
8.1.6 By-pass
8.1.8 LED meters
8.1.9 Fader Open
8.1.2 Hexadecimal
display
8.1 4 Group selection push-
buttons
8.1.7 Fader
To Next Page
