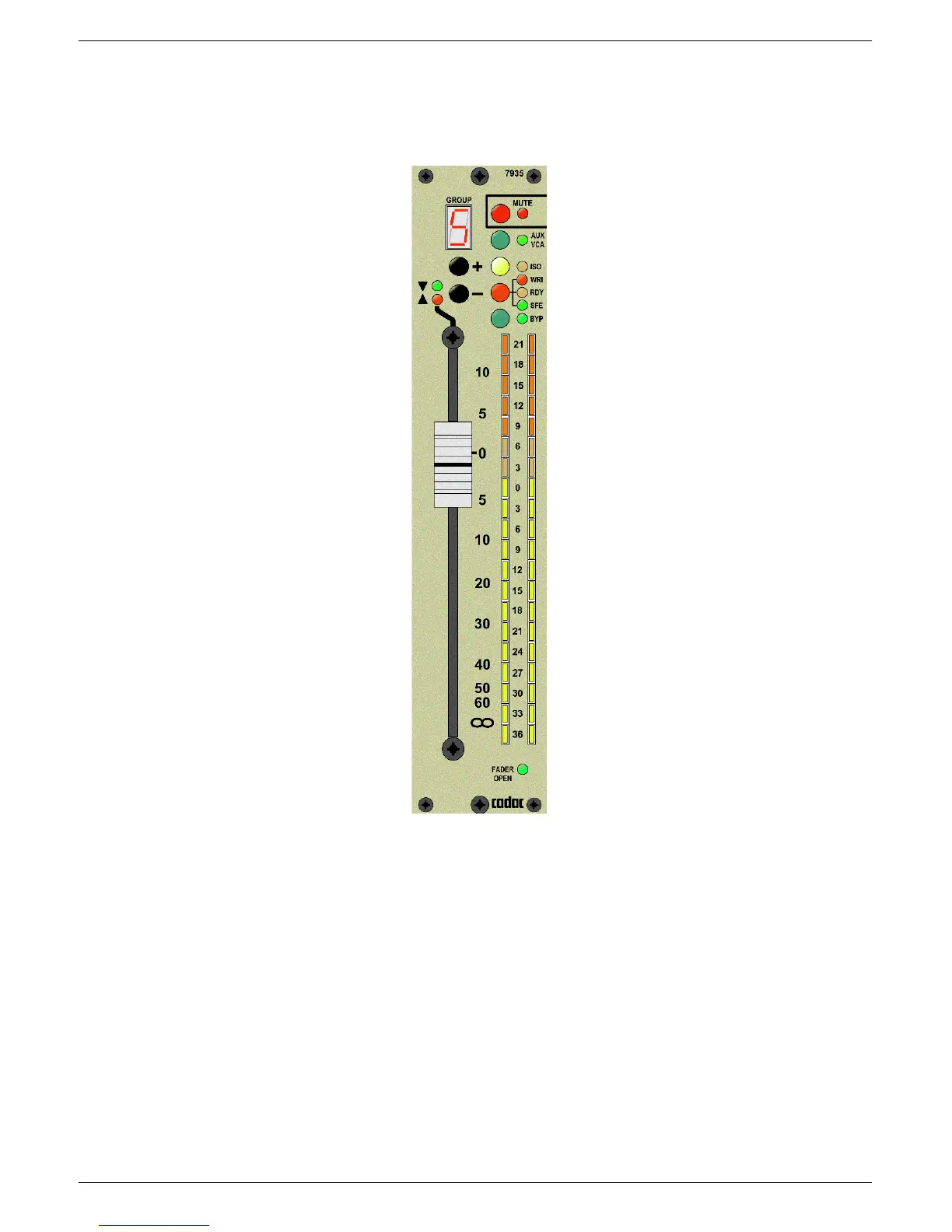

8-4 7935 Stereo Input Motor fader
J-Type Revision J2005-2
;15 :<68#6WHUHR#,QSXW#0R WRU#IDGHU
;1514 087(
Programmable MUTE button mutes all the pre and post fader sends and routing.
Only AUX is muted if AUX VCA is ON.
;1515 +H[DGHFLPDO#GLVSOD\
Display indicating DC Group assignment.
;1516 $X[#9&$
Aux from VCA can be set to ‘on’ or ‘off’ with this push-button or by programming as
part of a cue. When Aux VCA is ‘on’, the associated LED will light up.
8.2.1 MUTE
8.2.3 Aux VCA
8.2.5 Isolate
8.2.6 Write
8.2.7 Ready
8.2.8 Safe
8.2.9 By-pass
8.2.12 LED meters
8.2.13 Fader Open
8.2.2 Hexadecimal display
8.2 4 Group selection push-buttons
8.2.10 Null point LEDs
8.2.11 Fader
