1-14 Connecting the mixer systems
J-Type Revision J2005-2
418 & RQQHFW#&RQVROH#$XWRPD WL RQ#6\VWH P
41814 &RQQHFWLRQV#0#%1&
Figures 1-16 below and 1-11 show how to connect the Séance box to the console
and the computers running SAM., BNC type connection.
41815 (WKHUQHW#0#%1&
The Séance box communicates with the PCs over a 10Base-2 Ethernet connection
via a 50 ohm BNC cable terminated at each end with a 50 ohm terminator. The
Séance box has two BNC connectors for each PC interface, which are wired in paral-
lel inside. A 50 ohm terminator plugs into the BNC socket labelled TERMINATOR
and the Ethernet cable plugs into the BNC socket labelled COMPUTER. A termina-
tor and T-piece are used to connect the Ethernet cable to the PC.

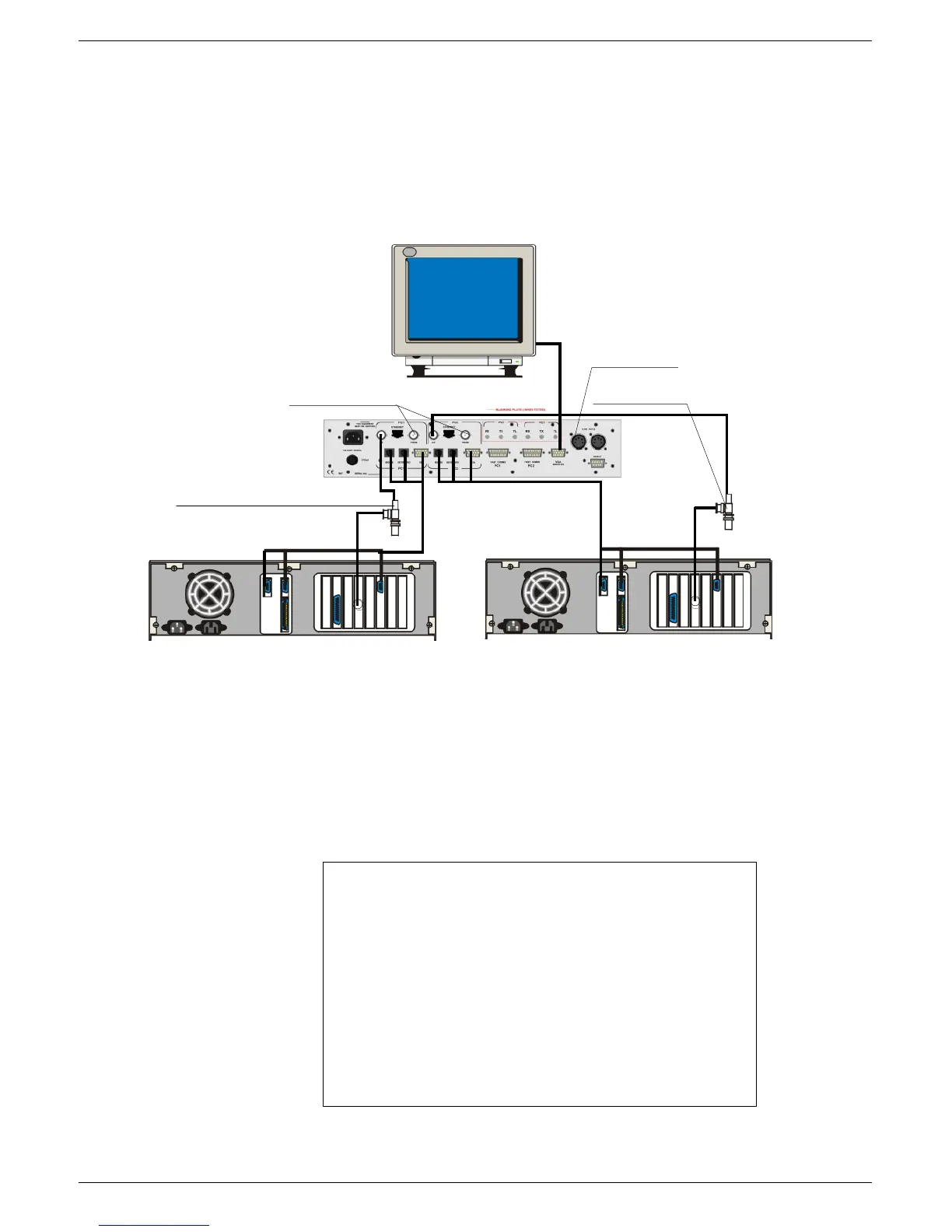

FIG 1-16. Séance rear panel connections for BNC
83#RKP#WHUPLQDWLRQ
(WKHUQHW#WHUPLQDWHG#DW#3&#HQG
0RXVH
.H\ERDUG
9*$
3&4#ZLWK#(WKHUQHW#FDUG 3&5#ZLWK#(WKHUQHW#FDUG
(WKHUQHW#WHUPLQDWHG#DW#3&#HQG
0RXVH
.H\ERDUG
9*$
7R#UHPRWH#3.1
0LQLPXP#VSHFLILFDWLRQ#IRU#D#3&#XVHG#ZLWK#WKH#############
6RXQG#$XWRPDWLRQ#0DQDJHU#6RIWZDUH
To run the Sound Automation Manager software requires a PC with at least the
performance and peripherals as listed below:
PC Pentium 133 or later or compatible computer
Windows ®’95 or later or NT 4.0 or later
Graphics card 1024 x 768 pixels, 16 bit colour or better
Ethernet interface 10Mbit/sec with 10base2 connector (BNC)
32 MB RAM (Windows’98 or NT prefer 64 MB minimum)
20 MB free hard disk space
PS/2 keyboard (older 5-pin DIN keyboard can be used with adapter)
PS/2 mouse or pointing device (9-pin’D’-serial devices cannot be used)
