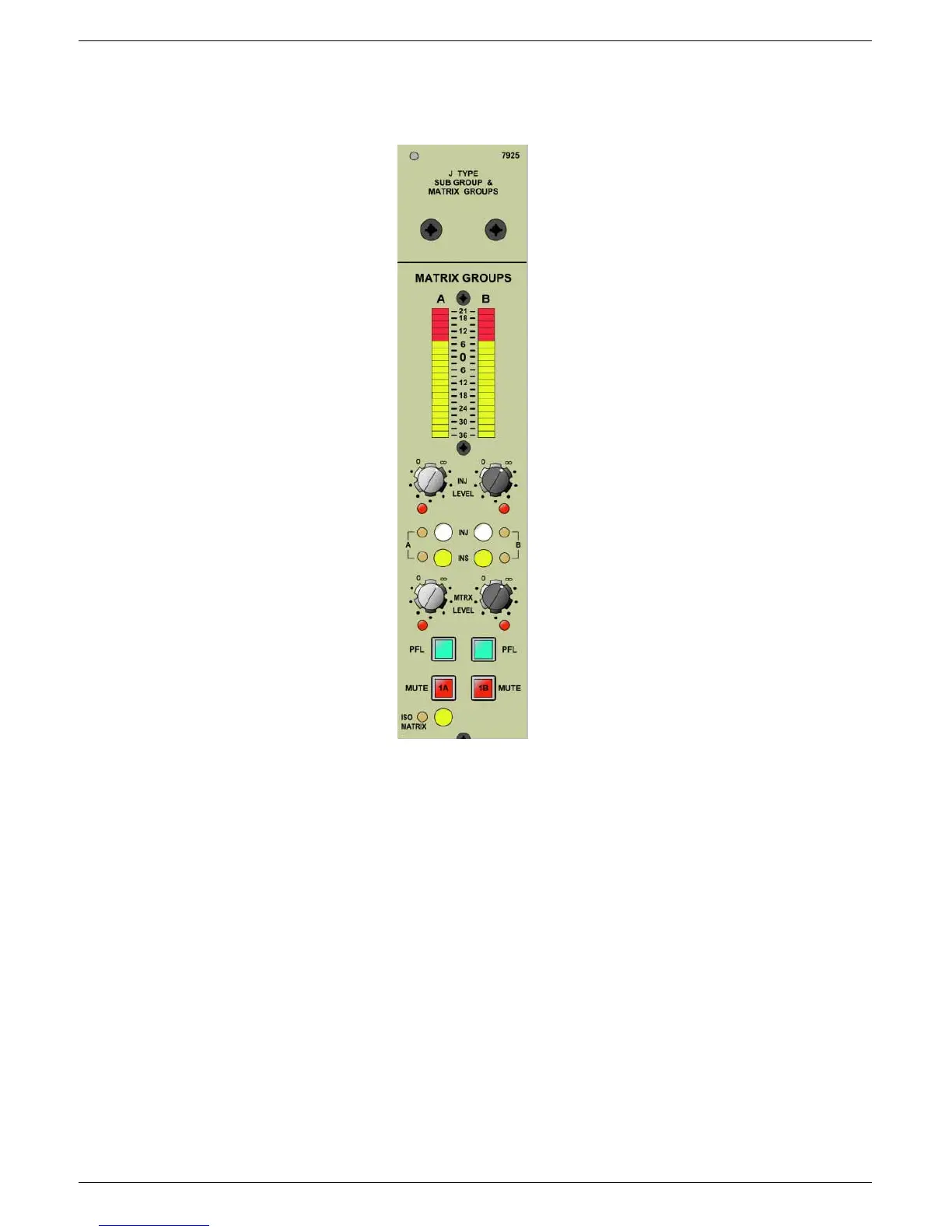

4-2 7925 Programmable Group Module
J-Type Revision J2005-2
71414 0DWUL[#$#22S#/HY HO#0HWHU
A 20 segment LED meter that measures the Matrix output level ‘post’ the Matrix
Level potentiometer.
71415 0DWUL[#$#,QMHFW#/HYHO
Level control for the ‘Inject-to-Matrix-Bus’ input.
71416 0DWUL[#$#,QMHFW#/HYHO#1XOO#/('
The Null LED will be illuminated if the position of the Matrix A Inject pot is different
from the programmed position. To recall the programmed position, rotate the potenti-
ometer until the LED goes ‘out’.
4.1.11 Matrix B O/P Level meter
4.1.12 Matrix B Inject Level
4.1.13 Matrix B Inject Level Null LED
4.1.14 Matrix B Inject On/Off
4.1.15 Matrix B Insert In/Out
4.1.16 Matrix B Output Level
4.1.17 Matrix B Output Level Null LED
4.1.18 Matrix B PFL
4.1.19 Matrix B Mute
4.1.1 Matrix A O/P Level Meter
4.1.2 Matrix A Inject Level
4.1.3 Matrix A Inject Level Null LED
4.1.4 Matrix A Inject On/Off
4.1.5 Matrix A Insert In/Out
4.1.6 Matrix A Output Level
4.1.7 Matrix A Output Level Null LED
4.1.8 Matrix A PFL
4.1.9 Matrix A Mute
4.1.10 Matrix Section Isolate
