7972 Programmable Aux Groups Module 4-11
Revision J2005-2 J-Type
715## :<:5#3URJUDPPDE OH#$X[#*URXS V#0 RGXOH

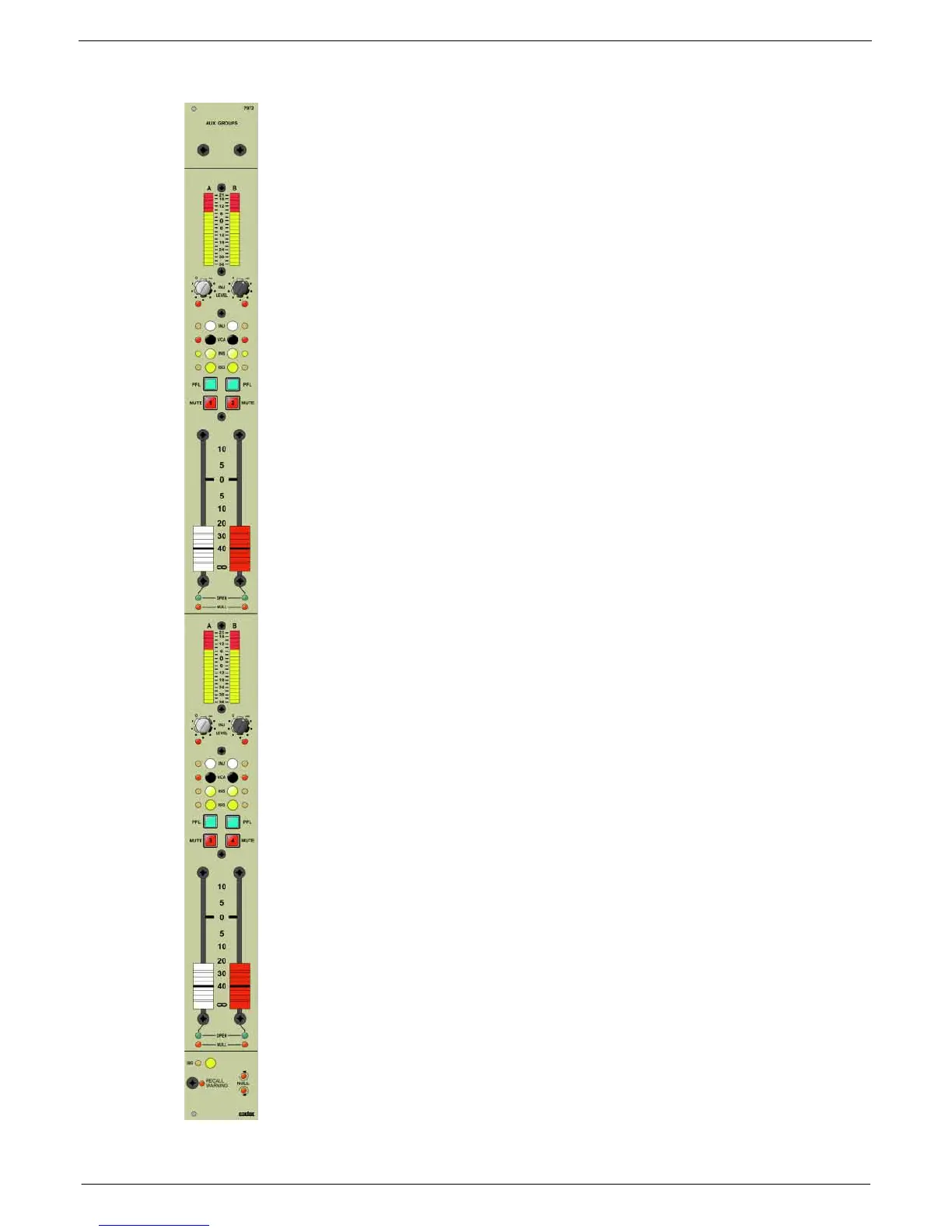

The 7972 Aux group Module is fully programmable. All switch data and potentiometer
position recall data can be saved to and recalled from a cue with the Sound Automa-
tion Manager software.
The module contains four Aux groups labelled 1-4 or 5-8 or 9-12. Each Group has an
Output level fader that can be controlled from a DC Master Fader by pressing the
VCA switch on the module and the fader position can be saved to a cue. The Inject
Input has an On/Off switch, an associated LED and a Level potentiometer. The
INSERT facility enables selection of the INSERT to the Aux Input. They also have
MUTE, PFL and ISO.
