Cafection Encore lite - Main Board Layout

ENCORE LITE Rev. 3 05/2018
13
www.cafection.com 800-561-6162
SERVICE & INSTALLATION MANUAL for Cafection's Encore Lite
The equipment should always be
unplugged from the electrical outlet
before servicing any component on
this main board.
This is a schematic reference
drawing only. Not to scale.

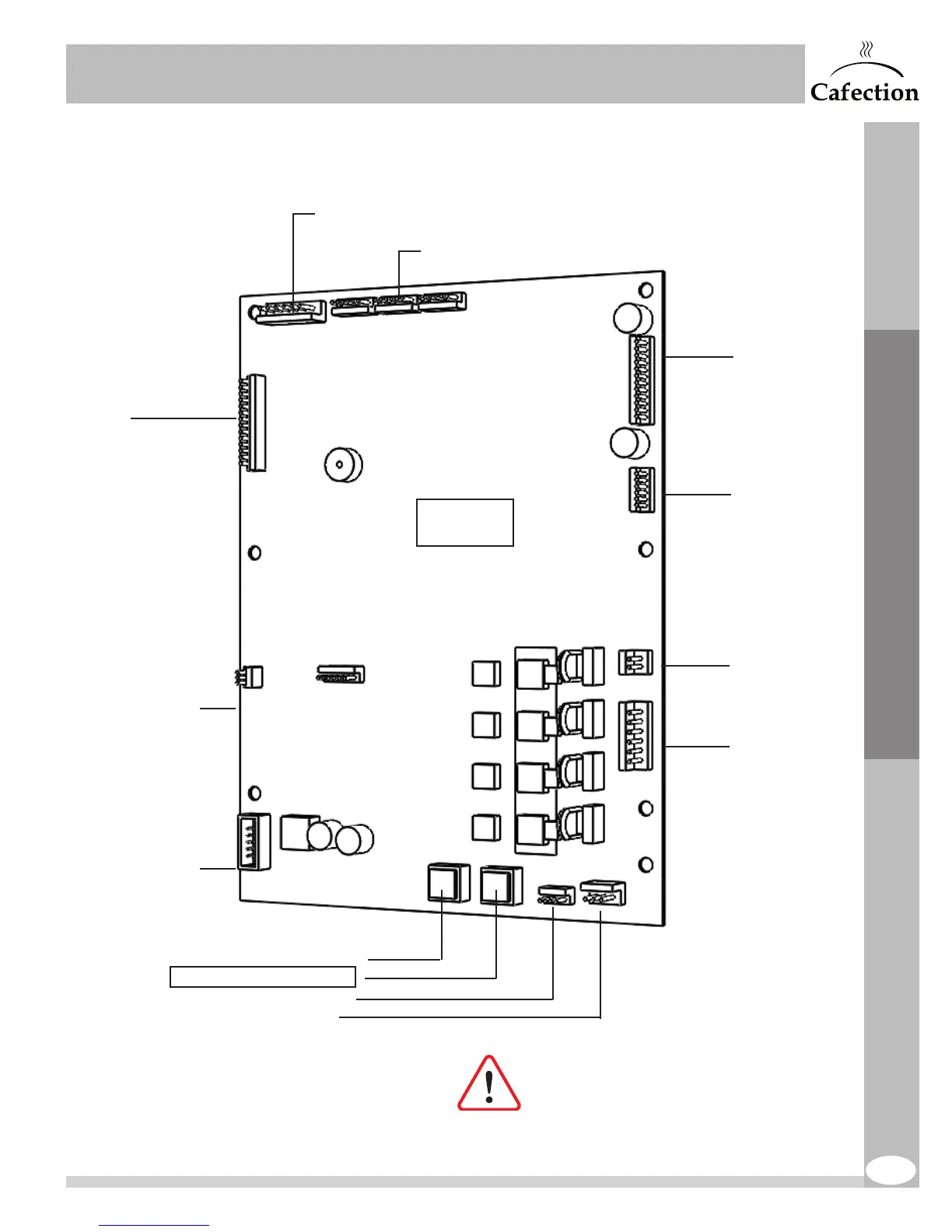

3.6 Main Board
J11 - MDB port - Coin changer / bill acceptor / card reader
J12 - Thermostat board
J22 -
Numeric input
(switches)
J21 - COM port-
Link to touch screen
computer (option 1)
J14 - COM port-
Link to touch screen
computer (option 2)
J18 - 24V DC
output
J6 - 24V DC output - Fan
J2 - 120V AC
input
J19 - 120V AC
output
HIGH VOLTAGE AREA
J3 - 24V DC input
(adjusted to 27V DC)
J27 - 24V DC
output
SW1 - Setup button (white)
SW2 - Service button (black)
Reference Drawings
17ELN01
