3.7 Hot Water Tank
Make sure the equipment is unplugged when servicing.
Access the hot water tank by removing the back panel.

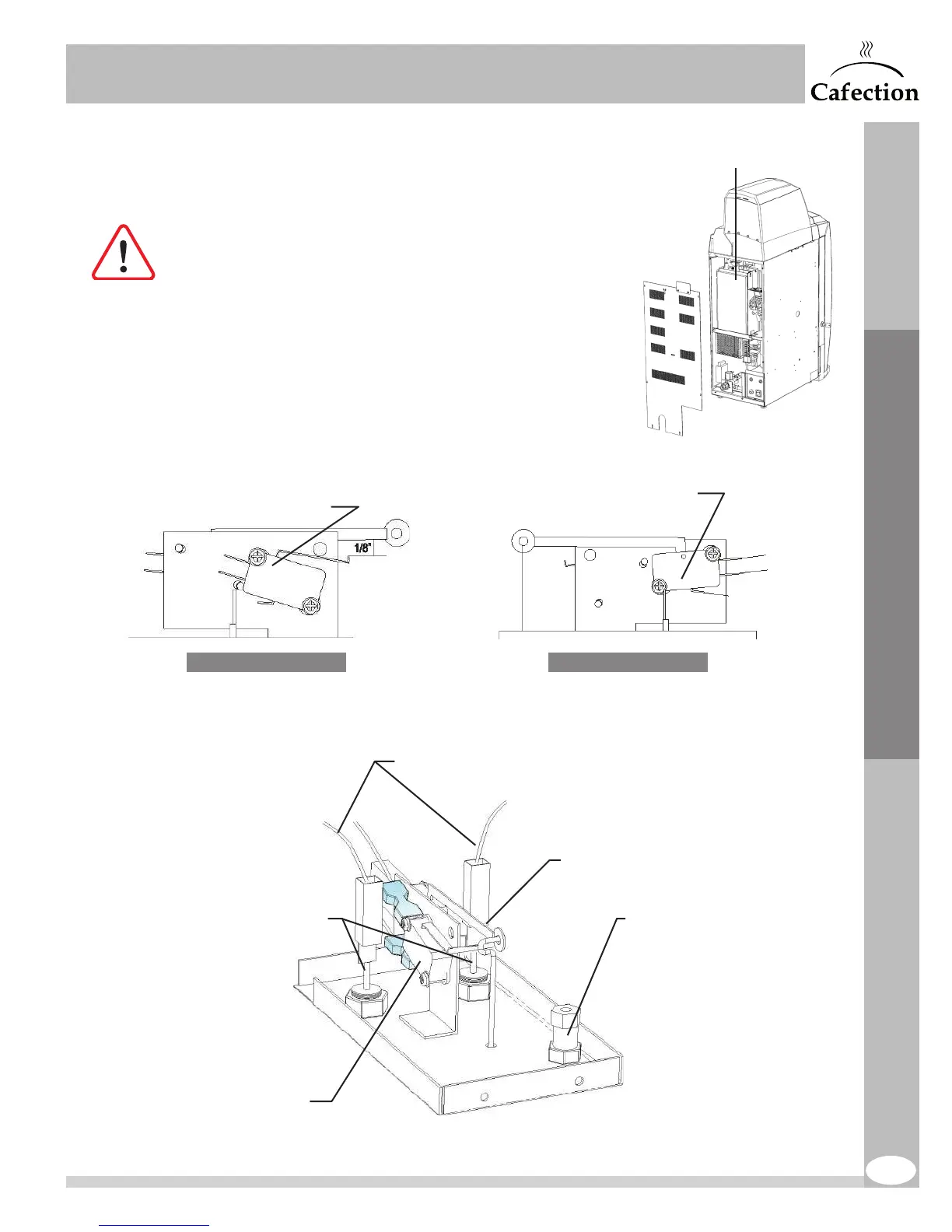

See images below for tank lid details.
See section8.4 for preventive maintenance.
Heater safety
switch
Water level switch
(float)
Heating element wire
Heater safety switch
Left Side View
Water level switch (float)
Right Side View
Probe
Heating element
connector
Reference Drawings
Water tank
