CAIRE Eclipse 5 with autoSAT - Eclipse 5 System Introduction; Front View Component Identification; Back View Component Identification

Oxygen Concentrator Technical Service Manual | PN 20631679 Rev G
6

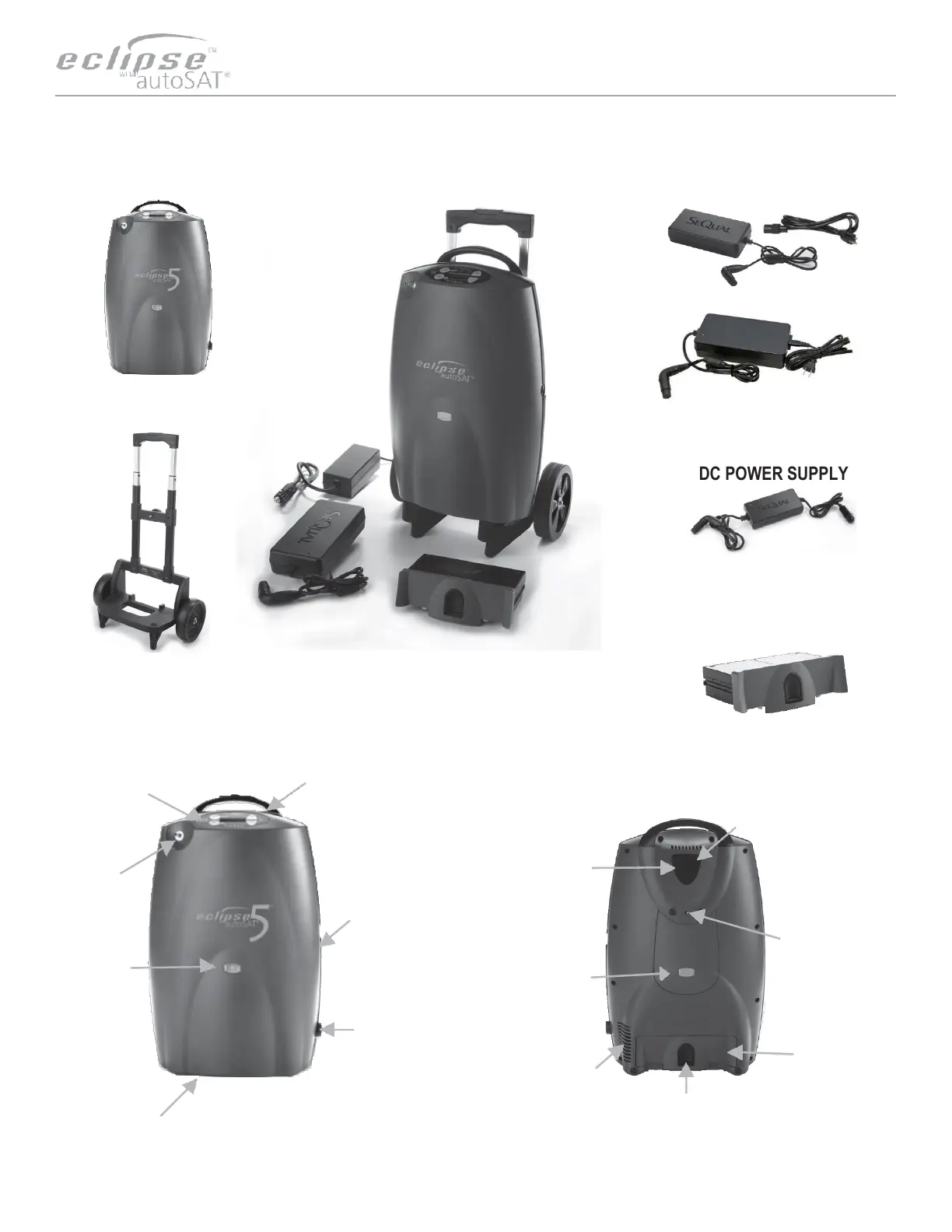

INTRODUCTION TO THE ECLIPSE 5 OXYGEN SYSTEM
ECLIPSE 5
AC POWER SUPPLY
WITH NEMA POWER CORD
PN: 5941-SEQ (three LED model)
UNIVERSAL CART
PN: 5991-SEQ
DC POWER SUPPLY
PN: 5942-SEQ
POWER CARTRIDGE
(BATTERY)
PN: 7082-SEQ
PN: 20852326S (with IEC type A cord), 20852325S
(with IEC type C cord), and 20852324S (with IEC
type G cord) (two LED model)
Oxygen
Outlet Port
Control Panel
FAA
Approval
Icon
Rating Label &
Serial Number
Location
Power Cord
Retainer
External Power
Receptacle
Handle
FRONT
FAA
Approval
Icon
Air Inlet
Filter
EDAT Service Port
(Not for Patient Use)
Cart
Attachmen
t Location
Power
Cartridge
(battery)
Exhaust Vent
Power Cartridge Latch
BACK
