CAIRE Eclipse 5 - Control Board Connector Diagram

Personal Ambulatory Oxygen System Provider Technical Manual
73
PN 20631679 Rev D
CONTROL BOARD CONNECTOR DIAGRAM
Use the gure below as an aid to ensure proper connection of wire harnesses to the Control System printed circuit board.

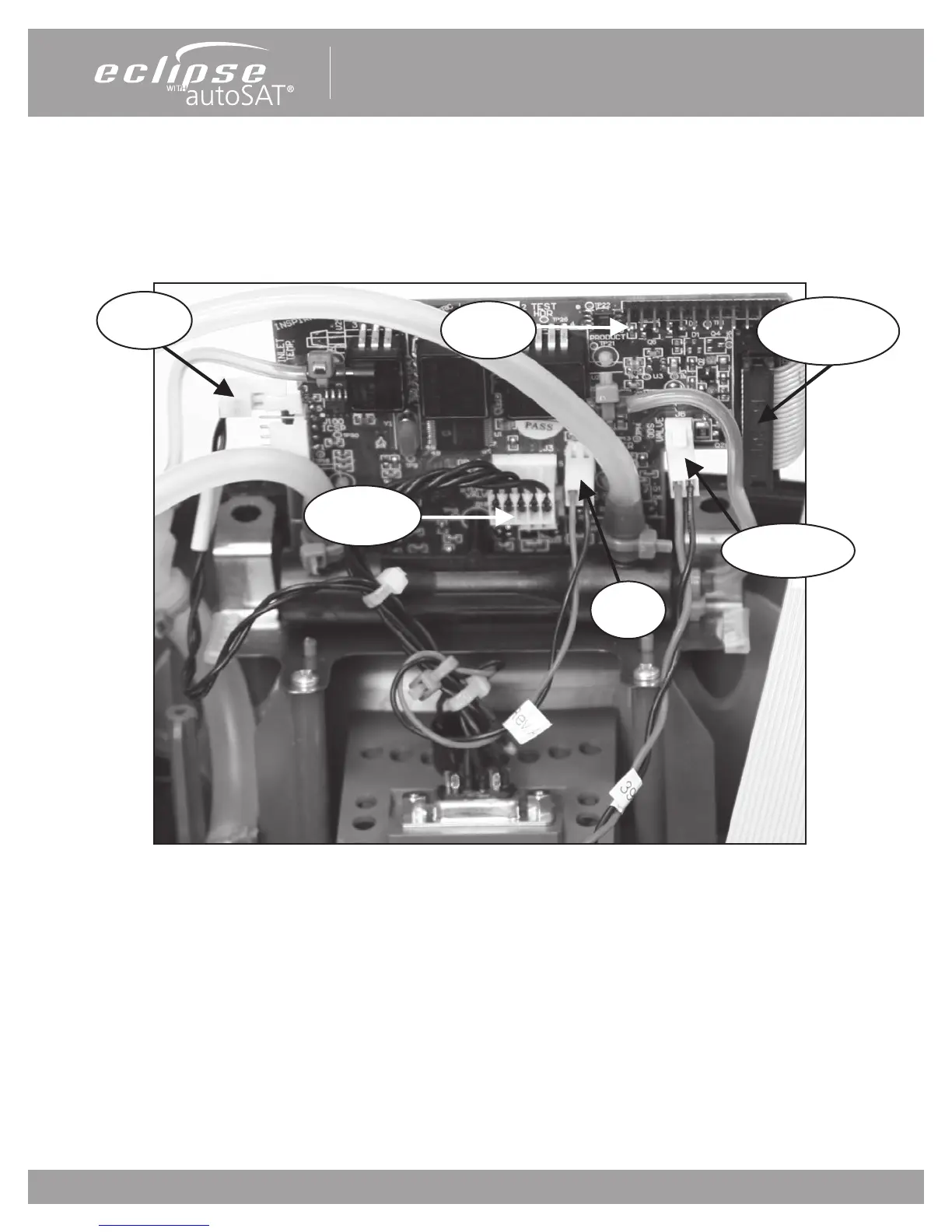

Figure 46: Control Board Connector Diagram
Buzzer
Connector
Air Inlet
Temperature
Data
Communications
Port
Power
Manager PC Board
Communications
Proportional
Valve Connector
Control
Panel
