CalDigit Thunderbolt Station 2 - CalDigit Thunderbolt Station 2 Specifications; Interface Specifications List; Power Specifications; System Requirements Recap

12

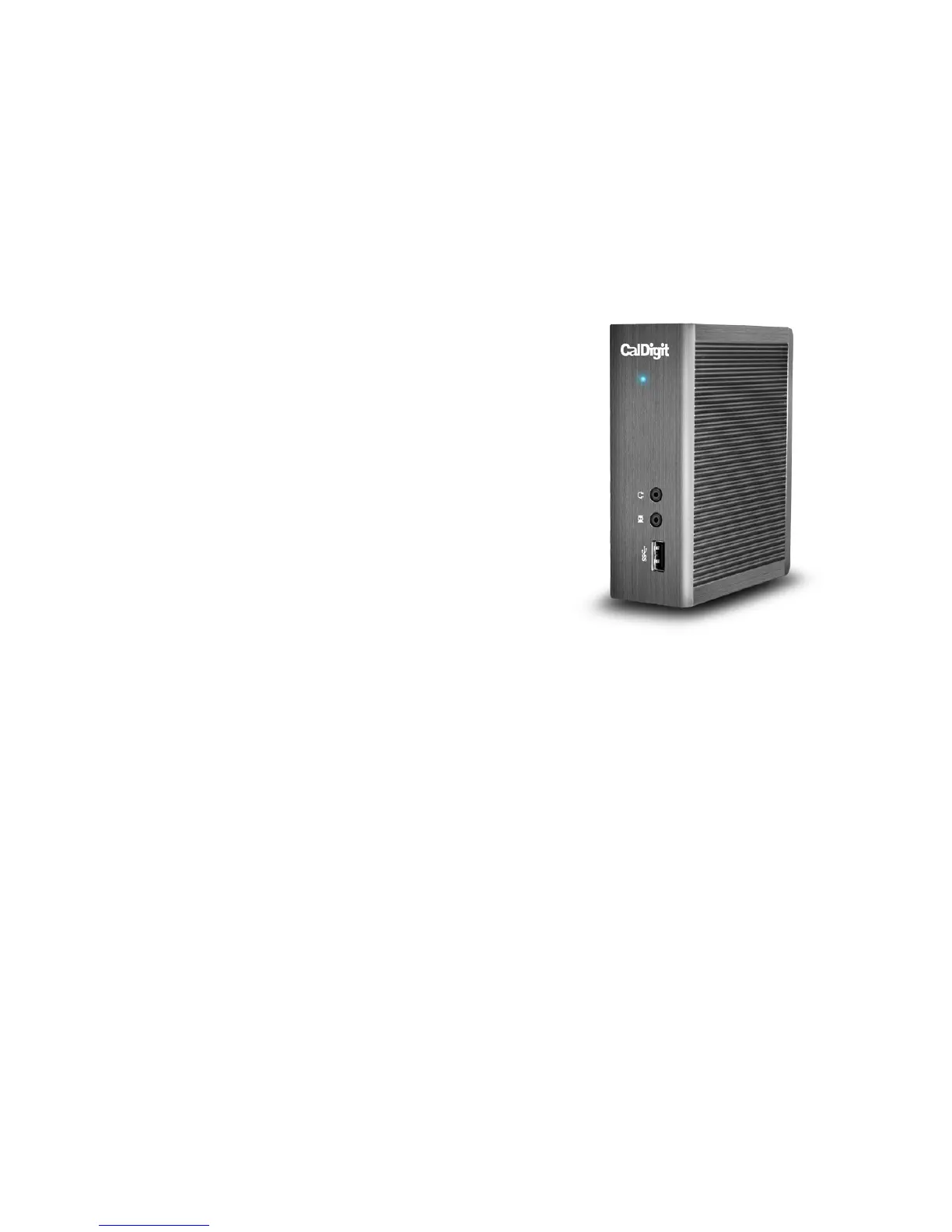

CalDigit Thunderbolt™ Station 2 Specications
Dimensions and Weight
• Height : 4.92 inches (125.0 mm)
• Width : 1.71 inches (43.5 mm)
• Depth : 3.88 inches (98.5 mm)
• Weight : 1.34 lbs (0.61 kgs)
Interface
• 2 x Thunderbolt™ 2 Ports
• 1 x HDMI Out
• 1 x Gigabit Ethernet
• 3 x USB 3.0 (1x Front, 2x Rear)
• 2 x eSATA 6G Ports
• 1 x Headphone Out
• 1 x Microphone In
Power
Full range AC Input:
100V-240V ~ 50/60Hz 1.5A max
DC Output: DC 12V/5.0A
EMC: CE, UL, GS, CCC, FCC, CS, BSMI, PCT, ETL, PSE
System Requirements
Thunderbolt™ enabled computer
Windows 7 & Windows 8
Mac OS X 10.8.4 or later
Environment
Ambient Operating Temperature: 32°F ~ 158°F (0°C ~ 70°C)
