 Time Zone
The S320 OCS has two IP interfaces—eth0 and eth2—each with its own identity. Mapping of
the interfaces in the hardware is as follows:
 eth0 maps to the LAN B interface on the front of the switch
 eth2 maps to the LAN A interface on the front of the switch
Both interfaces are shown in Figure 8.

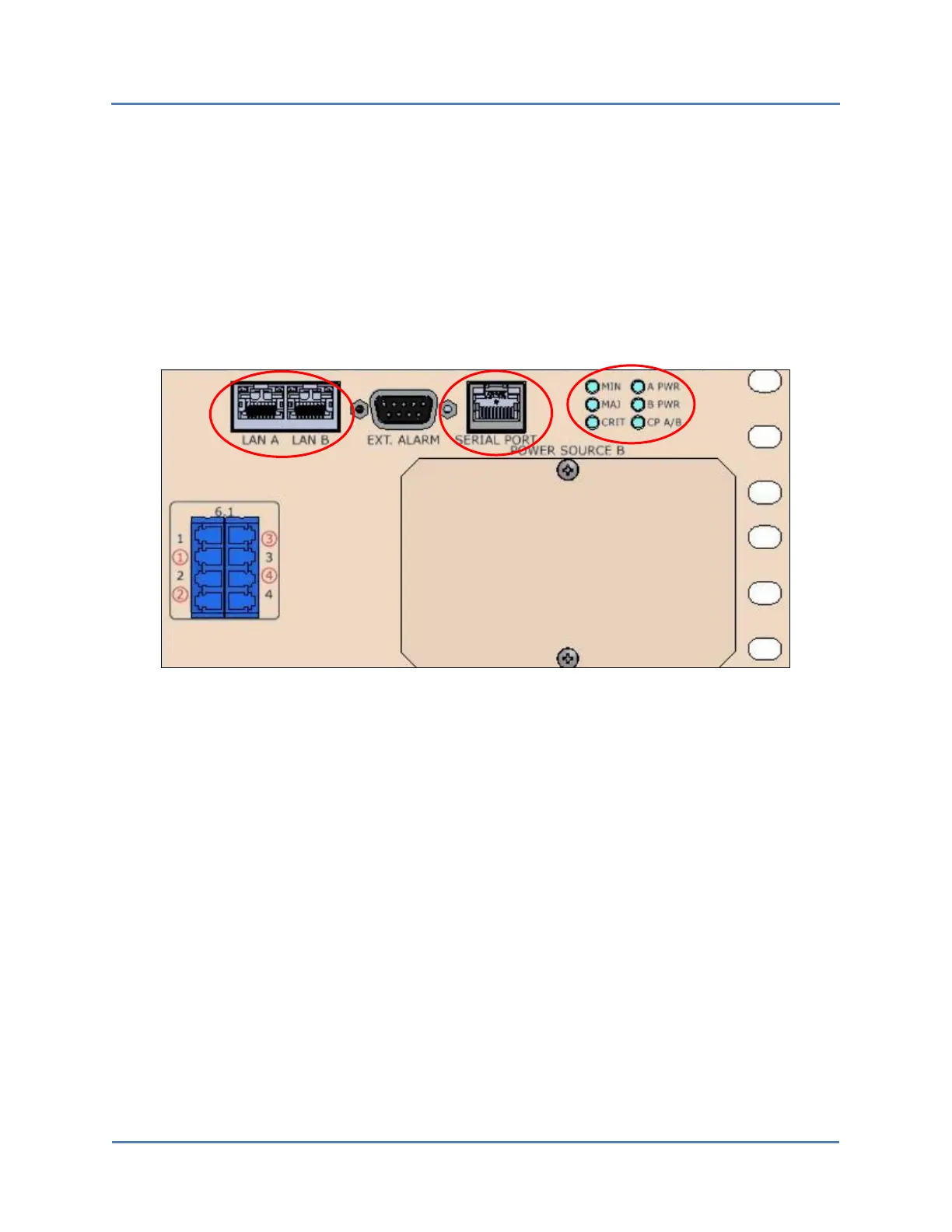

Figure 8 – S320 OCS Serial and LAN Ports (Close Up)
