Calix E7-2 User Manual

88
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.

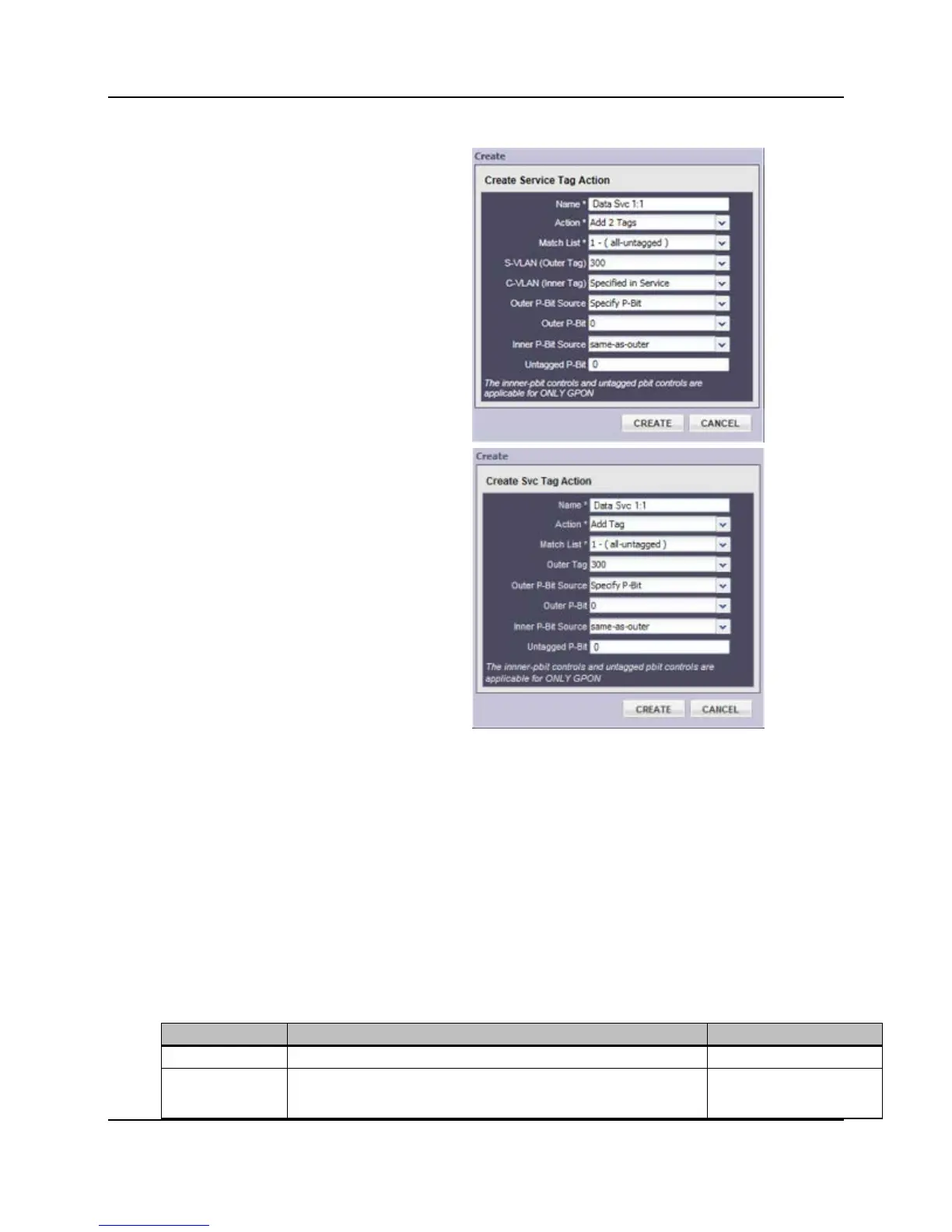

Example service-tag action configurations for data services
VLAN-per-service
Applies the specified service-tag action to the
matched traffic.
Matches all untagged traffic on the xDSL port.
 Adds VLAN ID 300
 Marks with P-bit 0
The upstream traffic on a service VLAN must have
the same P-bit value as is set for downstream
traffic.
VLAN-per-subscriber
Applies the specified service-tag action to the
matched traffic.
Double tags all untagged traffic arriving on the
xDSL port.
 Outer tag is explicitly set to 300
 Inner tagged is defined when adding the service
to a port
 Upstream traffic is marked with P-bit 0
The upstream traffic on a service VLAN must have
the same P-bit value as is set for downstream
traffic.
Before starting
Before starting the service tag action creation process, check that the following conditions are
met:
 All VLANs that are to be specified in the service tag action have already been created.
 The match list that is to be specified in the tag action has already been created.
 The DSCP or IP Precedence values are defined, if using a map other than the system
default.
Parameters
You can provision the following parameters for service tag actions:
Parameter
Description
Valid Options
Name*
Descriptive name of service tag action.
text string
Action* Specifies the tag action to occur. Add Tag, Add 2 Tags,
Change Tag, Add and
Change Tag
