Product+Dimensions
+
'(!ID#..%.!3%N4-.%0-.!

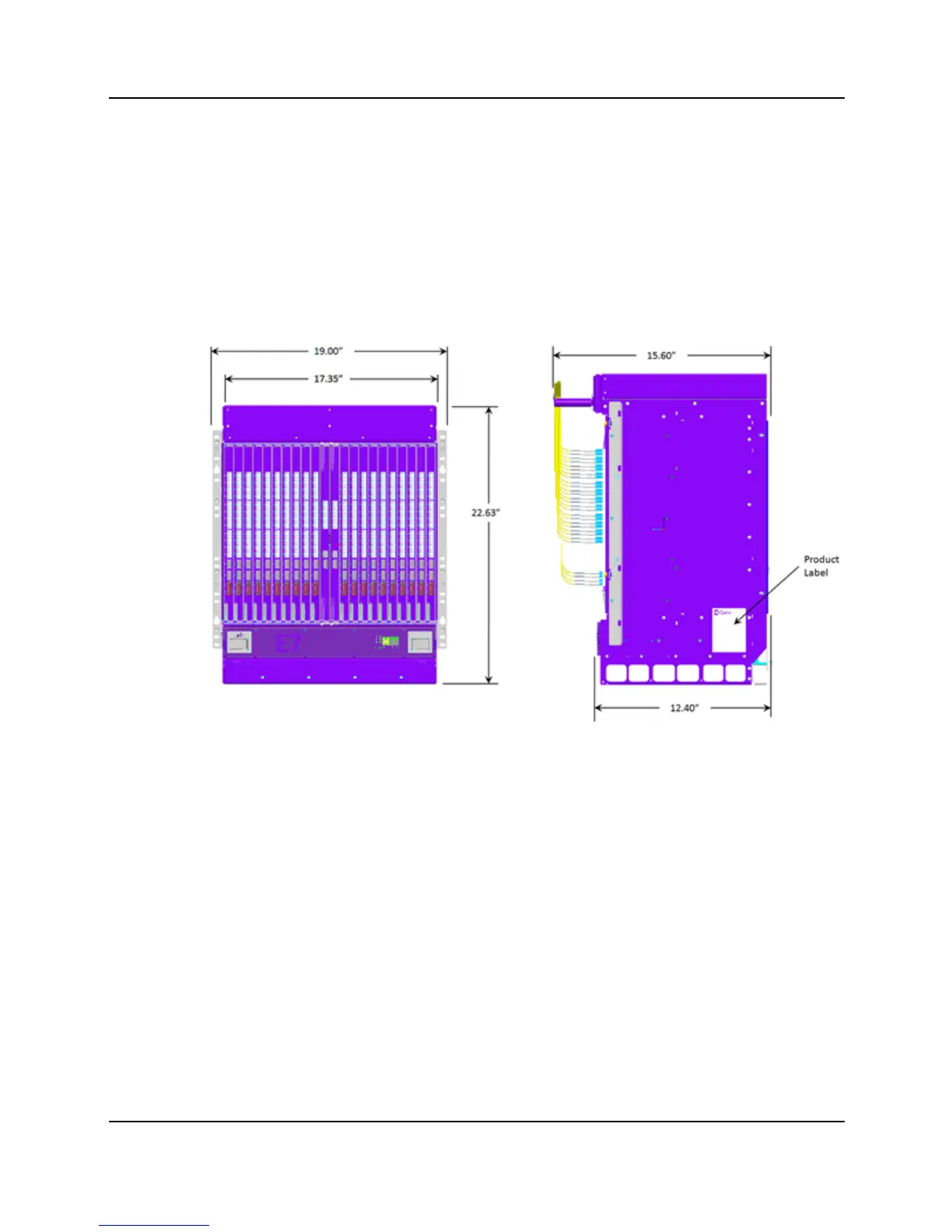

The Calix E7-20 chassis exterior dimensions follow:
!
!
Height: 22.63 inches (57.49 cm)
!
!
Width: 19.00 inches (48.26 cm) with the chassis flanges (default)
!
!
Depth: 15.60 inches (39.62 cm) with the fibers and comb
12
14
