The E7-20 supports synchronization to a local traceable network clock source via timing
inputs located on the E7-20 rear panel. Redundant closk (A and B) inputs are provided. The
E7-20 accepts a standard DSX-level timing source (DS1/T1 format only, not 64 kbps
composite clock format) and should be set to ESF/B8ZS. Wire the E7-20 timing inputs to a
Building Integrated Timing System (BITS) clock source using shielded cable.
Calix recommends providing traceable clock synchronization for E7-20 GPON applications
when T1/E1 Differential clock Recovery is required.
You can link up to ten collocated E7-20 shelves to share a BITS timing input. Calix offers a
connectorized daisy-chain BITS cable, or you can wire-wrap the individual daisy-chain links
C0!K%74!/D4!T,CP!/%N%-L!%-F2/!%-/47Q#I4!
9A! Get up to two 24 AWG shielded 2-wire cables of sufficient length to reach the local
BITS clock interface from the E7-20. Use one cable to provide a single timing input (A
only), or two cables for a redundant input (A + B).
*A! Strip approximately one inch of insulation from the wire ends.
:A! Wire the E7-20 external timing input(s) as follows:

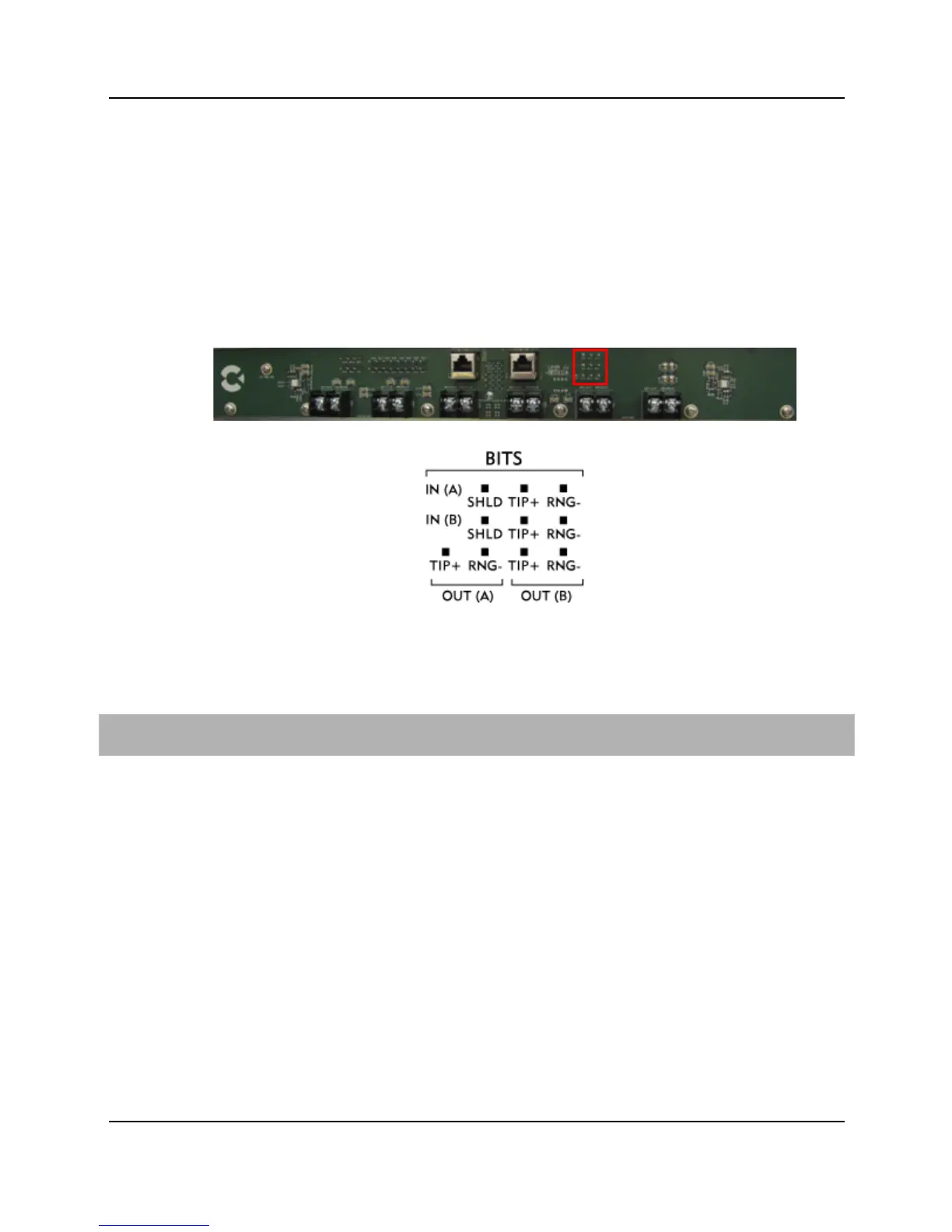

a.! Connect the timing wires to the E7-20 BITS IN (A) input position:
!! Wrap the positive (tip) wire to the TIP+ pin.
!! Wrap the negative (ring) wire to the RNG- pin.
!! Wrap the cable shielding to the SHLD pin.
b.! To provide a redundant connection to the BITS clock source, repeat Step 3a to wire
the E7-20 BITS IN (B) input position, as required.
